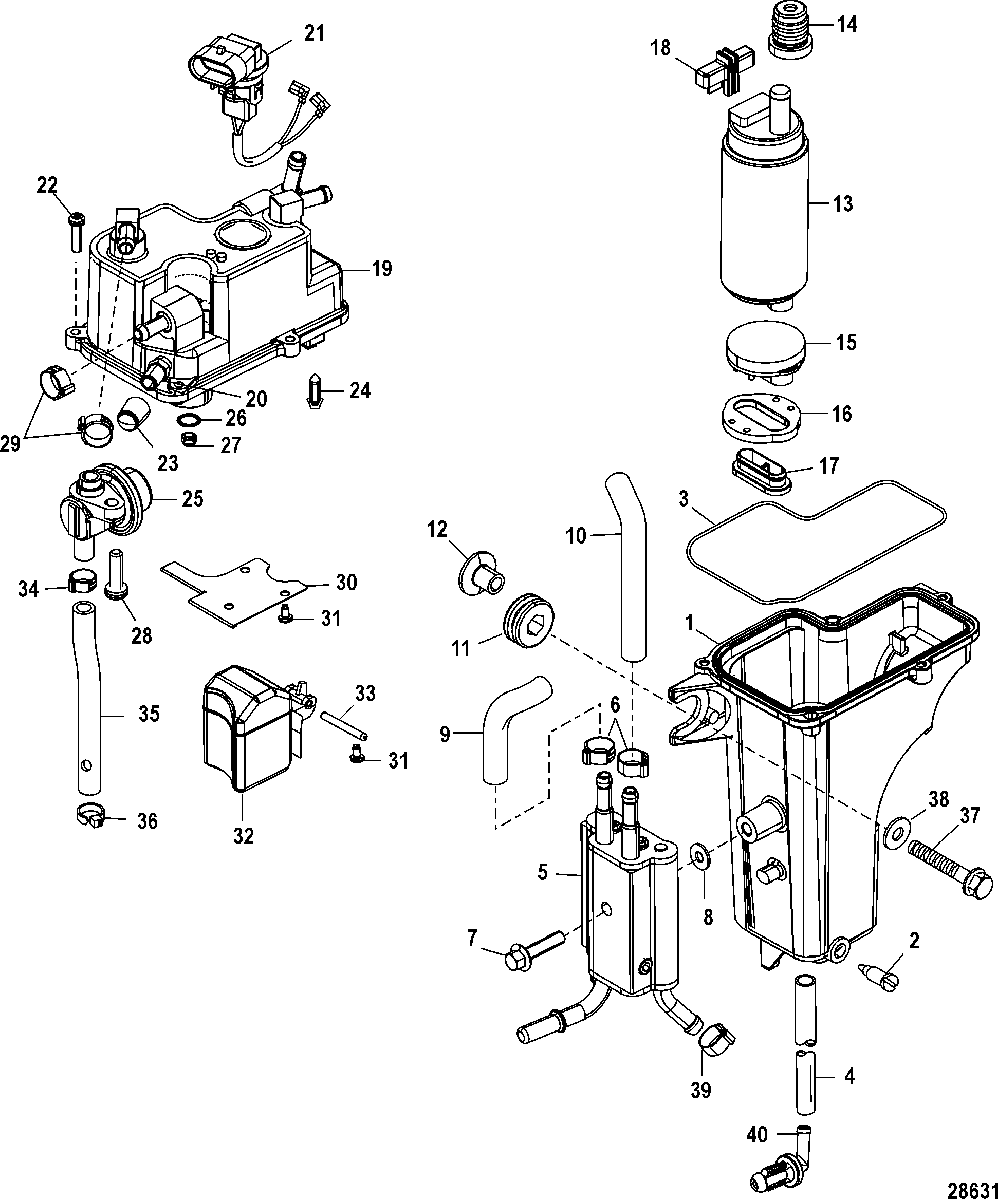

Vapor Separator для Mariner - 30 EFI (3 CYL.)(4-STROKE) 1C109093 & Up
-
№АртикулНазвание
-
-892267T03 VAPOR SEPARATOR ASSEMBLYVAPOR SEPARATOR ASSEMBLY
-
1892267A54 BODY ASSEMBLYBODY ASSEMBLY
-
210-892267506 SCREW, DrainSCREW, Drain
-
325-892267530 O-RINGO-RING
-
432-8M0054213 HOSE, (40.00 Inches Bulk), Cut to 9 InchesHOSE, (40.00 Inches Bulk), Cut to 9 Inches
-
5892267A55 COOLER ASSEMBLY, FuelCOOLER ASSEMBLY, Fuel
-
654-888988023 CLAMPCLAMP
-
710-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
812-892267511 WASHERWASHER
-
932-892267504 HOSEHOSE
-
1032-892267503 HOSEHOSE
-
1125-834985 GROMMETGROMMET
-
1223-856954 BUSHINGBUSHING
-
13892267A51 PUMP KIT, Fuel, Also includes cover to body o ring 25-892267530PUMP KIT, Fuel, Also includes cover to body o ring 25-892267530
-
14892267521 INSULATORINSULATOR
-
15892267510 ISOLATORISOLATOR
-
16892267523 INSULTORINSULTOR
-
17892267534 STRAINER, FuelSTRAINER, Fuel
-
18892267519 COVERCOVER
-
19892267T57 COVER ASSEMBLYCOVER ASSEMBLY
-
20892267T57 VALVE, SchraderVALVE, Schrader
-
21892267535 CONNECTOR, ElectricalCONNECTOR, Electrical
-
2210-892267531 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
23883220 CAPCAP
-
24892267A52 FLOAT VALVE KITFLOAT VALVE KIT
-
25892267A50 REGULATOR KIT, PressureREGULATOR KIT, Pressure
-
2625-892267513 O-RINGO-RING
-
27892267512 SCREENSCREEN
-
2810-892267515 SCREW, (M5 x 18)SCREW, (M5 x 18)
-
2954-888988023 CLAMPCLAMP
-
30892267520 PLTEPLTE
-
3110-892267529 SCREW, (M4 x 8)SCREW, (M4 x 8)
-
32892267527 FLOATFLOAT
-
3317-892267528 PIN, FloatPIN, Float
-
3454-892267517 CLIPCLIP
-
3532-892267516 HOSEHOSE
-
3656762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
3710-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3812-4002316 WASHERWASHER
-
3954-888988023 CLAMPCLAMP
-
4022-8M0022107 FITTINGFITTING
