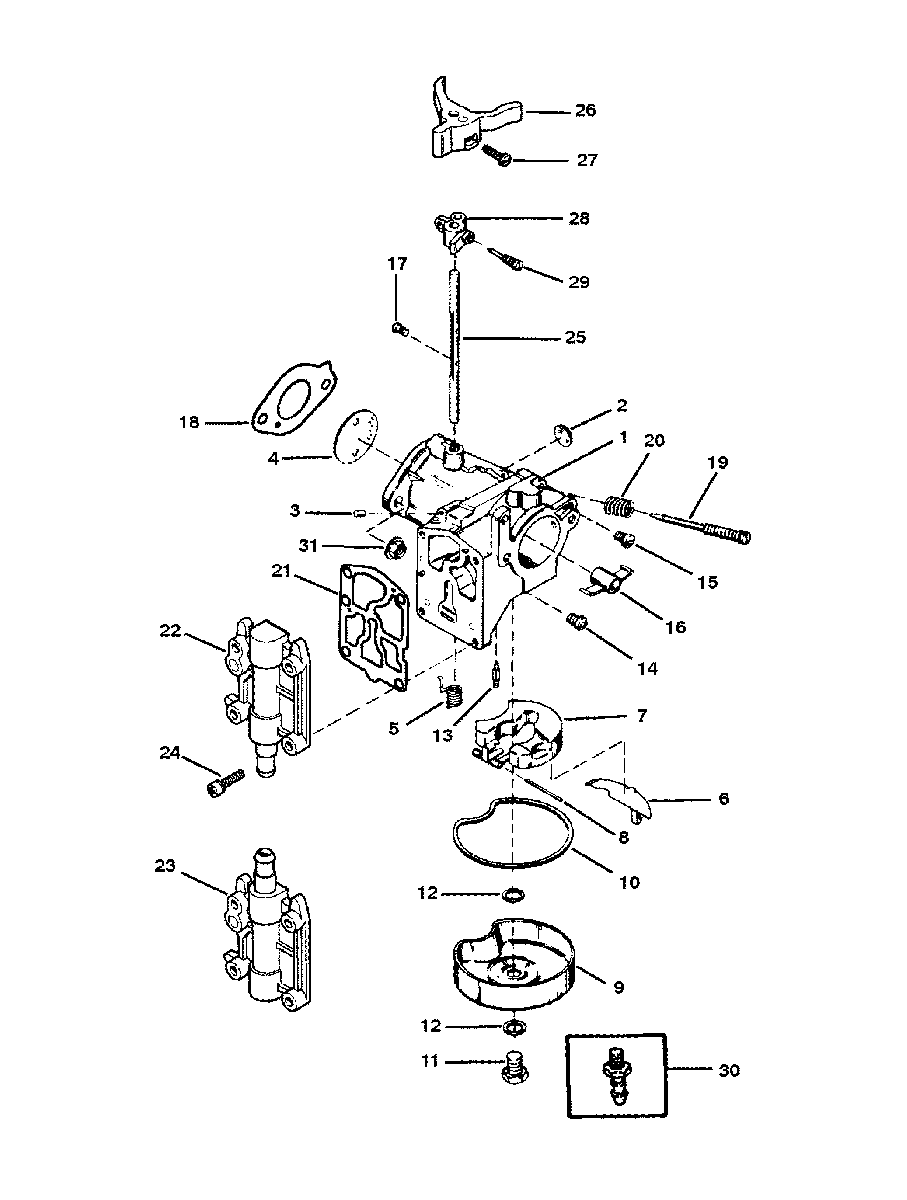

CARBURETOR ASSEMBLY для Mariner - 30 JET 0C159200 THRU 0G589999

№

Артикул

Название
1

3330-830281A3 CARBURETOR (UPPER)
(WMA-10)

CARBURETOR (UPPER)
(WMA-10)

0 ₽
1

3330-830281A4 CARBURETOR (LOWER)
(WMA-10)

CARBURETOR (LOWER)
(WMA-10)

40 000 ₽
1

3330-830281A3 CARBURETOR (UPPER)
(WMA-13)

CARBURETOR (UPPER)
(WMA-13)

0 ₽
1

3330-830281A4 CARBURETOR (LOWER)
(WMA-13)

CARBURETOR (LOWER)
(WMA-13)

40 000 ₽
2

90-8M0143356 WELCH PLUG-BODY CHANNEL (LARGE)

WELCH PLUG-BODY CHANNEL (LARGE)

0 ₽
3

90-8M0143356 PLUG-BODY CHANNEL

PLUG-BODY CHANNEL

0 ₽
4

1395-9649 THROTTLE VALVE

THROTTLE VALVE

0 ₽
5

90-8M0143356 SPRING-RETURN-THROTTLE SHAFT

SPRING-RETURN-THROTTLE SHAFT

0 ₽
6

814483 BAFFLE-FUEL BOWL

BAFFLE-FUEL BOWL

0 ₽
7

1395-9293 FLOAT
(WMA-7B)

FLOAT
(WMA-7B)

2 170 ₽
7

1395-823620 FLOAT
(WMA-9/10/13)

FLOAT
(WMA-9/10/13)

5 460 ₽
8

90-8M0143356 PIN-FLOAT RETAINING

PIN-FLOAT RETAINING

0 ₽
9

1399-5127 FUEL BOWL
(WMA-7B)

FUEL BOWL
(WMA-7B)

0 ₽
9

1395-823619 FUEL BOWL
(WMA-9/10/13)

FUEL BOWL
(WMA-9/10/13)

0 ₽
10

90-8M0143356 GASKET-FUEL BOWI

GASKET-FUEL BOWI

0 ₽
11

1395-9652 SCREW (LOWER CARBURETOR)
(WMA-7B)

SCREW (LOWER CARBURETOR)
(WMA-7B)

0 ₽
11

1395-823622 JET ASSEMBLY
(LOWER-WMA-9/10/13)

JET ASSEMBLY
(LOWER-WMA-9/10/13)

6 590 ₽
12

90-8M0143356 GASKET-FUEL BOWL SCREW

GASKET-FUEL BOWL SCREW

0 ₽
13

1395-879194011 INLET NEEDLE AND SPRING

INLET NEEDLE AND SPRING

1 180 ₽
14

1399-1457 JET-MAIN FUEL (.057)
(WMA-7B)

JET-MAIN FUEL (.057)
(WMA-7B)

490 ₽
15

1395-7335 JET-ECONOMIZER (.098)

JET-ECONOMIZER (.098)

680 ₽
16

64677 VENTURI

VENTURI

780 ₽
17

90-8M0143356 SCREW-THROTTLE SHUTTER TO THROTTLE SHAFT

SCREW-THROTTLE SHUTTER TO THROTTLE SHAFT

0 ₽
18

27-757911 GASKET-CARBURETOR FLANGE

GASKET-CARBURETOR FLANGE

280 ₽
19

90-8M0143356 SCREW-IDLE MIXTURE

SCREW-IDLE MIXTURE

0 ₽
20

90-8M0143356 SPRING-IDLE MIXTURE SCREW

SPRING-IDLE MIXTURE SCREW

0 ₽
21

90-8M0143356 GASKET-FUEL PUMP
(WMA-7B/9/10)

GASKET-FUEL PUMP
(WMA-7B/9/10)

0 ₽
22

814482 COVER-PLATE (UPPER CARBURETOR)

COVER-PLATE (UPPER CARBURETOR)

0 ₽
23

1395-9654 COVER-PLATE (LOWER CARBURETOR)

COVER-PLATE (LOWER CARBURETOR)

1 660 ₽
24

1395-808612 SCREW-STRAINER BODY TO CARBURETOR

SCREW-STRAINER BODY TO CARBURETOR

150 ₽
25

1395-9020 THROTTLE SHAFT
(UPPER CARBURETOR)

THROTTLE SHAFT
(UPPER CARBURETOR)

0 ₽
25

1395-9656 THROTTLE SHAFT
(LOWER CARBURETOR)

THROTTLE SHAFT
(LOWER CARBURETOR)

1 790 ₽
26

92880 THROTTLE LEVER (UPPER CARBURETOR)

THROTTLE LEVER (UPPER CARBURETOR)

0 ₽
27

1395-6027 SCREW-THROTTLE LEVER (UPPER CARBURETOR)

SCREW-THROTTLE LEVER (UPPER CARBURETOR)

250 ₽
28

8146791 THROTTLE LEVER (LOWER CARBURETOR)
(WMA13)

THROTTLE LEVER (LOWER CARBURETOR)
(WMA13)

0 ₽
29

1395-6027 SCREW-THROTTLE LEVER (LOWER CARB)

SCREW-THROTTLE LEVER (LOWER CARB)

250 ₽
30

22-8148651 FITTING-FUEL BOWL (UPPER CARB)
(WMA-7-1)

FITTING-FUEL BOWL (UPPER CARB)
(WMA-7-1)

0 ₽
30

22-810769 FITTING-FUEL BOWL (UPPER CARB)
(WMA-7-1B)

FITTING-FUEL BOWL (UPPER CARB)
(WMA-7-1B)

0 ₽
30

1395-823621 JET ASSEMBLY
(UPPER-WMA-9/10/13)

JET ASSEMBLY
(UPPER-WMA-9/10/13)

0 ₽
31

11-64809 NUT-CARBURETOR MOUNTING STUD

NUT-CARBURETOR MOUNTING STUD

180 ₽
-

422501 RESTRICTOR PLATE
(RESTRICTED 40)

RESTRICTOR PLATE
(RESTRICTED 40)

0 ₽
-

27-757911 GASKET
(RESTRICTED 40)

GASKET
(RESTRICTED 40)

280 ₽
-

1395-9650 CARB REPAIR PARTS KIT

CARB REPAIR PARTS KIT

7 490 ₽
-

1395-9651 CARB GASKET SET

CARB GASKET SET

780 ₽
-

27-85491A90 GASKET SET

GASKET SET

7 420 ₽
-

814278T93 POWERHEAD

POWERHEAD

614 670 ₽
