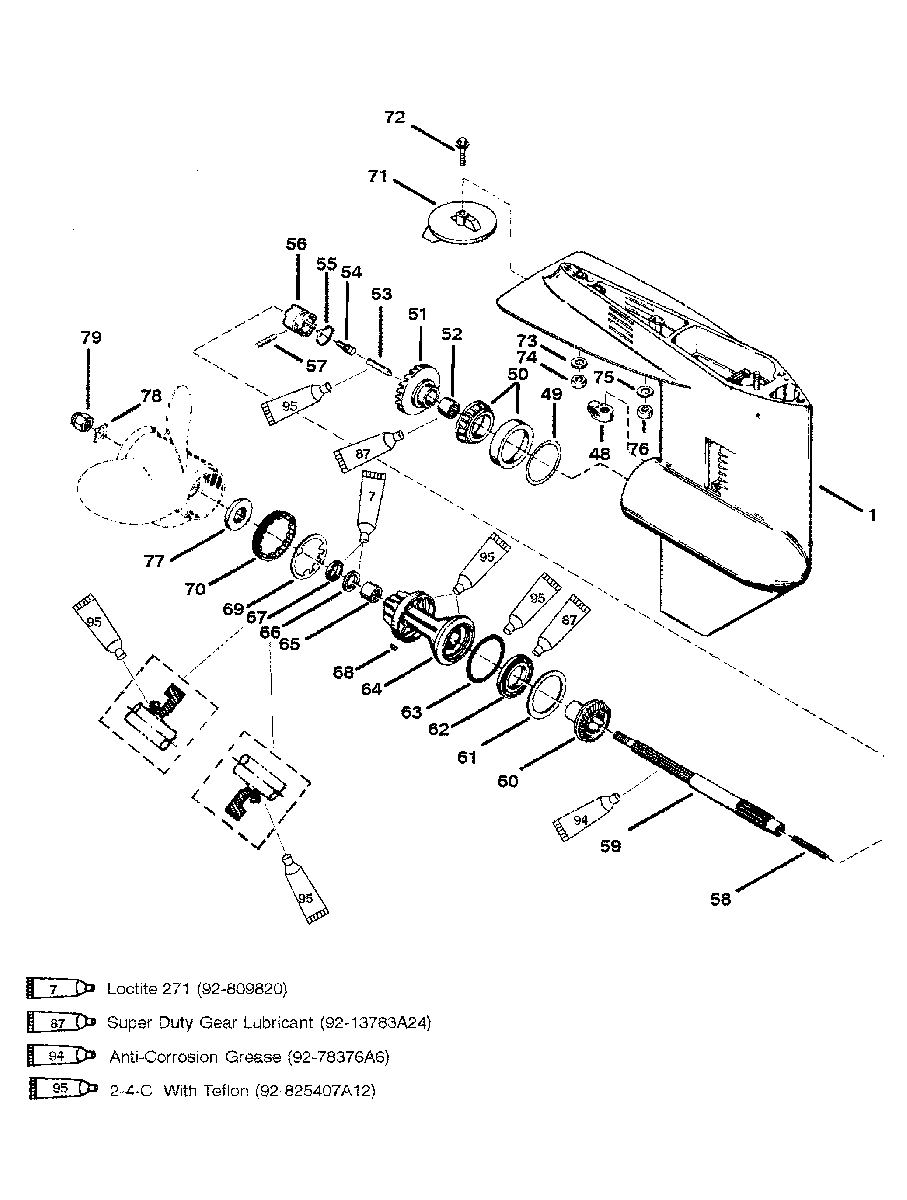

GEAR HOUSING (PROP SHAFT) для Mariner - 30 JET 0C159200 THRU 0G589999
-
№АртикулНазвание
-
-1643-9539A4 GEAR HOUSING
(SHORT BLACK) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOWGEAR HOUSING
(SHORT BLACK) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW -
-1643-9539A6 GEAR HOUSING
(SHORT GRAY) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOWGEAR HOUSING
(SHORT GRAY) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW -
-1643-9539A5 GEAR HOUSING
(LONG BLACK) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOWGEAR HOUSING
(LONG BLACK) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW -
-1643-9539A7 GEAR HOUSING
(LONG GRAY) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOWGEAR HOUSING
(LONG GRAY) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW -
-1643-9539T15 GEAR HOUSING
(SHORT BLACK) S/N USA-0D279350 & UP BEL 9793445 & UPGEAR HOUSING
(SHORT BLACK) S/N USA-0D279350 & UP BEL 9793445 & UP -
-1643-9539A16 GEAR HOUSING
(SHORT GRAY) S/N USA-0D279350 & UP BEL 9793445 & UPGEAR HOUSING
(SHORT GRAY) S/N USA-0D279350 & UP BEL 9793445 & UP -
-1643-9539T18 GEAR HOUSING
(LONG BLACK) S/N USA-0D279350 & UP BEL 9793445 & UPGEAR HOUSING
(LONG BLACK) S/N USA-0D279350 & UP BEL 9793445 & UP -
-1643-9539T18 GEAR HOUSING
(LONG GRAY) S/N USA-0D279350 & UP BEL 9793445 & UPGEAR HOUSING
(LONG GRAY) S/N USA-0D279350 & UP BEL 9793445 & UP -
-1643-9539T12 GEAR HOUSING
(TRACKER GRAPHITE GRAY)GEAR HOUSING
(TRACKER GRAPHITE GRAY) -
11643-9539T1 GEAR HOUSING ASSEMBLY
(BLACK)GEAR HOUSING ASSEMBLY
(BLACK) -
11643-9539T1 GEAR HOUSING ASSEMBLY
(GRAY)GEAR HOUSING ASSEMBLY
(GRAY) -
11643-9539T1 GEAR HOUSING ASSEMBLY
(TRACKER GRAHITE GRAY)GEAR HOUSING ASSEMBLY
(TRACKER GRAHITE GRAY) -
48760394 SHIFT CAMSHIFT CAM
-
4915-38374A1 SHIM (.002-3-5-10)SHIM (.002-3-5-10)
-
5031-38356A1 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
5143-55608T4 FORWARD GEARFORWARD GEAR
-
5231-21739 ROLLER BEARINGROLLER BEARING
-
5338441 CAM FOLLOWERCAM FOLLOWER
-
5420843 SLIDESLIDE
-
5524-38114 SPRINGSPRING
-
5652-92911T RATCHETRATCHET
-
5717-8M0020942 CROSS PINCROSS PIN
-
5824-39845 SPRING
(PROP SHAFT I.D. IS .310 IN.)SPRING
(PROP SHAFT I.D. IS .310 IN.) -
5824-815418 SPRING
(PROP SHAFT I.D. IS .373 IN.)SPRING
(PROP SHAFT I.D. IS .373 IN.) -
5944-75365 PROPELLER SHAFTPROPELLER SHAFT
-
6043-79158T REVERSE GEARREVERSE GEAR
-
6112-32004 THRUST WASHERTHRUST WASHER
-
6230-20839T BALL BEARINGBALL BEARING
-
6325-31986 O-RINGO-RING
-
6469386T1 BEARING CARRIERBEARING CARRIER
-
6531-21700 ROLLER BEARINGROLLER BEARING
-
6626-69188 OIL SEALOIL SEAL
-
6726-69189 OIL SEALOIL SEAL
-
6828-30281 KEYKEY
-
6914-53012 TAB WASHERTAB WASHER
-
7011-87763 NUTNUT
-
7197-31640Q4 TRIM TAB ASSEMBLYTRIM TAB ASSEMBLY
-
7210-66024 SCREWSCREW
-
7312-856774 WASHER (3/8 IN.)WASHER (3/8 IN.)
-
7411-8M0042636 NUT (3/8 IN.)NUT (3/8 IN.)
-
7512-65791 WASHER (7/16 IN.)WASHER (7/16 IN.)
-
7611-34933 NUT (7/16 IN.)NUT (7/16 IN.)
-
7773345A1 THRUST HUBTHRUST HUB
-
7814-76281 TAB WASHERTAB WASHER
-
7911-69578Q1 PROPELLER NUTPROPELLER NUT
-
-27-85491A90 ENGINE GASKET SETENGINE GASKET SET
-
-26-79831A1 G/H SEAL KITG/H SEAL KIT
