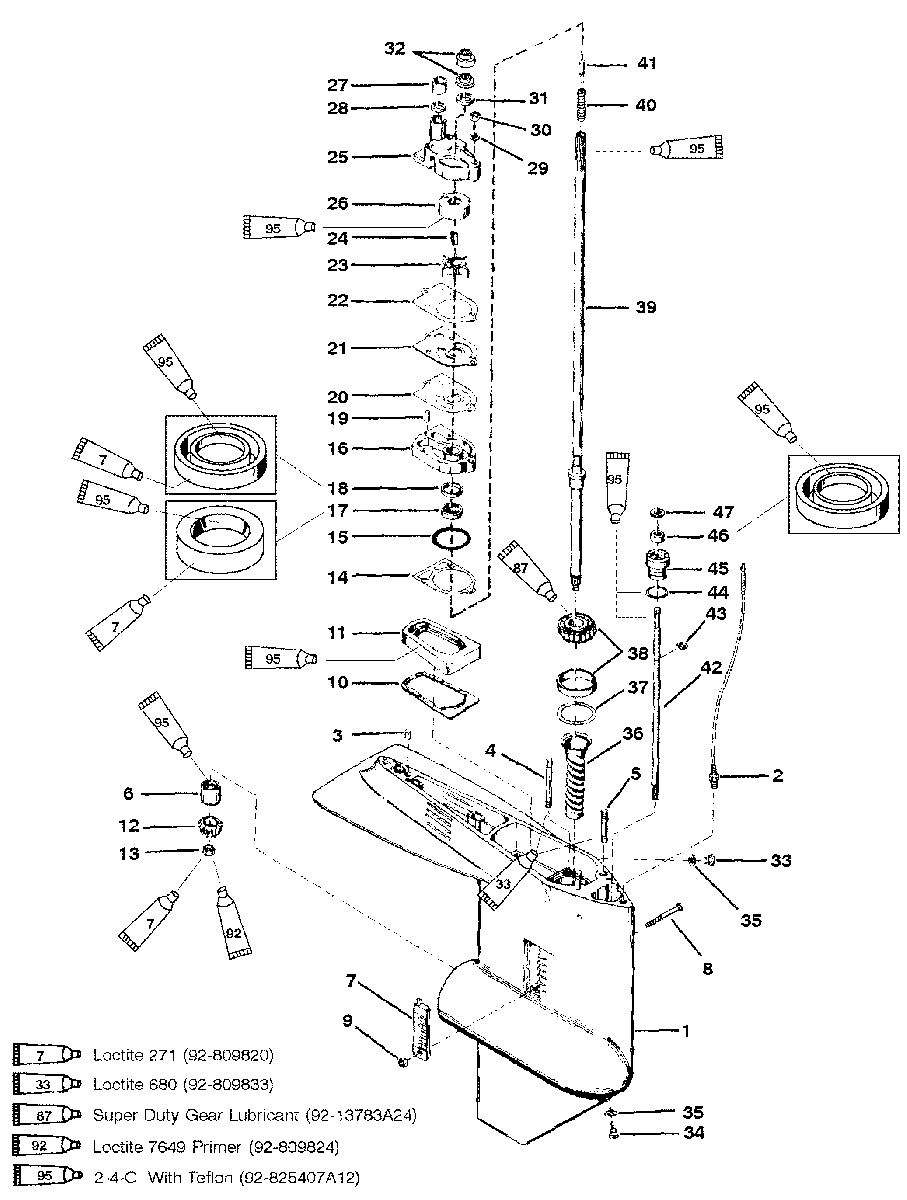

GEAR HOUSING (DRIVE SHAFT) для Mariner - 30 JET 0C159200 THRU 0G589999
-
№АртикулНазвание
-
-1643-9539A4 GEAR HOUSING
(SHORT BLACK) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOWGEAR HOUSING
(SHORT BLACK) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOW -
-1643-9539A6 GEAR HOUSING
(SHORT GRAY) S/N USA-0D279349 & / BELOW BEL- 9793444 & BELOWGEAR HOUSING
(SHORT GRAY) S/N USA-0D279349 & / BELOW BEL- 9793444 & BELOW -
-1643-9539A5 GEAR HOUSING
(LONG BLACK) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOWGEAR HOUSING
(LONG BLACK) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOW -
-1643-9539A7 GEAR HOUSING
(LONG GRAY) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOWGEAR HOUSING
(LONG GRAY) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOW -
-1643-9539T15 GEAR HOUSING
(SHORT BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UPGEAR HOUSING
(SHORT BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP -
-1643-9539A16 GEAR HOUSING
(SHORT GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UPGEAR HOUSING
(SHORT GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP -
-1643-9539T18 GEAR HOUSING
(LONG BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UPGEAR HOUSING
(LONG BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP -
-1643-9539T18 GEAR HOUSING
(LONG GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UPGEAR HOUSING
(LONG GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP -
-1643-9539T12 GEAR HOUSING
(TRACKER GRAPHITE GRAY)GEAR HOUSING
(TRACKER GRAPHITE GRAY) -
11643-9539T1 GEAR HOUSING ASSEMBLY
(BLACK)GEAR HOUSING ASSEMBLY
(BLACK) -
11643-9539T1 GEAR HOUSING ASSEMBLY
(GRAY)GEAR HOUSING ASSEMBLY
(GRAY) -
11643-9539T1 GEAR HOUSING ASSEMBLY
(TRACKER GRAHITE GRAY)GEAR HOUSING ASSEMBLY
(TRACKER GRAHITE GRAY) -
2546-77822A1 WATER PUMP BODYWATER PUMP BODY
-
2648753 INSERTINSERT
-
2726-38452 SEALSEAL
-
2812-38453 WASHERWASHER
-
2912-29245 WASHERWASHER
-
3011-8267119 NUTNUT
-
3125-20273 RING-RUBBER (DRIVE SHAFT)RING-RUBBER (DRIVE SHAFT)
-
32N.L.A. CARRIER (USE 60834A3)
REFER TO SERVICE BULLETIN #90-15CARRIER (USE 60834A3)
REFER TO SERVICE BULLETIN #90-15 -
3310-79953Q04 SCREWSCREW
-
3422-8M0058389 DRAIN SCREW
SUPERSEDES TO ANOTHER PART NUMBERDRAIN SCREW
SUPERSEDES TO ANOTHER PART NUMBER -
3512-191833 WASHER-SEALINGWASHER-SEALING
-
3688181 SLEEVESLEEVE
-
3715-92881A1 SHIM (.002-3-5-10-20)SHIM (.002-3-5-10-20)
-
3831-77420A1 ROLLER BEARING ASSEMBLYROLLER BEARING ASSEMBLY
-
3945-98179 DRIVE SHAFT
(SHORT) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOWDRIVE SHAFT
(SHORT) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW -
3945-98180 DRIVE SHAFT
(LONG) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOWDRIVE SHAFT
(LONG) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW -
3945-981791 DRIVE SHAFT
(SHORT) S/N USA-0D279350 & UP BEL 9793445 & UPDRIVE SHAFT
(SHORT) S/N USA-0D279350 & UP BEL 9793445 & UP -
3945-981801 DRIVE SHAFT
(LONG) S/N USA-0D279350 & UP BEL 9793445 & UPDRIVE SHAFT
(LONG) S/N USA-0D279350 & UP BEL 9793445 & UP -
4024-20254 SPRINGSPRING
-
4117-30545 PINPIN
-
4276063A1 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
4353-29641 RETAINING RINGRETAINING RING
-
4425-25439 O-RINGO-RING
-
4523-77631A2 BUSHLNG ASSEMBLYBUSHLNG ASSEMBLY
-
4626-8164641 OIL SEALOIL SEAL
-
4712-77674 WASHERWASHER
-
-27-85491A90 ENGINE GASKET SETENGINE GASKET SET
-
-26-79831A1 SEAL KITSEAL KIT
-
-46-77177A3 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
