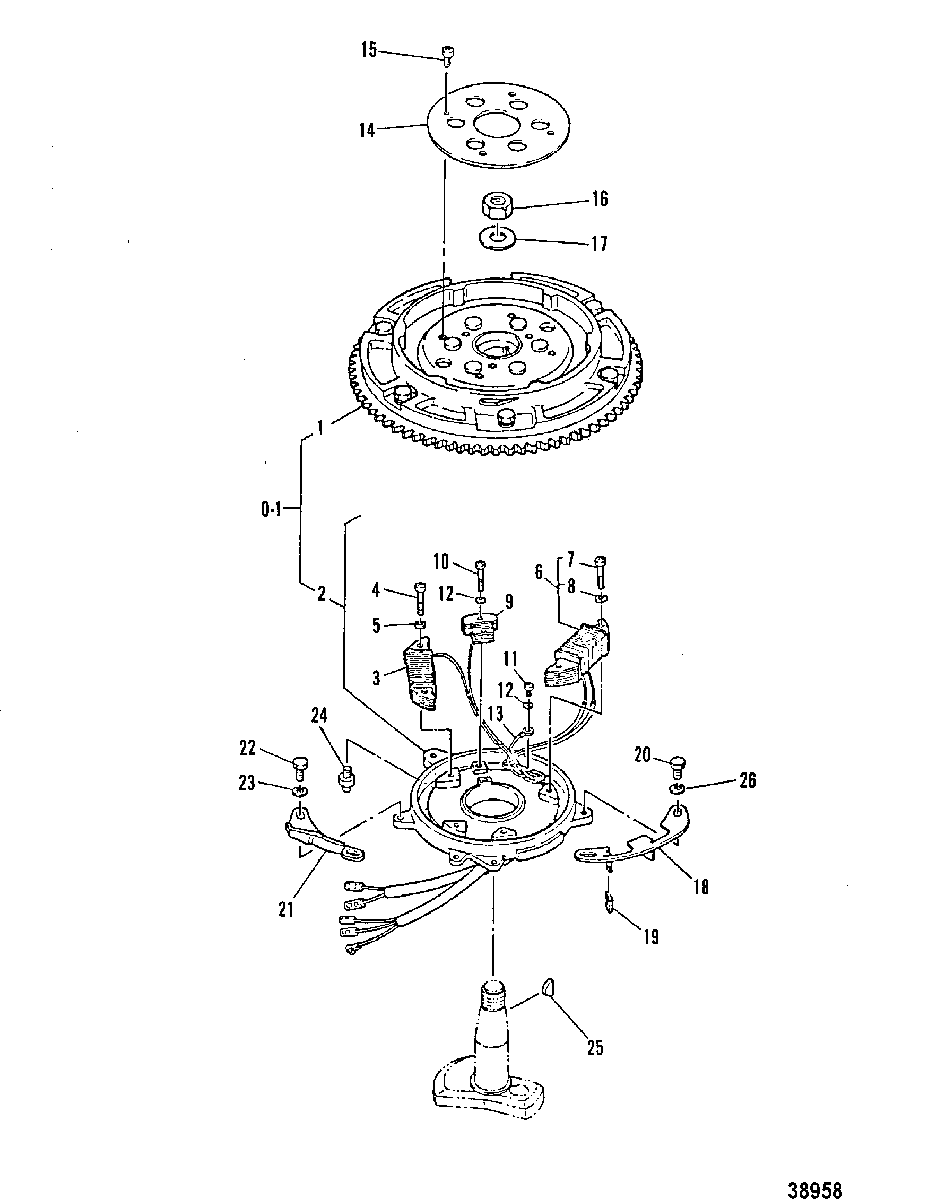

C.D.I. MAGNETO ASSEMBLY для Mariner - 30A 689-022059 THRU 689-230100 (M)
-
№АртикулНазвание
-
-253-8483M CDI MAGNETO ASSEMBLY
(MANUAL MODEL)CDI MAGNETO ASSEMBLY
(MANUAL MODEL) -
-253-8483M CDI MAGNETO ASSEMBLY
(ELECTRIC MODEL)CDI MAGNETO ASSEMBLY
(ELECTRIC MODEL) -
1253-8482M FLYWHEEL
(ELECTRIC MODEL)FLYWHEEL
(ELECTRIC MODEL) -
1253-8482M FLYWHEEL
(MANUAL MODEL)FLYWHEEL
(MANUAL MODEL) -
2811176M BASE ASSEMBLYBASE ASSEMBLY
-
384879T COIL, IGNITIONCOIL, IGNITION
-
410-83108M SCREWSCREW
-
513-82186M WASHERWASHER
-
684881M COIL ASSEMBLY, Lighting (80W)COIL ASSEMBLY, Lighting (80W)
-
710-83108M SCREWSCREW
-
813-82186M WASHERWASHER
-
984877M PULSERPULSER
-
1010-84882M SCREWSCREW
-
1110-82499M SCREWSCREW
-
1213-82206M LOCKWASHERLOCKWASHER
-
1384-84883M WIRE, GROUNDWIRE, GROUND
-
1496649M COVERCOVER
-
1510-82436M BOLTBOLT
-
1611-96650M NUT, (M16), FLYWHEELNUT, (M16), FLYWHEEL
-
1712-96651M WASHERWASHER
-
1884885M STOP, MAGNETO BASESTOP, MAGNETO BASE
-
1984886M CAPCAP
-
2010-84088M BOLTBOLT
-
2184887M CAM, THROTTLE ACCELERATORCAM, THROTTLE ACCELERATOR
-
2210-84313M BOLTBOLT
-
2312-82211M WASHERWASHER
-
2484305M JOINTJOINT
-
2528-81915M KEY, FLYWHEELKEY, FLYWHEEL
-
2612-82214M WASHER
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & UpWASHER
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up
