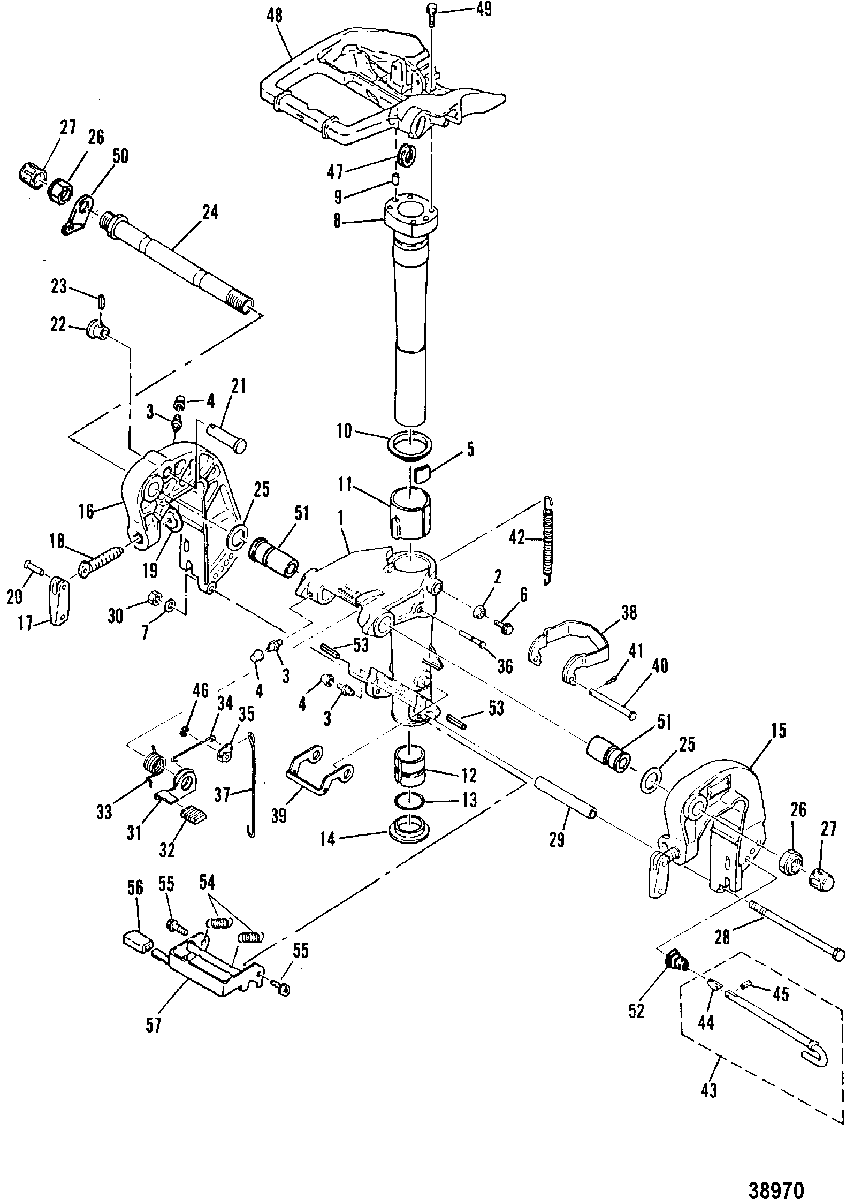

CLAMP AND SWIVEL BRACKET/REVERSE LOCK для Mariner - 30A 689-022059 THRU 689-230100 (M)

№

Артикул

Название
1

1485-9792M SWIVEL BRACKET
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

SWIVEL BRACKET
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

27 040 ₽
1

1485-9246M SWIVEL BRACKET
SN# M-030661, ML-329958, E-108558, EL-418519 & Below

SWIVEL BRACKET
SN# M-030661, ML-329958, E-108558, EL-418519 & Below

0 ₽
2

26-91637M SEAL

SEAL

200 ₽
3

22-82369M FITTING, GREASE

FITTING, GREASE

270 ₽
4

81439M CAP, GREASE FITTING

CAP, GREASE FITTING

140 ₽
5

80633M PLATE, FRICITON

PLATE, FRICITON

0 ₽
6

10-96382M SCREW

SCREW

0 ₽
7

12-82217M WASHER

WASHER

0 ₽
8

84833M SHAFT, STEERING PIVOT

SHAFT, STEERING PIVOT

0 ₽
9

17-82368M PIN, DOWEL

PIN, DOWEL

0 ₽
10

12-81873M WASHER

WASHER

0 ₽
11

23-81964M BUSHING, PIVOT SHAFT (UPPER)

BUSHING, PIVOT SHAFT (UPPER)

1 090 ₽
12

23-81961M BUSHING, PIVOT SHAFT (LOWER)

BUSHING, PIVOT SHAFT (LOWER)

0 ₽
13

25-82274M O-RING, PIVOT SHAFT BUSHING

O-RING, PIVOT SHAFT BUSHING

150 ₽
14

23-81959M BUSHING

BUSHING

0 ₽
15

1484-9797M BRACKET, CLAMP (PORT)
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

BRACKET, CLAMP (PORT)
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

16 130 ₽
15

1484-9797M BRACKET, CLAMP (PORT)
SN# M-030661, ML-329958, E-108558, EL-418519 & Below

BRACKET, CLAMP (PORT)
SN# M-030661, ML-329958, E-108558, EL-418519 & Below

16 130 ₽
16

1484-9798M BRACKET, CLAMP (STARBOARD)
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

BRACKET, CLAMP (STARBOARD)
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

16 730 ₽
16

1484-8246M BRACKET, CLAMP (STARBOARD)
SN# M-030661, ML-329958, E-108558, EL-418519 & Below

BRACKET, CLAMP (STARBOARD)
SN# M-030661, ML-329958, E-108558, EL-418519 & Below

15 580 ₽
17

809959M HANDLE, TRANSOM CLAMP SCREW

HANDLE, TRANSOM CLAMP SCREW

1 380 ₽
18

10-81756M SCREW, TRANSOME CLAMP SCREW

SCREW, TRANSOME CLAMP SCREW

2 640 ₽
19

12-80638M PAD, TRANSOM CLAMP SCREW

PAD, TRANSOM CLAMP SCREW

480 ₽
20

17-81888M PIN, ROLL

PIN, ROLL

0 ₽
21

84835M SHAFT, TILT SHOP

SHAFT, TILT SHOP

0 ₽
22

95650M KNOB, TILT STOP SHAFT

KNOB, TILT STOP SHAFT

0 ₽
23

17-82148M PIN, ROLL

PIN, ROLL

0 ₽
24

10-18974M BOLT, STEERING
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

BOLT, STEERING
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

0 ₽
24

10-91639M BOLT, STEERING
SN# M-030661, ML-329958, E-108558, EL-418519 & Below

BOLT, STEERING
SN# M-030661, ML-329958, E-108558, EL-418519 & Below

0 ₽
25

12-81836M WASHER

WASHER

0 ₽
26

11-879172252 NUT

NUT

4 260 ₽
27

811914M CAP

CAP

840 ₽
28

10-82924M BOLT

BOLT

0 ₽
29

23-19108M SPACER, CLAMP BRACKET
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

SPACER, CLAMP BRACKET
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

0 ₽
29

23-19108M SPACER, CLAMP BRACKET
SN# M-030661, ML-329958, E-108558, EL-418519 & Below

SPACER, CLAMP BRACKET
SN# M-030661, ML-329958, E-108558, EL-418519 & Below

0 ₽
30

21-82692M CHECK VALVE ASSEMBLY

CHECK VALVE ASSEMBLY

0 ₽
31

91640M LEVER, LOCK/RELEASE

LEVER, LOCK/RELEASE

0 ₽
32

91641M COVER, LEVER

COVER, LEVER

0 ₽
33

24-91642M SPRING, TENSION

SPRING, TENSION

0 ₽
34

91643M LINK, REVERSE LOCK LEVER

LINK, REVERSE LOCK LEVER

0 ₽
35

80648M CAM, TILT

CAM, TILT

0 ₽
36

17-19109M PIN

PIN

0 ₽
37

80645M ROD, REVERSE LOCK LEVER

ROD, REVERSE LOCK LEVER

0 ₽
38

84837M HOOK, REVERSE LOCK (REAR)

HOOK, REVERSE LOCK (REAR)

0 ₽
39

80643M HOOK, REVERSE LOCK (FRONT)

HOOK, REVERSE LOCK (FRONT)

0 ₽
40

17-81882M PIN

PIN

270 ₽
41

18-82125M COTTER PIN

COTTER PIN

300 ₽
42

24-19110M SPRING, REVERSE LOCK

SPRING, REVERSE LOCK

0 ₽
42

24-19110M SPRING, REVERSE LOCK

SPRING, REVERSE LOCK

0 ₽
43

17-94569M PIN ASSEMBLY, Tilt Lock

PIN ASSEMBLY, Tilt Lock

2 100 ₽
44

82857M PLATE, Stopper, PLATE

PLATE, Stopper, PLATE

0 ₽
45

17-82144M PIN, ROLL

PIN, ROLL

130 ₽
46

53-82330M RING, Snap

RING, Snap

320 ₽
47

25-82070M GROMMET

GROMMET

270 ₽
48

19113M BRACKET, STEERING

BRACKET, STEERING

21 820 ₽
48

19113M BRACKET, STEERING

BRACKET, STEERING

21 820 ₽
49

10-84830M BOLT

BOLT

130 ₽
50

19111M PLATE, CLAMP BRACKET
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

PLATE, CLAMP BRACKET
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

1 120 ₽
51

23-19112M BUSHING

BUSHING

460 ₽
52

24-815007M SPRING, CONICAL
MANUAL

SPRING, CONICAL
MANUAL

0 ₽
53

17-95552M PIN
MANUAL

PIN
MANUAL

130 ₽
54

24-95553M SPRING
MANUAL

SPRING
MANUAL

0 ₽
55

10-95554M BOLT
MANUAL

BOLT
MANUAL

0 ₽
56

11932M COVER
MANUAL

COVER
MANUAL

0 ₽
57

95551M LEVER, SHALLOW WATER DRIVE
MANUAL

LEVER, SHALLOW WATER DRIVE
MANUAL

0 ₽
