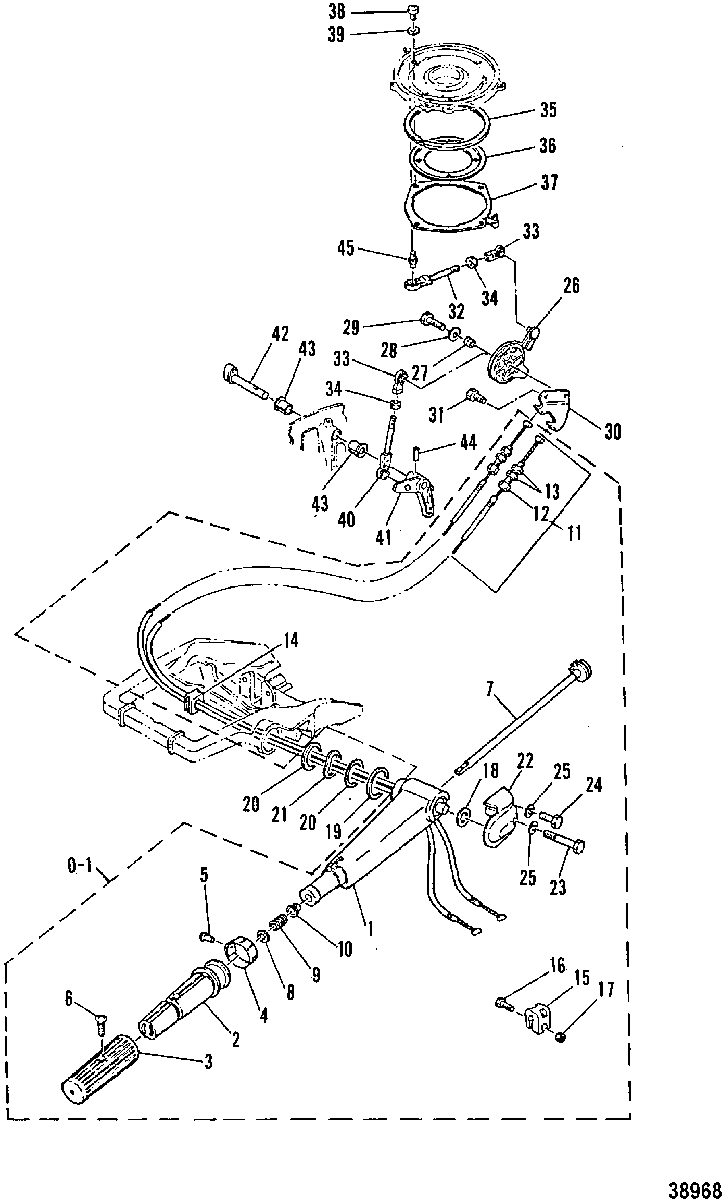

STEERING HANDLE AND THROTTLE CONTROL для Mariner - 30A 689-022059 THRU 689-230100 (M)
-
№АртикулНазвание
-
-95420M HANDLE ASSEMBLY, SteeringHANDLE ASSEMBLY, Steering
-
196664M HANDLEHANDLE
-
281585M GRIP, TWISTGRIP, TWIST
-
38M0080456 HANDLE, RUBBER, TWIST GRIPHANDLE, RUBBER, TWIST GRIP
-
497137M INDICATOR, THROTTLEINDICATOR, THROTTLE
-
517-81907M RIVETRIVET
-
610-811916M SCREW
SN# M-030662, ML-329959, E-108559, EL-418520 & UpSCREW
SN# M-030662, ML-329959, E-108559, EL-418520 & Up -
610-811916M SCREW
SN# M-030661, ML-329958, E-108558, EL-418519 & BelowSCREW
SN# M-030661, ML-329958, E-108558, EL-418519 & Below -
784856M LEVER, THROTTLELEVER, THROTTLE
-
812-82220M WASHERWASHER
-
924-82095M SPRING, COMPRESSIONSPRING, COMPRESSION
-
1023-81945M BUSHINGBUSHING
-
1141892M CABLE ASSEMBLY, ThrottleCABLE ASSEMBLY, Throttle
-
1210-815139M BOLT
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & UpBOLT
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up -
1210-815139M BOLT
SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & BelowBOLT
SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below -
1317-11794M NUTNUT
-
1425-82064M GROMMETGROMMET
-
1582895M FRICTION PIECEFRICTION PIECE
-
1610-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1711-83056M NUTNUT
-
1823-82119M SPACERSPACER
-
1923-81861M SPACERSPACER
-
2012-84850M WASHERWASHER
-
2113-84851M WASHER, WAVEWASHER, WAVE
-
2284852M RETAINER, STEERING HANDLERETAINER, STEERING HANDLE
-
2310-84931M BOLTBOLT
-
2410-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
2512-82214M WASHERWASHER
-
2684858M LEVER, MAGNETO CONTROLLEVER, MAGNETO CONTROL
-
2723-83310M COLLARCOLLAR
-
2812-81969M WASHERWASHER
-
2910-82405M BOLTBOLT
-
3084859M RETAINER, THROTTLE CABLERETAINER, THROTTLE CABLE
-
3110-91772M BOLTBOLT
-
32811168M ROD, MAGNETO CONTROLROD, MAGNETO CONTROL
-
3316715M JOINT, ROD ENDJOINT, ROD END
-
3411-82388M NUTNUT
-
3583566M RETAINER, MAGNETO BASERETAINER, MAGNETO BASE
-
3619139M RETAINER, MAGNETO BASE
SN# M-030662, ML-329959, E-108559, EL-418520 & UpRETAINER, MAGNETO BASE
SN# M-030662, ML-329959, E-108559, EL-418520 & Up -
3619139M RETAINER, MAGNETO BASE
SN# M-030661, ML-329958, E-108558, EL-418519 & BelowRETAINER, MAGNETO BASE
SN# M-030661, ML-329958, E-108558, EL-418519 & Below -
3783569M PLATE, BASEPLATE, BASE
-
3810-14232M SCREWSCREW
-
3912-82211M WASHERWASHER
-
4014238M JOINTJOINT
-
4014238M JOINTJOINT
-
4194646M LEVER, THROTTLE CONTROL
(ELECTRIC)LEVER, THROTTLE CONTROL
(ELECTRIC) -
4197138M LEVER, THROTTLE CONTROL
(MANUAL)LEVER, THROTTLE CONTROL
(MANUAL) -
4281134M SHAFT, THROTTLE CONTROLSHAFT, THROTTLE CONTROL
-
4323-81946M BUSHINGBUSHING
-
4417-82156M PIN, ROLLPIN, ROLL
-
4584305M JOINT, BALL
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & UpJOINT, BALL
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
