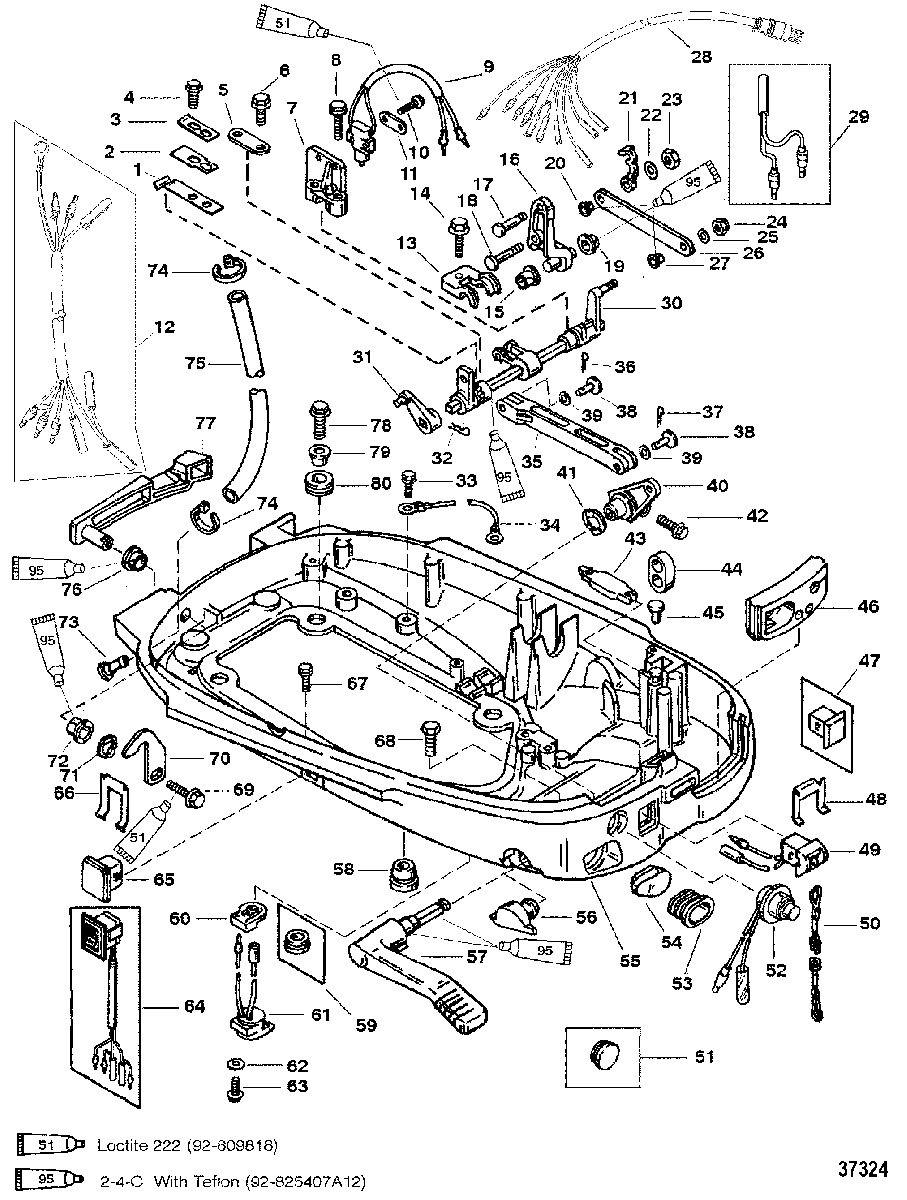

BOTTOM COWL для Mariner - 40 (2 CYL.) 0G055314 THRU 0G760299
-
№АртикулНазвание
-
124-824992 SPRING, DetentSPRING, Detent
-
224-824993 SPRING, BackingSPRING, Backing
-
3824994 SPRING, PlateSPRING, Plate
-
410-82191916 SCREW, (M5 x 14)SCREW, (M5 x 14)
-
58280471 STRAPSTRAP
-
610-4006731 SCREW, (M6 x 16) Stainless SteelSCREW, (M6 x 16) Stainless Steel
-
78M0039049 CLAMPCLAMP
-
810-40011130 SCREW, (M6 x 30) Stainless SteelSCREW, (M6 x 30) Stainless Steel
-
987-8M0052927 SWITCH
USE WHERE APPLICABLESWITCH
USE WHERE APPLICABLE -
1010-88075020 SCREW, (M3.5 x 20) Stainless Steel
USE WHERE APPLICABLESCREW, (M3.5 x 20) Stainless Steel
USE WHERE APPLICABLE -
11824923 PLATE
USE WHERE APPLICABLEPLATE
USE WHERE APPLICABLE -
1284-852375A4 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
138M0036802 CAPCAP
-
1410-4006731 SCREW, (M6 x 16) Stainless SteelSCREW, (M6 x 16) Stainless Steel
-
1523-26954 BUSHINGBUSHING
-
168M0041741 LEVERLEVER
-
1742927 INSERTINSERT
-
1817-8224561 PINPIN
-
1923-26954 BUSHINGBUSHING
-
2023-48475 BUSHINGBUSHING
-
21822459 RETAINERRETAINER
-
2212-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
2311-401386 NUT, (M6)NUT, (M6)
-
2411-401386 NUT, (M6)NUT, (M6)
-
2512-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
26822470 SHIFT LINKSHIFT LINK
-
2723-48475 BUSHINGBUSHING
-
2884-850203A2 HARNESS ASSEMBLY
ELECTRIC HANDLEHARNESS ASSEMBLY
ELECTRIC HANDLE -
2984-11149A21 HARNESS ASSEMBLY, Adapter
ELECTRIC HANDLEHARNESS ASSEMBLY, Adapter
ELECTRIC HANDLE -
30821483A6 SHIFT SHAFT, HorizontalSHIFT SHAFT, Horizontal
-
31821487 LEVERLEVER
-
3218-26811 COTTER PINCOTTER PIN
-
3310-878607 SCREW, (#10-16 x .380) (SELF TAP)SCREW, (#10-16 x .380) (SELF TAP)
-
3484-88807A28 CABLE ASSEMBLY (BLACK-7 1/2 IN.)CABLE ASSEMBLY (BLACK-7 1/2 IN.)
-
358M0037997 SHIFT RODSHIFT ROD
-
3618-210711 COTTER PINCOTTER PIN
-
3718-210711 COTTER PINCOTTER PIN
-
3817-8251851 PINPIN
-
3913-827418 LOCKWASHERLOCKWASHER
-
40822011 LEVER, ShiftLEVER, Shift
-
4113-825273 WAVE WASHERWAVE WASHER
-
4210-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
4398889 LATCHLATCH
-
4439519 CUPCUP
-
4510-42975 DRIVE SCREWDRIVE SCREW
-
46822423002 SEALSEAL
