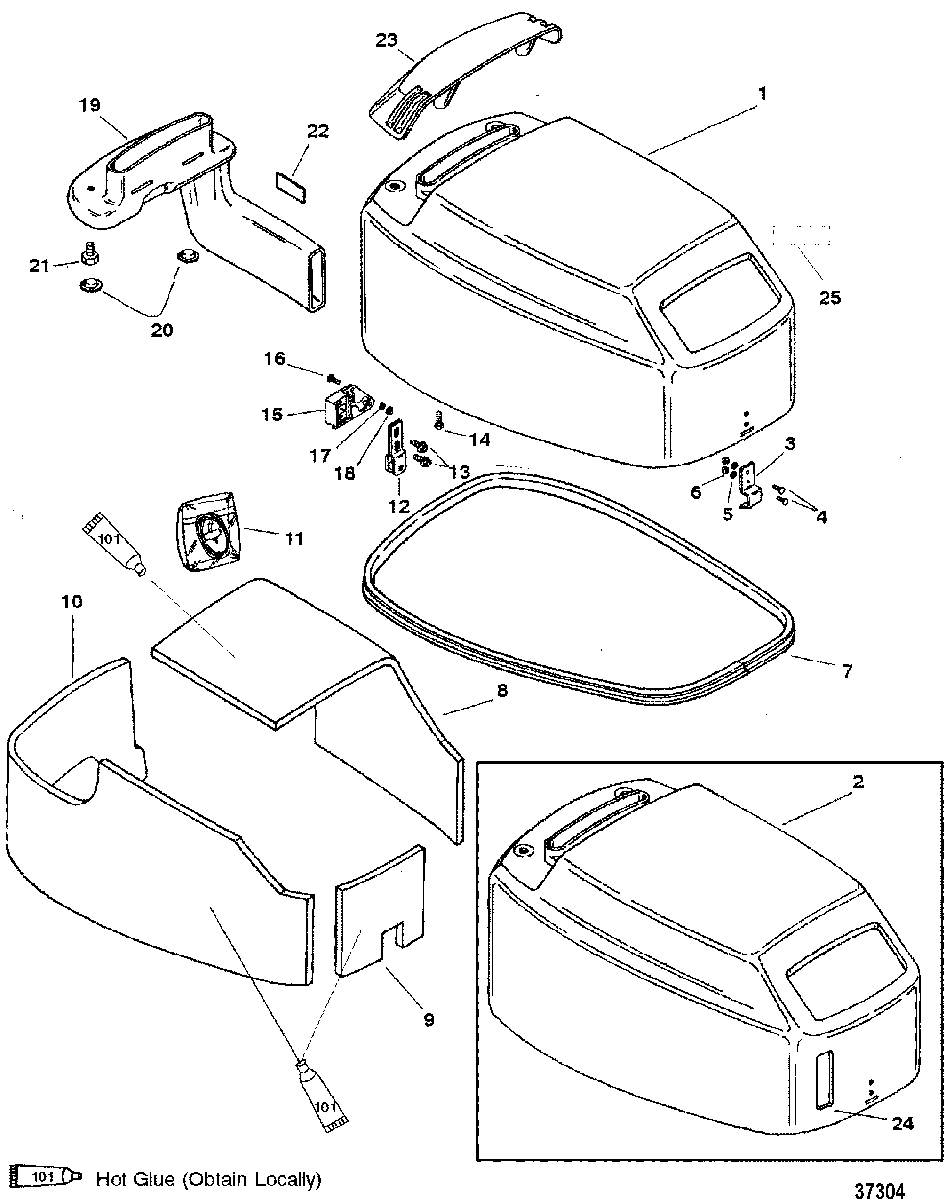

TOP COWL для Mariner - 40 (2 CYL.) 0G055314 THRU 0G760299
-
№АртикулНазвание
-
14011-821528T5 TOP COWL ASSEMBLY
(BLACK) MANUALTOP COWL ASSEMBLY
(BLACK) MANUAL -
14011-821528T11 TOP COWL ASSEMBLY
(SILVER) MANUALTOP COWL ASSEMBLY
(SILVER) MANUAL -
24011-821528T7 TOP COWL ASSEMBLY
(BLACK) ELECTRICTOP COWL ASSEMBLY
(BLACK) ELECTRIC -
24011-821528T8 TOP COWL ASSEMBLY
(SILVER) ELECTRICTOP COWL ASSEMBLY
(SILVER) ELECTRIC -
3825742F1 LATCH
(BLACK)LATCH
(BLACK) -
3825742F2 LATCH
(GRAY)LATCH
(GRAY) -
3825742F1 LATCH
(SILVER)LATCH
(SILVER) -
410-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
513-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
611-8237515 NUT, (M4)NUT, (M4)
-
78M0043406 SEAL, CowlSEAL, Cowl
-
8821530A02 SOUND BLANKET KIT, (Top/Side)(Hot Glue Adhesive)SOUND BLANKET KIT, (Top/Side)(Hot Glue Adhesive)
-
9NSS NOT SOLD SEPARATE, SOUND BLANKET (FRONT)NOT SOLD SEPARATE, SOUND BLANKET (FRONT)
-
10NSS NOT SOLD SEPARATE, SOUND BLANKET (SIDE/REAR)NOT SOLD SEPARATE, SOUND BLANKET (SIDE/REAR)
-
1147341A11 ROPE AND HANDLE KIT, Manual/Emergency StartROPE AND HANDLE KIT, Manual/Emergency Start
-
12893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
1310-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1410-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
158M0038412 BRACKETBRACKET
-
1610-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
1713-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1811-8237515 NUT, (M4)NUT, (M4)
-
19NSS NOT SOLD SEPARATE, DUCT-AIR INLNETNOT SOLD SEPARATE, DUCT-AIR INLNET
-
2019-815784 CAPCAP
-
2110-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
22NSS NOT SOLD SEPARATE, TAPE (DOUBLE SIDED)NOT SOLD SEPARATE, TAPE (DOUBLE SIDED)
-
23100-8M0053822 SHIELD, Air Inlet
(BLACK)SHIELD, Air Inlet
(BLACK) -
23821529T3 SHIELD, Air Inlet
(GRAY)SHIELD, Air Inlet
(GRAY) -
23821529T3 SHIELD, Air Inlet
(SILVER)SHIELD, Air Inlet
(SILVER) -
24NSS NOT SOLD SEPARATE, WINDOW-OIL SITE GAUGENOT SOLD SEPARATE, WINDOW-OIL SITE GAUGE
-
2537-855577A6 DECAL, EPA Label Information (INSIDE TOP COWL)
(1998) (SEE NOTE)DECAL, EPA Label Information (INSIDE TOP COWL)
(1998) (SEE NOTE)
