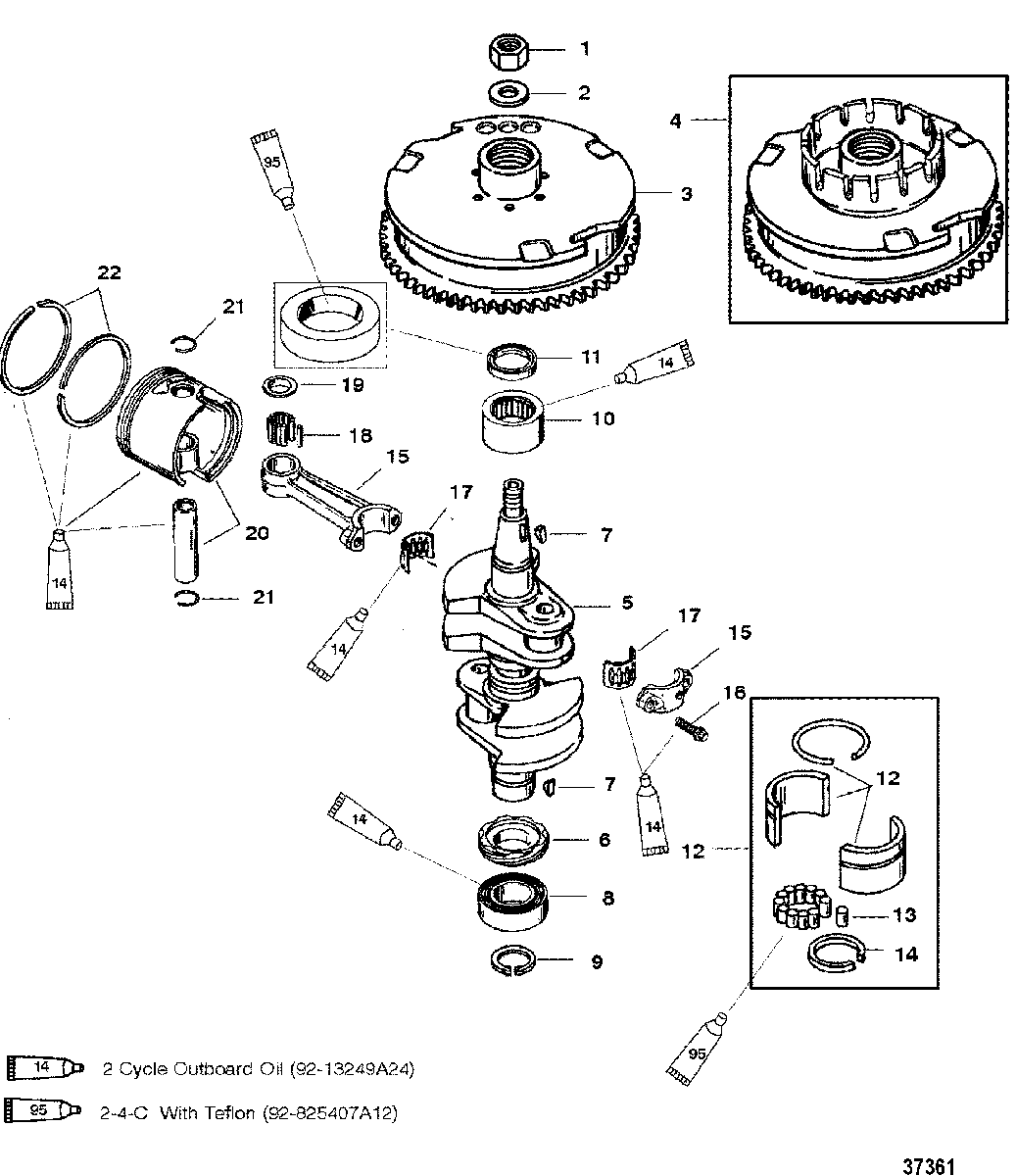

CRANKSHAFT/PISTON/FLYWHEEL для Mariner - 40 (2 CYL.) 0G055314 THRU 0G760299
-
№АртикулНазвание
-
111-42979 NUT, (M16)NUT, (M16)
-
212-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
3261-859233T23 FLYWHEEL
(ELECTRIC) SN# USA 0G590000/BEL 9973100 & UpFLYWHEEL
(ELECTRIC) SN# USA 0G590000/BEL 9973100 & Up -
3261-859233T26 FLYWHEEL
(ELECTRIC) SN# USA 0G589999/BEL 9973099 & BelowFLYWHEEL
(ELECTRIC) SN# USA 0G589999/BEL 9973099 & Below -
4261-859233T24 FLYWHEEL
(MANUAL) SN# USA 0G590000/BEL 9973100 & UpFLYWHEEL
(MANUAL) SN# USA 0G590000/BEL 9973100 & Up -
4261-859233T25 FLYWHEEL
(MANUAL) SN# USA 0G589999/BEL 9973099 & BelowFLYWHEEL
(MANUAL) SN# USA 0G589999/BEL 9973099 & Below -
5493-821369T01 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
643-43019A2 GEAR ASSEMBLY (DRIVER)GEAR ASSEMBLY (DRIVER)
-
728-91800 KEY, WoodruffKEY, Woodruff
-
830-63742T BEARING, BallBEARING, Ball
-
953-812877 RING, RetainingRING, Retaining
-
1031-818889A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1126-8173971 SEAL, OilSEAL, Oil
-
12827955A2 BEARING ASSEMBLYBEARING ASSEMBLY
-
13NSS NOT SOLD SEPARATE, ROLLERNOT SOLD SEPARATE, ROLLER
-
14NSS NOT SOLD SEPARATE, RING, SealNOT SOLD SEPARATE, RING, Seal
-
15640-9612A6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1610-91012 SCREW, (.250-28 Special)SCREW, (.250-28 Special)
-
1731-8M0045428 BEARING KITBEARING KIT
-
1829-47270 BEARINGBEARING
-
1912-8M0012298 WASHERWASHER
-
20705-850026T3 PISTON ASSEMBLY
(STANDARD) SN# USA 0G590000/BEL 9973100 & UpPISTON ASSEMBLY
(STANDARD) SN# USA 0G590000/BEL 9973100 & Up -
20705-850026T2 PISTON ASSEMBLY
(.015 O.S.) SN# USA 0G590000/BEL 9973100 & UpPISTON ASSEMBLY
(.015 O.S.) SN# USA 0G590000/BEL 9973100 & Up -
20705-850026T3 PISTON ASSEMBLY
(STANDARD) SN# USA 0G589999/BEL 9973099 & BelowPISTON ASSEMBLY
(STANDARD) SN# USA 0G589999/BEL 9973099 & Below -
20705-850026T2 PISTON ASSEMBLY
(.015 O.S.) SN# USA 0G589999/BEL 9973099 & BelowPISTON ASSEMBLY
(.015 O.S.) SN# USA 0G589999/BEL 9973099 & Below -
2153-857196 RING, LockRING, Lock
-
2239-821695A4 RING SET, Piston
(STANDARD)RING SET, Piston
(STANDARD) -
2239-821695A1 RING SET, Piston
(.015 O.S.)RING SET, Piston
(.015 O.S.) -
-808569T02 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
