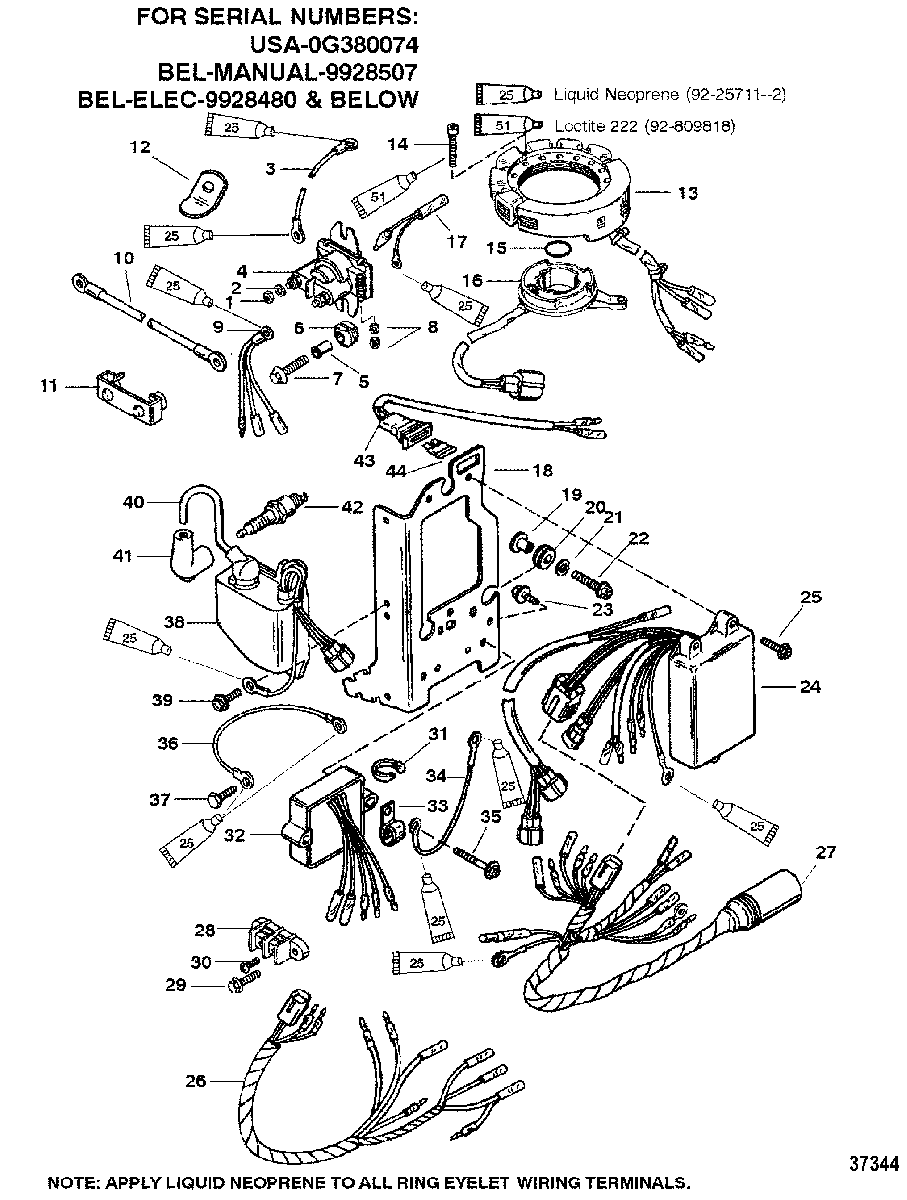

ELECTRICAL COMPONENTS(1) для Mariner - 40 (2 CYL.) 9854537 THRU 0P016999
-
№АртикулНазвание
-
111-64015 NUT, (.250-20)NUT, (.250-20)
-
213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
384-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
ELECTRICCABLE ASSEMBLY, (4.00 Inches) Black
ELECTRIC -
489-850187T1 SOLENOID ASSEMBLY
ELECTRICSOLENOID ASSEMBLY
ELECTRIC -
523-818968 BUSHING
ELECTRICBUSHING
ELECTRIC -
625-818967 GROMMET
ELECTRICGROMMET
ELECTRIC -
710-40011129 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
811-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
984-825004A1 CABLE ASSEMBLY (RED)
ELECTRICCABLE ASSEMBLY (RED)
ELECTRIC -
1084-88439A4 CABLE ASSEMBLY, Battery - Negative
ELECTRICCABLE ASSEMBLY, Battery - Negative
ELECTRIC -
1185-97861 INSULATORINSULATOR
-
128275101 RETAINERRETAINER
-
13398-832074A11 STATOR
(MANUAL)STATOR
(MANUAL) -
1410-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
1525-62457 O-RINGO-RING
-
1699021A14 TRIGGERTRIGGER
-
1784-11149A14 HARNESS ASSEMBLY, AdapterHARNESS ASSEMBLY, Adapter
-
188302361 PLATE, ElectricalPLATE, Electrical
-
1923-822003 BUSHINGBUSHING
-
2025-822002 GROMMETGROMMET
-
2112-4002316 WASHERWASHER
-
2210-40011129 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
2310-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
24823251A5 TPM ASSEMBLYTPM ASSEMBLY
-
2510-82239320 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
2684-824456A2 HARNESS ASSEMBLY, Engine
(MANUAL)HARNESS ASSEMBLY, Engine
(MANUAL) -
2784-824477A4 HARNESS ASSEMBLY, Engine
(ELECTRIC)HARNESS ASSEMBLY, Engine
(ELECTRIC) -
2886-638131 TERMINAL BLOCK
MANUALTERMINAL BLOCK
MANUAL -
2910-82239312 SCREW, (M5 x 12)
MANUALSCREW, (M5 x 12)
MANUAL -
3010-62568 SCREW, (#10-16 x .375)
MANUALSCREW, (#10-16 x .375)
MANUAL -
3154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
328M0084173 REGULATOR, Voltage
ELECTRICREGULATOR, Voltage
ELECTRIC -
3354-54457 J CLIP
ELECTRICJ CLIP
ELECTRIC -
3484-88807A20 CABLE ASSEMBLY (BLACK-11 IN.)
ELECTRICCABLE ASSEMBLY (BLACK-11 IN.)
ELECTRIC -
3510-82129135 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
3684-88807A29 CABLE ASSEMBLY (BLACK-9 IN.)CABLE ASSEMBLY (BLACK-9 IN.)
-
3710-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
38827509A12 CDM ASSEMBLYCDM ASSEMBLY
-
3910-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
4084-813715A13 CABLE KIT, IgnitionCABLE KIT, Ignition
-
4185-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
4233-816737Q SPARK PLUG (NGK# BP8H-N-10)SPARK PLUG (NGK# BP8H-N-10)
-
4233-816837Q SPARK PLUG (NGK#BPZ-8H-N-10)SPARK PLUG (NGK#BPZ-8H-N-10)
-
4388-19637A4 SOCKET ASSEMBLY, Fuse
ELECTRICSOCKET ASSEMBLY, Fuse
ELECTRIC -
4488-812619 FUSE, Yellow - 20 Ampere
ELECTRICFUSE, Yellow - 20 Ampere
ELECTRIC
