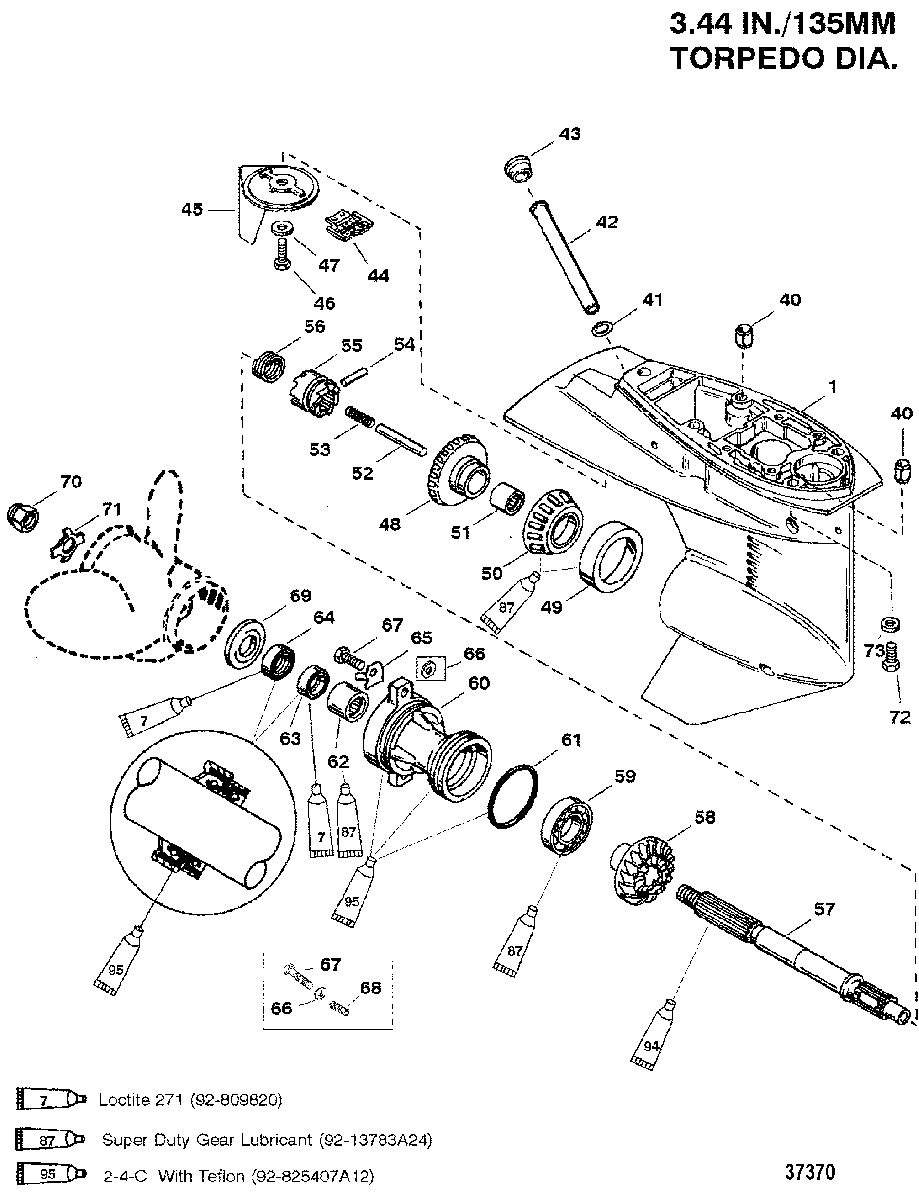

GEAR HOUSING(PROPELLER SHAFT)(2.00:1 GEAR RATIO) для Mariner - 40 (2 CYL.) 9854537 THRU 0P016999
-
№АртикулНазвание
-
-1682-821306T8 GEAR HOUSING ASSEMBLY
(SHORT-BLACK)GEAR HOUSING ASSEMBLY
(SHORT-BLACK) -
-1682-821306T6 GEAR HOUSING ASSEMBLY
(LONG-BLACK)GEAR HOUSING ASSEMBLY
(LONG-BLACK) -
-1682-821306A10 GEAR HOUSING ASSEMBLY
(X-LONG-BLACK)GEAR HOUSING ASSEMBLY
(X-LONG-BLACK) -
-1682-821306T9 GEAR HOUSING ASSEMBLY
(SHORT-GRAY)GEAR HOUSING ASSEMBLY
(SHORT-GRAY) -
-1682-821306T7 GEAR HOUSING ASSEMBLY
(LONG-GRAY)GEAR HOUSING ASSEMBLY
(LONG-GRAY) -
-1682-821306A11 GEAR HOUSING ASSEMBLY
(X-LONG-GRAY)GEAR HOUSING ASSEMBLY
(X-LONG-GRAY) -
11682-821306T12 GEAR HOUSING ASSEMBLY
(BASIC-BLACK)GEAR HOUSING ASSEMBLY
(BASIC-BLACK) -
11682-821306T12 GEAR HOUSING ASSEMBLY
(BASIC-GRAY)GEAR HOUSING ASSEMBLY
(BASIC-GRAY) -
4017-821327 PIN, DowelPIN, Dowel
-
4127-823942 GASKETGASKET
-
4232-8M0026108 TUBETUBE
-
4319-824928001 PLUG, RubberPLUG, Rubber
-
44821829 SCREENSCREEN
-
45822157T2 TRIM TABTRIM TAB
-
4610-82497020 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
4712-72397 WASHERWASHER
-
4843-821315T1 GEAR ASSEMBLY, Forward (26 TEETH)GEAR ASSEMBLY, Forward (26 TEETH)
-
4931-8M0103470 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
50NSS NOT SOLD SEPARATE, CUPNOT SOLD SEPARATE, CUP
-
5131-41326 BEARING, RollerBEARING, Roller
-
52821578 FOLLOWER, CamFOLLOWER, Cam
-
5324-8261991 SPRINGSPRING
-
5417-8M0020999 PINPIN
-
5552-821314T CLUTCHCLUTCH
-
5624-38114 SPRINGSPRING
-
5744-8M0140441 PROPELLER SHAFTPROPELLER SHAFT
-
5843-821312T1 GEAR, Reverse - 26 TeethGEAR, Reverse - 26 Teeth
-
5930-20839T BEARING, BallBEARING, Ball
-
6019291A3 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6125-815460 O-RINGO-RING
-
6231-21700 BEARING, NeedleBEARING, Needle
-
6326-69188 SEAL, OilSEAL, Oil
-
6426-69189 SEAL, OilSEAL, Oil
-
6514-826613 TAB WASHER (USE WHERE APPLICABLE)TAB WASHER (USE WHERE APPLICABLE)
-
6612-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel
(REPLACES TAB WASHER)WASHER, (.323 x .563 x .063) Stainless Steel
(REPLACES TAB WASHER) -
6612-855941 WASHER, (.323 x .590 x .112) Stainless Steel
(USE WITH THREADED INSERT)WASHER, (.323 x .590 x .112) Stainless Steel
(USE WITH THREADED INSERT) -
6710-4000353 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
6710-8136911 SCREW, (M8 x .98) (WASHER-HEAD SCREW)SCREW, (M8 x .98) (WASHER-HEAD SCREW)
-
6710-85594030 SCREW, (M8 x 30)
(USE WITH THREADED INSERT)SCREW, (M8 x 30)
(USE WITH THREADED INSERT) -
688227731 INSERT, ThreadedINSERT, Threaded
-
6973345A1 THRUST HUBTHRUST HUB
-
7011-69578Q1 PROP NUT KITPROP NUT KIT
-
7114-76281 TAB WASHERTAB WASHER
-
7210-4000380 SCREW, (M10 x 45) (SHORT/LONG)SCREW, (M10 x 45) (SHORT/LONG)
-
7312-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
-27-822420A94 GASKET SETGASKET SET
-
-823547A2 SEAL KITSEAL KIT
