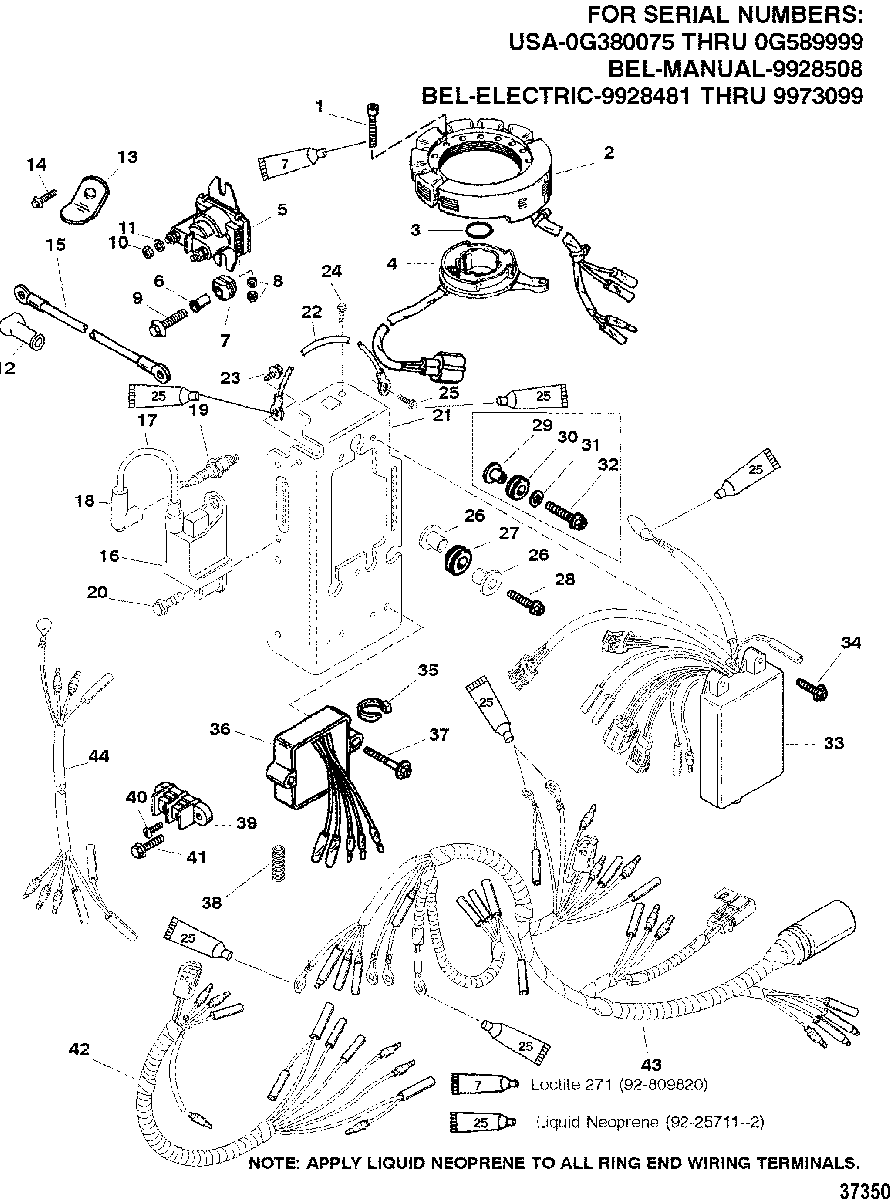

ELECTRICAL COMPONENTS(2) для Mariner - 40 (2 CYL.) 9854537 THRU 0P016999
-
№АртикулНазвание
-
110-4013930 SCREW, (M5 x 30)
MANUALSCREW, (M5 x 30)
MANUAL -
2398-832074A11 STATOR
MANUALSTATOR
MANUAL -
325-62457 O-RING
MANUALO-RING
MANUAL -
499021A14 TRIGGER
MANUALTRIGGER
MANUAL -
589-850187T1 SOLENOID ASSEMBLY
ELECTRICSOLENOID ASSEMBLY
ELECTRIC -
623-818968 BUSHING
ELECTRICBUSHING
ELECTRIC -
725-818967 GROMMET
ELECTRICGROMMET
ELECTRIC -
811-26419 NUT, (#8-32) Brass
ELECTRICNUT, (#8-32) Brass
ELECTRIC -
910-40011129 SCREW, (M6 x 25) Stainless Steel
ELECTRICSCREW, (M6 x 25) Stainless Steel
ELECTRIC -
1011-64015 NUT, (.250-20)
ELECTRICNUT, (.250-20)
ELECTRIC -
1113-26992 LOCKWASHER, (.250) Stainless Steel
ELECTRICLOCKWASHER, (.250) Stainless Steel
ELECTRIC -
1285-830233 BOOT, Insulator - Red
ELECTRICBOOT, Insulator - Red
ELECTRIC -
138275101 RETAINER (ELECTRIC HANDLE)RETAINER (ELECTRIC HANDLE)
-
1410-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
1584-88439A4 CABLE ASSEMBLY, Battery - Negative (ELECTRIC)CABLE ASSEMBLY, Battery - Negative (ELECTRIC)
-
16827509T7 CDM ASSEMBLYCDM ASSEMBLY
-
1784-821945A61 CABLE ASSEMBLY, Hi TensionCABLE ASSEMBLY, Hi Tension
-
1885-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
1933-816737Q SPARK PLUG (NGK# BP8H-N-10)SPARK PLUG (NGK# BP8H-N-10)
-
1933-816837Q SPARK PLUG (NGK#BPZ-8H-N-10)SPARK PLUG (NGK#BPZ-8H-N-10)
-
2010-82129116 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
218302361 PLATE, ElectricalPLATE, Electrical
-
2284-86322A32 CABLE ASSEMBLY (MANUAL)CABLE ASSEMBLY (MANUAL)
-
2310-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2410-82239312 SCREW, (M5 x 12) (ELECTRIC)SCREW, (M5 x 12) (ELECTRIC)
-
2510-81893412 SCREW, (M8 x 12) (MANUAL)SCREW, (M8 x 12) (MANUAL)
-
2623-8318701 BUSHING
DESIGN IBUSHING
DESIGN I -
2725-822002 GROMMET
DESIGN IGROMMET
DESIGN I -
2810-40011130 SCREW, (M6 x 30) Stainless Steel
DESIGN ISCREW, (M6 x 30) Stainless Steel
DESIGN I -
2923-831870 BUSHING, Flanged
DESIGN IIBUSHING, Flanged
DESIGN II -
3025-822002 GROMMET
DESIGN IIGROMMET
DESIGN II -
3112-831869 WASHER
DESIGN IIWASHER
DESIGN II -
3210-40011131 SCREW, (M6 x 35) Stainless Steel
DESIGN IISCREW, (M6 x 35) Stainless Steel
DESIGN II -
33823251A6 TPM ASSEMBLYTPM ASSEMBLY
-
3410-82239320 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
3554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
368M0084173 REGULATOR, Voltage
ELECTRICREGULATOR, Voltage
ELECTRIC -
3710-82129135 SCREW, (M6 x 35)
ELECTRICSCREW, (M6 x 35)
ELECTRIC -
3832-828547353 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)
-
3986-638131 TERMINAL BLOCK
MANUALTERMINAL BLOCK
MANUAL -
4010-48408 SCREW, (#10-16 x .500)
MANUALSCREW, (#10-16 x .500)
MANUAL -
4110-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
4284-830575A2 HARNESS ASSEMBLY, Engine
(MANUAL)HARNESS ASSEMBLY, Engine
(MANUAL) -
4384-830574A2 HARNESS ASSEMBLY, Engine
(ELECTRIC)HARNESS ASSEMBLY, Engine
(ELECTRIC) -
4484-852375A4 HARNESS ASSEMBLY
(ELECTRIC)HARNESS ASSEMBLY
(ELECTRIC) -
-808569T02 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
