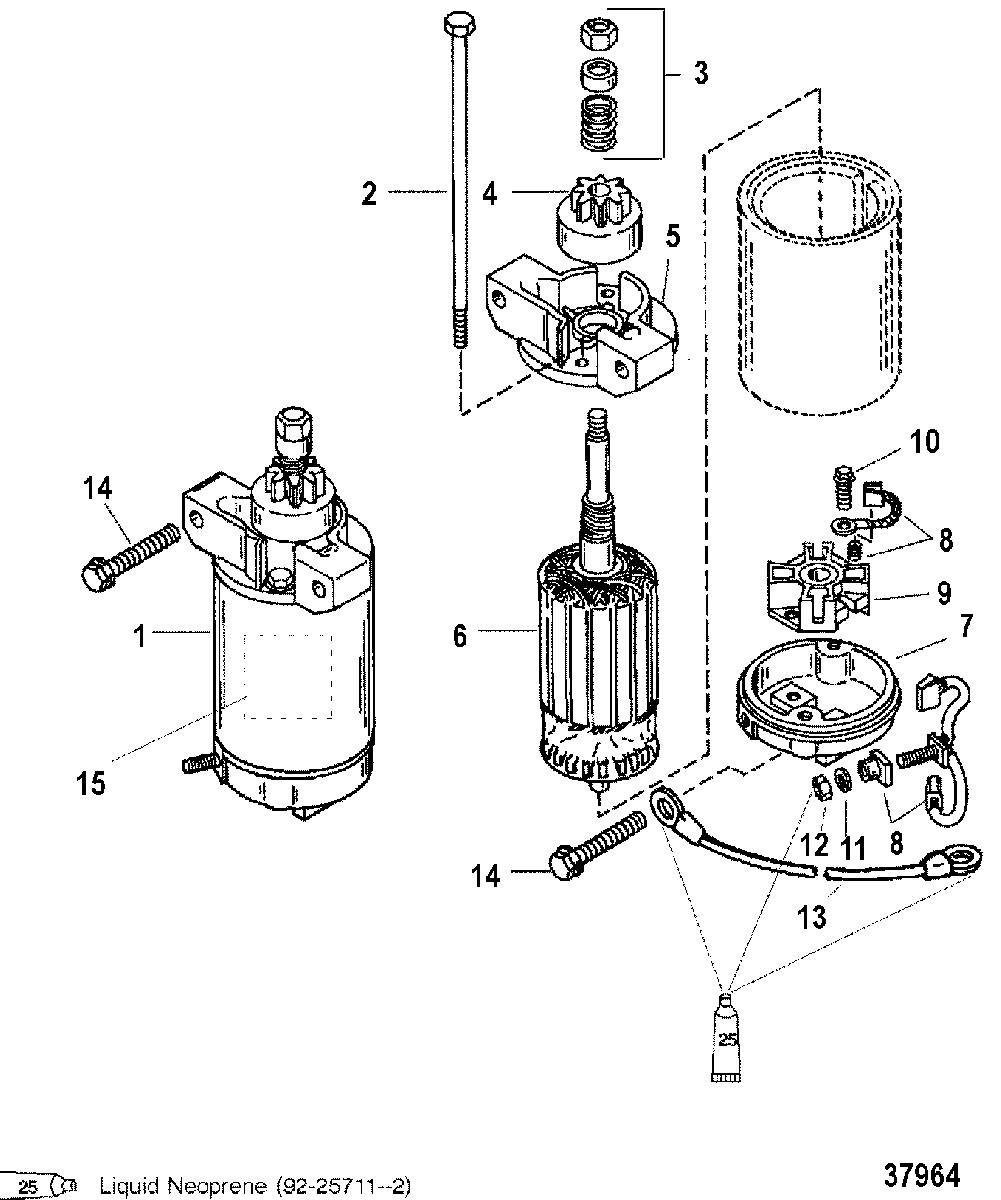

STARTER MOTOR для Mariner - 40 (3 CYL.) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
150-893890T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
210-965661 THRU BOLTTHRU BOLT
-
390643 DRIVE KITDRIVE KIT
-
4685753 DRIVE ASSEMBLYDRIVE ASSEMBLY
-
58236392 DRIVE CAPDRIVE CAP
-
6965651 ARMATUREARMATURE
-
78119011 CAP, CommutatorCAP, Commutator
-
8898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
9898265014 HOLDERHOLDER
-
10F15158 SCREWSCREW
-
1113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1211-64015 NUT, (.250-20)NUT, (.250-20)
-
1384-88439A9 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
1410-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
1537-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
