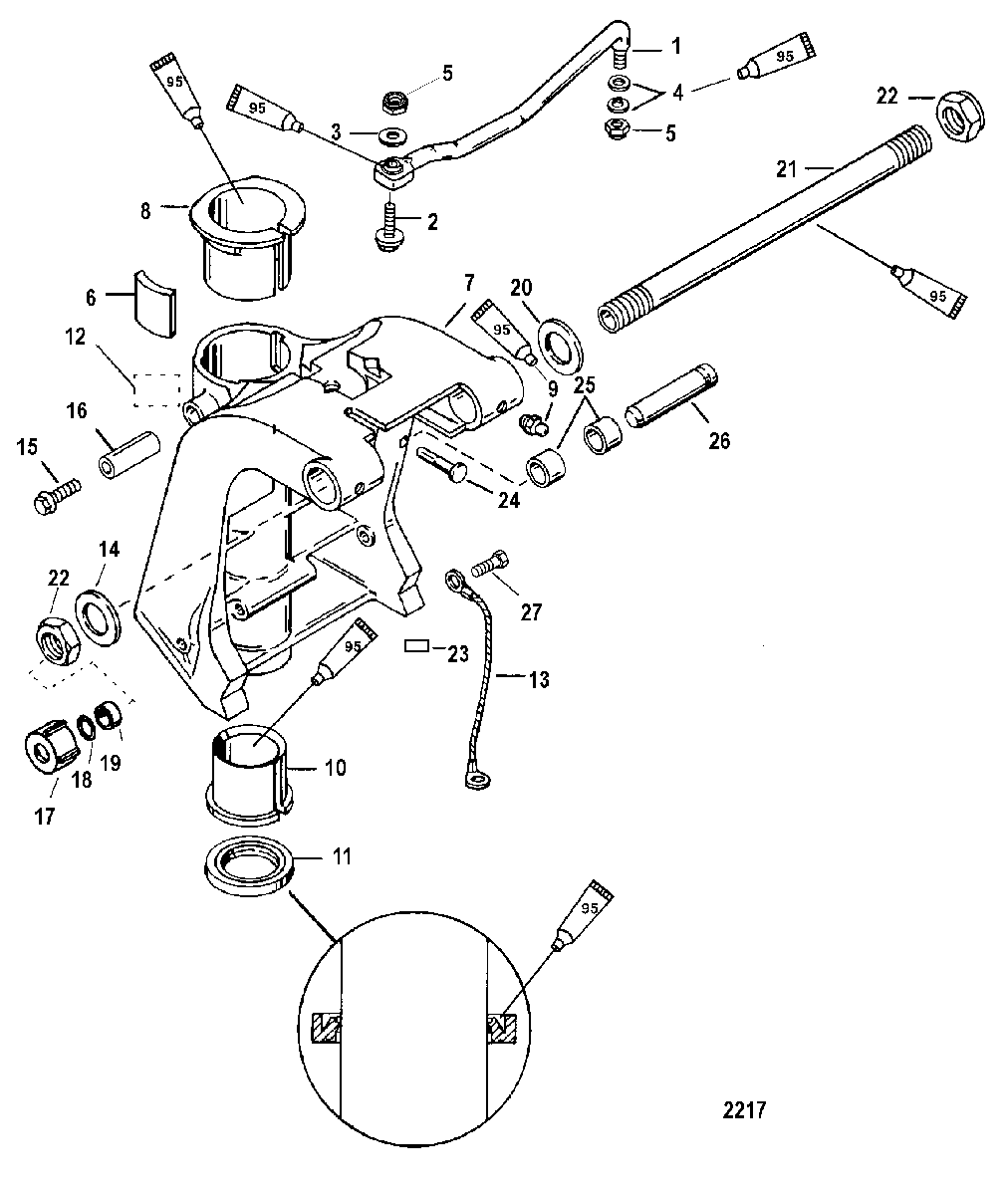

SWIVEL BRACKET для Mariner - 40 (3 CYL.) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
119608A14 LINK ROD
NON HANDLE VERSIONSLINK ROD
NON HANDLE VERSIONS -
210-823919 SCREW, (.375-24 x 1.500)
NON HANDLE VERSIONSSCREW, (.375-24 x 1.500)
NON HANDLE VERSIONS -
312-8M0109680 WASHER, (.390 x .546 x .12)
NON HANDLE VERSIONSWASHER, (.390 x .546 x .12)
NON HANDLE VERSIONS -
412-37828 WASHER, (.390 x .625 x .062) Stainless Steel
NON HANDLE VERSIONSWASHER, (.390 x .625 x .062) Stainless Steel
NON HANDLE VERSIONS -
511-8M0042636 NUT, (.375-24)
NON HANDLE VERSIONSNUT, (.375-24)
NON HANDLE VERSIONS -
6822397 PUCK
NON HANDLE VERSIONSPUCK
NON HANDLE VERSIONS -
73410-827402T5 SWIVEL BRACKET ASSEMBLY
(BLACK)SWIVEL BRACKET ASSEMBLY
(BLACK) -
73410-827402T5 SWIVEL BRACKET ASSEMBLY
(GRAY)SWIVEL BRACKET ASSEMBLY
(GRAY) -
823-8217711 BUSHING (UPPER)BUSHING (UPPER)
-
922-74036 FITTING, Grease
(QTY. OF 4 ON HANDLE VERSION)FITTING, Grease
(QTY. OF 4 ON HANDLE VERSION) -
1023-821777 BUSHING (LOWER)BUSHING (LOWER)
-
1126-822404 SEALSEAL
-
12NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
1388238A11 CABLE ASSEMBLYCABLE ASSEMBLY
-
1412-19619 WASHERWASHER
-
1510-4008910 SCREW, (M8 x 10) Stainless Steel
(HANDLE VERSIONS)SCREW, (M8 x 10) Stainless Steel
(HANDLE VERSIONS) -
1510-40011149 SCREW, (M8 x 25) Stainless Steel
(NON-HANDLE VERSIONS)SCREW, (M8 x 25) Stainless Steel
(NON-HANDLE VERSIONS) -
168282451 SEAL
NON-HANDLE VERSIONSSEAL
NON-HANDLE VERSIONS -
1719624A1 SEAL KIT
NON-HANDLE VERSIONSSEAL KIT
NON-HANDLE VERSIONS -
1825-29619 O-RING, (.583 x .103)
NON-HANDLE VERSIONSO-RING, (.583 x .103)
NON-HANDLE VERSIONS -
1923-78861 SPACER
NON-HANDLE VERSIONSSPACER
NON-HANDLE VERSIONS -
2012-19619 WASHERWASHER
-
218M0041938 TILT TUBETILT TUBE
-
2211-826164 NUT, (.875-14)NUT, (.875-14)
-
2337-8237011 DECAL, Co-PilotDECAL, Co-Pilot
-
2417-821539 PIN, TrilobePIN, Trilobe
-
2523-823507 BUSHINGBUSHING
-
2617-822480 PIN, Pivot (UPPER)PIN, Pivot (UPPER)
-
2710-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
