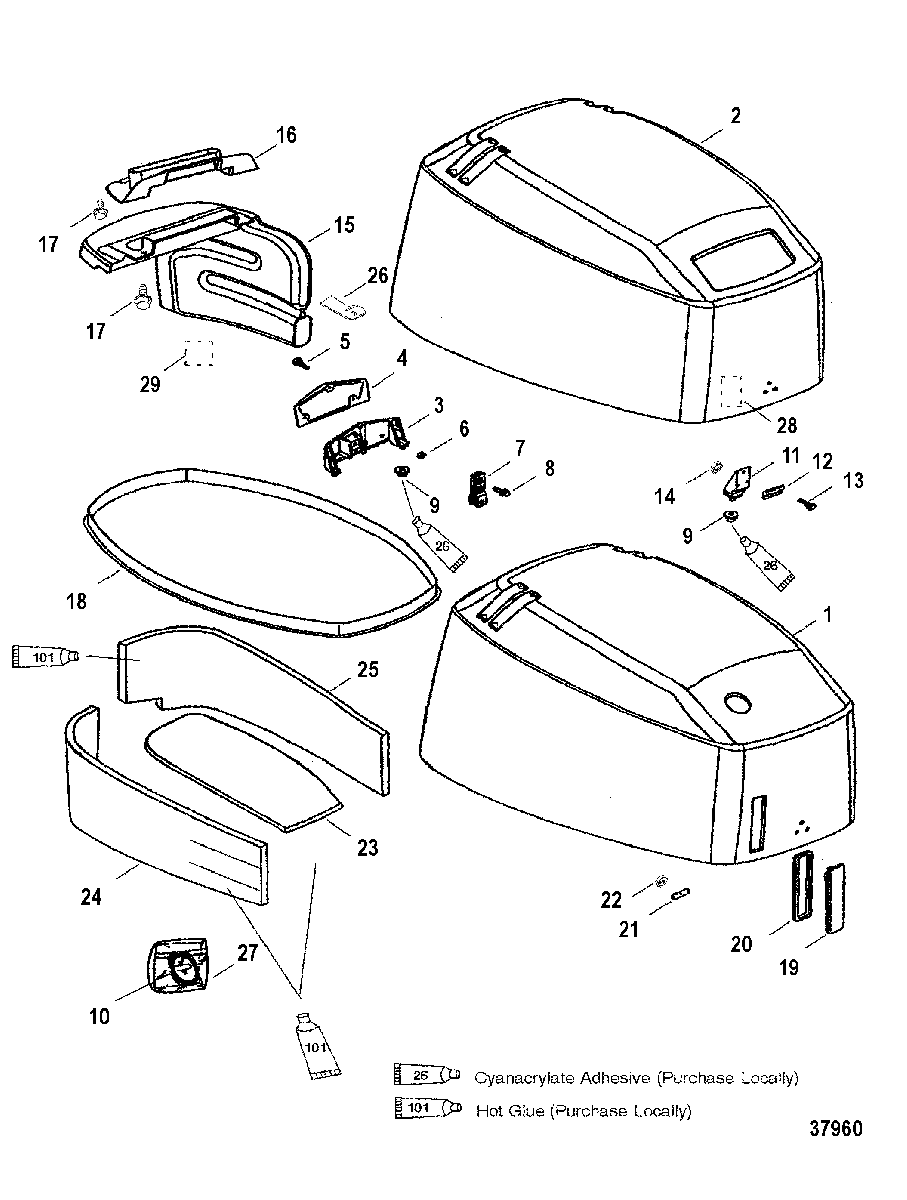

TOP COWL для Mariner - 40 (3 CYL.) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1100-8M0107150 TOP COWL ASSEMBLY
(BLACK) ELECTRICTOP COWL ASSEMBLY
(BLACK) ELECTRIC -
14019-825239T14 TOP COWL ASSEMBLY
(SILVER) ELECTRICTOP COWL ASSEMBLY
(SILVER) ELECTRIC -
24019-825239T11 TOP COWL ASSEMBLY
(BLACK) MANUALTOP COWL ASSEMBLY
(BLACK) MANUAL -
24019-825239T12 TOP COWL ASSEMBLY
(SILVER) MANUALTOP COWL ASSEMBLY
(SILVER) MANUAL -
38M0041044 BRACKET, Cowl Support
(REAR)BRACKET, Cowl Support
(REAR) -
4828433T SPACER, BracketSPACER, Bracket
-
510-83208630 SCREWSCREW
-
611-400632 NUTNUT
-
7893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
810-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
9813546003 MOUNTMOUNT
-
1047341A11 ROPE AND HANDLE KIT, Manual/Emergency Start
(MANUAL STARTING)ROPE AND HANDLE KIT, Manual/Emergency Start
(MANUAL STARTING) -
118M0041646 BRACKET, Cowl Support - FrontBRACKET, Cowl Support - Front
-
12828503 LATCH KEEPERLATCH KEEPER
-
1310-83208616 SCREWSCREW
-
1411-400632 NUTNUT
-
158M0038217 DUCT, Air InletDUCT, Air Inlet
-
16NSS NOT SOLD SEPARATE, Induction InsertNOT SOLD SEPARATE, Induction Insert
-
1710-F2317 SCREW, (.250-20 x .875)SCREW, (.250-20 x .875)
-
188M0043404 SEALSEAL
-
19813504A1 GAUGE KIT, Oil Level
ELECTRICGAUGE KIT, Oil Level
ELECTRIC -
20813505 GROMMET
ELECTRICGROMMET
ELECTRIC -
21113171 RETAINER
ELECTRICRETAINER
ELECTRIC -
2211-113161 NUT
ELECTRICNUT
ELECTRIC -
23828180A02 SOUND BLANKET KIT (ALL)SOUND BLANKET KIT (ALL)
-
24NSS NOT SOLD SEPARATE, Sound Blanket
(STBD. & REAR)NOT SOLD SEPARATE, Sound Blanket
(STBD. & REAR) -
25NSS NOT SOLD SEPARATE, Sound Blanket
(PORT & REAR)NOT SOLD SEPARATE, Sound Blanket
(PORT & REAR) -
26NSS NOT SOLD SEPARATE, TapeNOT SOLD SEPARATE, Tape
-
27NSS NOT SOLD SEPARATE, EnvelopeNOT SOLD SEPARATE, Envelope
-
2837-82409316 DECAL, F-N-R ShiftDECAL, F-N-R Shift
-
2937-855577A8 DECAL, EPA Label Information (TOP COWL INLET DUCT)DECAL, EPA Label Information (TOP COWL INLET DUCT)
