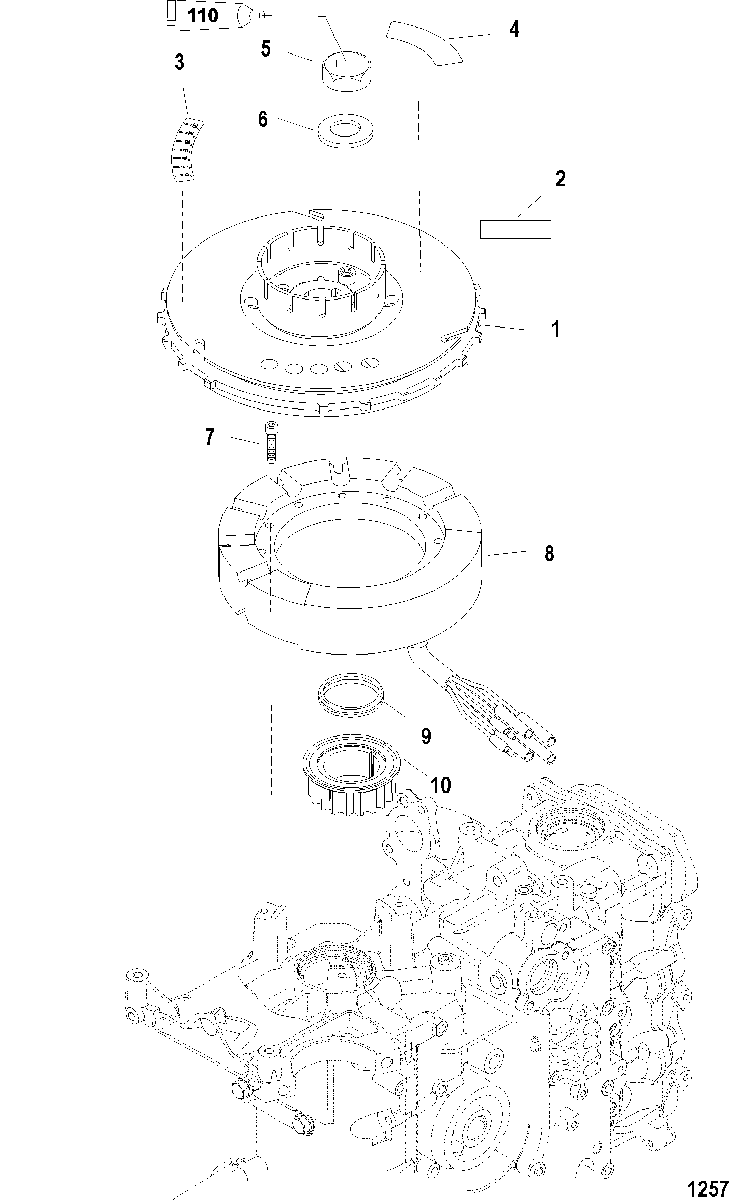

Flywheel для Mariner - 40 CARB (3 CYL.)(4-STROKE) 0P401000 & Up
-
№АртикулНазвание
-
1200-8M0118174 FLYWHEELFLYWHEEL
-
2NSS NOT SOLD SEPARATE, Decal-Warning Spinning FlywheelNOT SOLD SEPARATE, Decal-Warning Spinning Flywheel
-
3NSS NOT SOLD SEPARATE, Decal-Timing MarksNOT SOLD SEPARATE, Decal-Timing Marks
-
4NSS NOT SOLD SEPARATE, Decal-Warning-NeutralNOT SOLD SEPARATE, Decal-Warning-Neutral
-
511-893789 NUTNUT
-
612-893762 WASHERWASHER
-
710-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
8398-852386T6 STATORSTATOR
-
9834838 LOAD RINGLOAD RING
-
10833102T GEAR, DriveGEAR, Drive
-
-61-803017T01 POWERHEAD ASSEMBLY
(Short)POWERHEAD ASSEMBLY
(Short) -
-61-803016T06 POWERHEAD ASSEMBLY
(Long)POWERHEAD ASSEMBLY
(Long)
