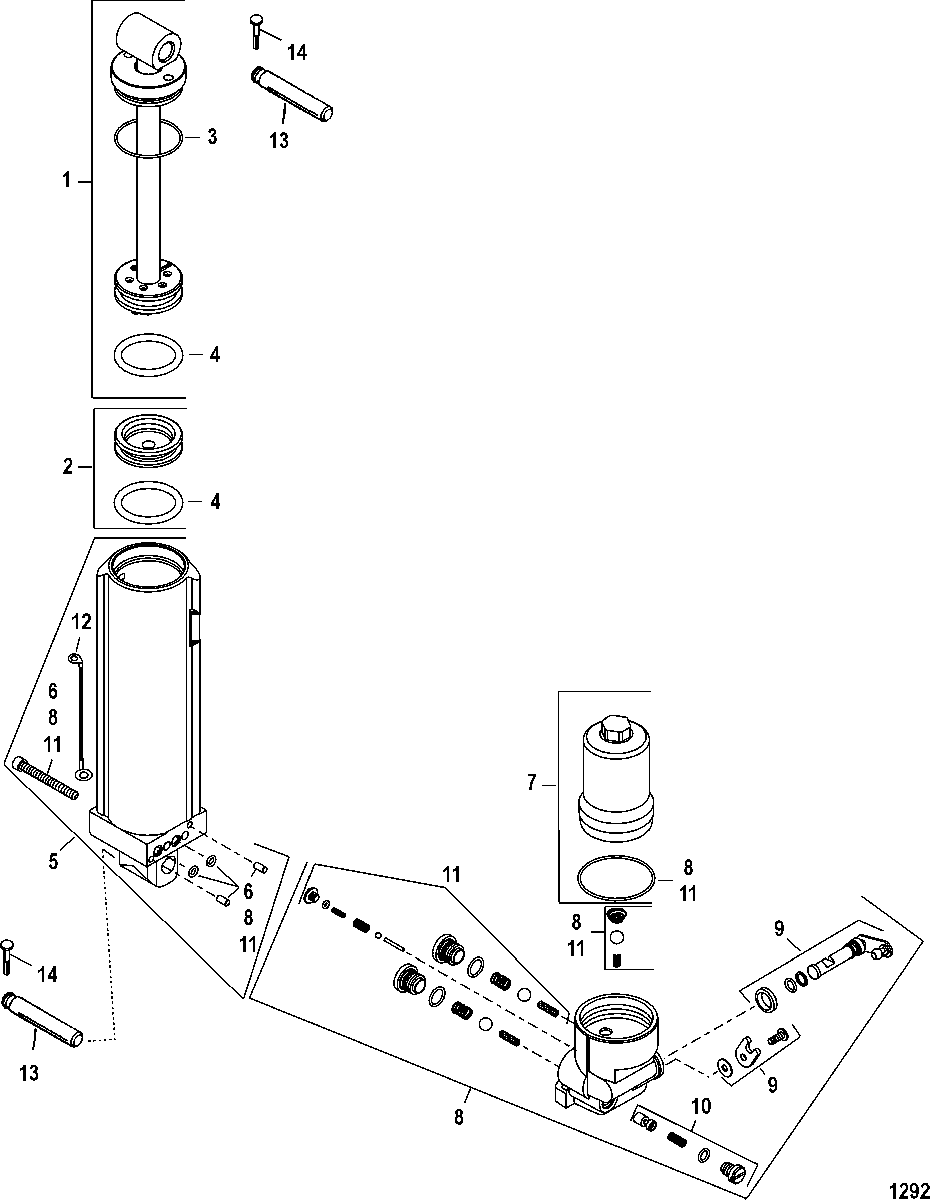

Manual Tilt для Mariner - 40 CARB (3 CYL.)(4-STROKE) 0P401000 & Up
-
№АртикулНазвание
-
-8M0118570 MANUAL TRIM ASSEMBLYMANUAL TRIM ASSEMBLY
-
18M0118572 SHOCK ROD ASSEMBLYSHOCK ROD ASSEMBLY
-
2893903A01 PISTON ASSEMBLY, Trim MemoryPISTON ASSEMBLY, Trim Memory
-
325-893917A01 O-RING KIT, CylinderO-RING KIT, Cylinder
-
4NSS NOT SOLD SEPARATE, O RingNOT SOLD SEPARATE, O Ring
-
5893918A01 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
6893919A01 SCREW AND SEAL KITSCREW AND SEAL KIT
-
7893920A01 ACCUMULATOR ASSEMBLYACCUMULATOR ASSEMBLY
-
88M0118574 VALVE BODY ASSEMBLYVALVE BODY ASSEMBLY
-
9893923A01 CAM KITCAM KIT
-
10893924A01 VALVE KIT, VelocityVALVE KIT, Velocity
-
11893925A01 REPAIR KITREPAIR KIT
-
1288238A13 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
-25-893922A01 O-RING KITO-RING KIT
-
1317-19607 PINPIN
-
1417-821539 PIN, TrilobePIN, Trilobe
