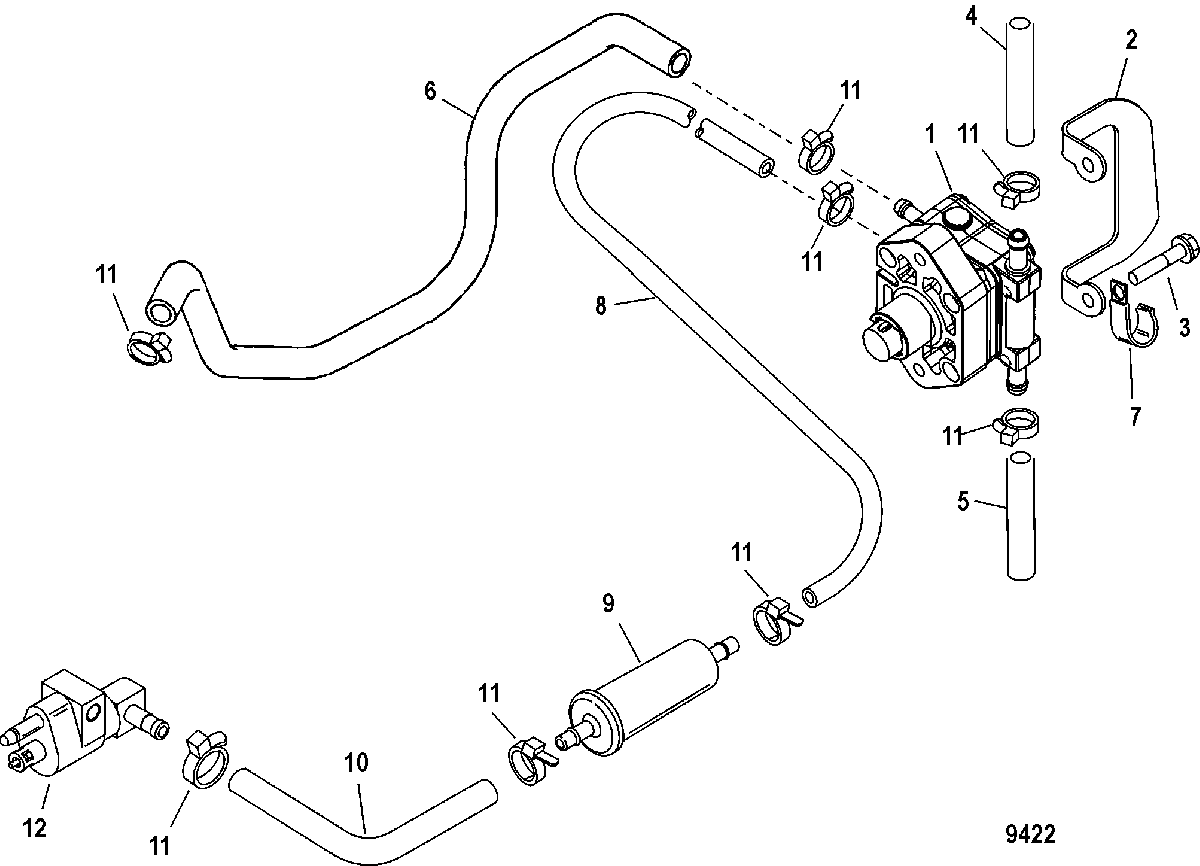

Fuel Pump для Mariner - 40 CARB (3 CYL.)(4-STROKE) 0P401000 & Up
-
№АртикулНазвание
-
18M0141844 PUMP, Fuel (Sold Complete Only)PUMP, Fuel (Sold Complete Only)
-
28M0007776 DEFLECTOR, CowlDEFLECTOR, Cowl
-
310-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
432-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 13 Inches) To Block Exhaust CoverTUBING, (.312) (70.00 Inches Bulk) (Cut to 13 Inches) To Block Exhaust Cover
-
532-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches) To TelltaleTUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches) To Telltale
-
632-856611 HOSE and SLEEVE, To Float BowlHOSE and SLEEVE, To Float Bowl
-
754-55098 J CLIPJ CLIP
-
832-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 14 Inches)HOSE, (57.00 Inches Bulk) (Cut to 14 Inches)
-
935-877565T1 FILTER, FuelFILTER, Fuel
-
1032-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 19 Inches)HOSE, (57.00 Inches Bulk) (Cut to 19 Inches)
-
1154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1222-816856A4 CONNECTOR ASSEMBLY, FuelCONNECTOR ASSEMBLY, Fuel
-
-25-16524 O-RING, Fuel ConnectorO-RING, Fuel Connector
