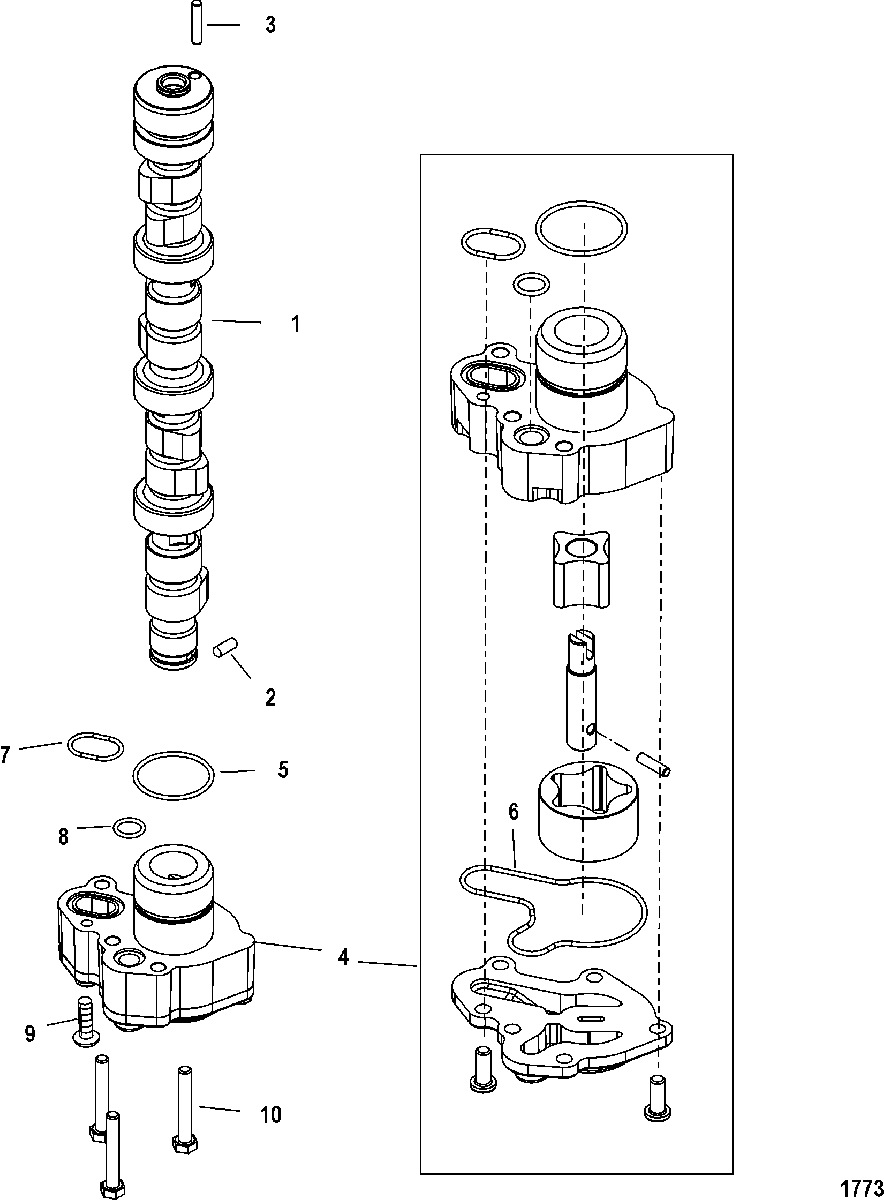

Camshaft/Oil Pump для Mariner - 40 EFI (3 CYL.)(4-STROKE) 1B227000 THRU 1B344398
-
№АртикулНазвание
-
1402-834781T1 CAMSHAFTCAMSHAFT
-
217-826149 PINPIN
-
317-878183 PIN, DowelPIN, Dowel
-
4857087T1 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
525-857096 O-RINGO-RING
-
6NSS NOT SOLD SEPARATE, O RingNOT SOLD SEPARATE, O Ring
-
725-857094 O-RINGO-RING
-
825-857093 O-RINGO-RING
-
910-875206 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1010-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
-893504T01 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
-27-859352A02 GASKET SETGASKET SET
