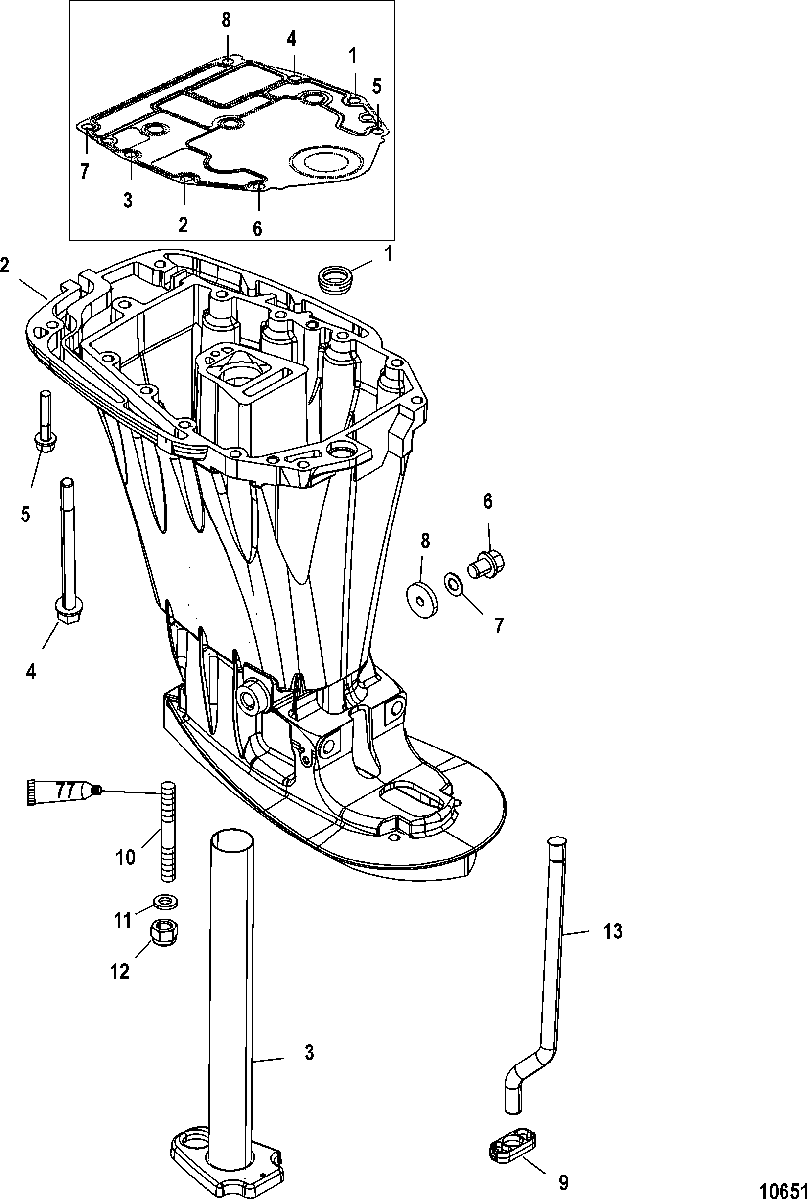

Driveshaft Housing(Short) для Mariner - 40 EFI (3 CYL.)(4-STROKE) 1B227000 THRU 1B344398
-
№АртикулНазвание
-
142941001 SEAL, Water TubeSEAL, Water Tube
-
21501-850168T5 HOUSING, DriveshaftHOUSING, Driveshaft
-
3NSS NOT SOLD SEPARATE, Exhaust PipeNOT SOLD SEPARATE, Exhaust Pipe
-
410-824459110 SCREW, (M8 x 110) Stainless SteelSCREW, (M8 x 110) Stainless Steel
-
510-88960845 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
68288181 PLUG, DrainPLUG, Drain
-
727-828816 GASKETGASKET
-
8826276 BUMPERBUMPER
-
954-828529 GUIDEGUIDE
-
1016-823984 STUD, (M10 x 50)STUD, (M10 x 50)
-
1112-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
1211-40140 NUT, (M10)NUT, (M10)
-
1332-897970A01 TUBE, WaterTUBE, Water
