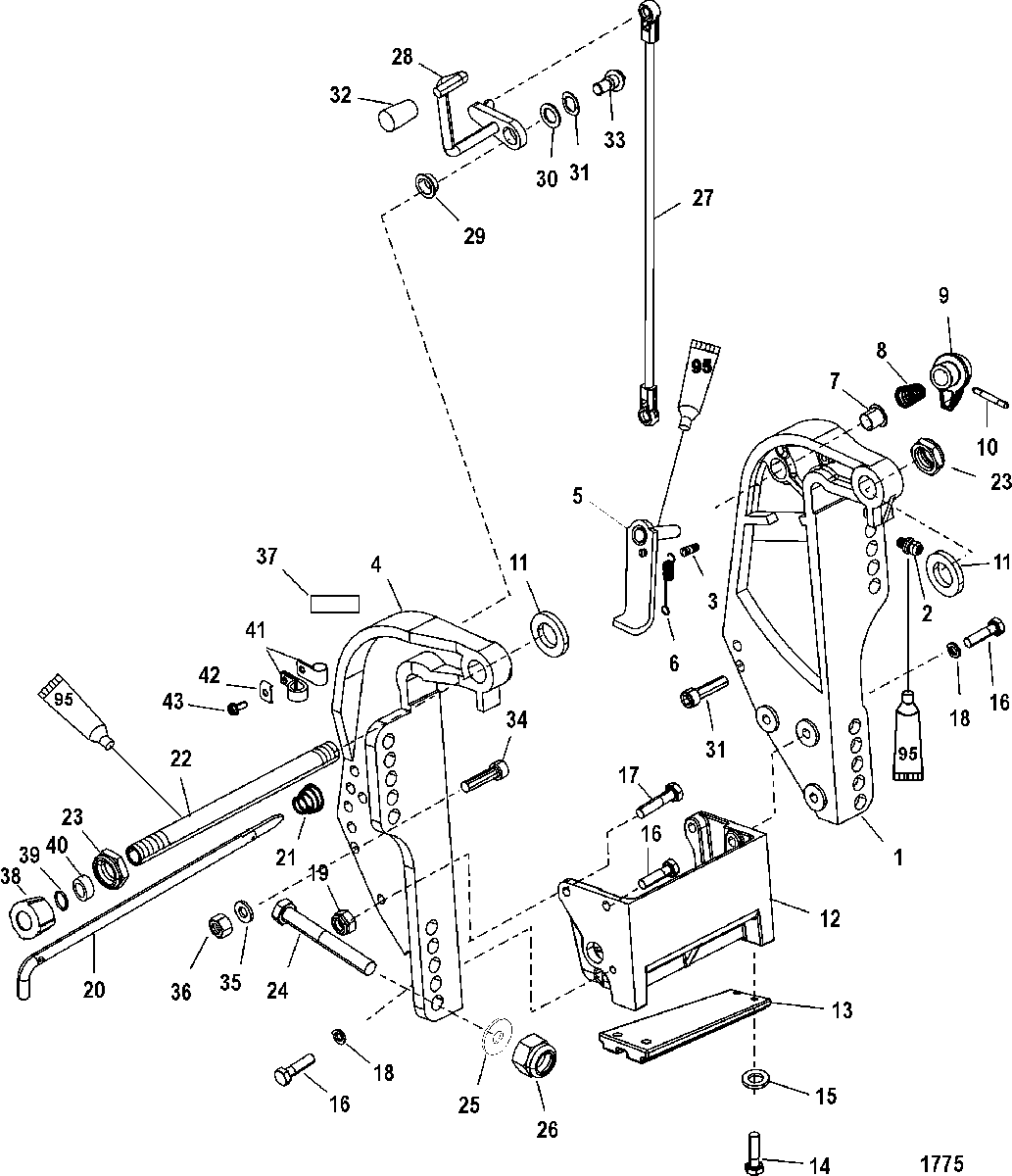

Transom Bracket для Mariner - 40 EFI (3 CYL.)(4-STROKE) 1B227000 THRU 1B344398

№

Артикул

Название
1

3418-822866T04 BRACKET, Transom - Port

BRACKET, Transom - Port

55 570 ₽
2

22-98727 FITTING, Grease

FITTING, Grease

400 ₽
3

17-99604 PIN, Groove

PIN, Groove

340 ₽
4

3418-822865T05 BRACKET, Transom - Starboard

BRACKET, Transom - Starboard

51 350 ₽
5

893704T01 LEVER ASSEMBLY, Tilt Lock

LEVER ASSEMBLY, Tilt Lock

16 190 ₽
6

24-99622 SPRING

SPRING

550 ₽
7

23-65830 NYLINER

NYLINER

320 ₽
8

24-812708 SPRING

SPRING

330 ₽
9

812709 KNOB

KNOB

1 240 ₽
10

17-99615 PIN, Groove

PIN, Groove

320 ₽
11

12-19619 WASHER

WASHER

360 ₽
12

18486A08 BRACKET, Anchor
SN# 1B270274 & Below

BRACKET, Anchor
SN# 1B270274 & Below

41 720 ₽
12

18486A08 BRACKET KIT, Anchor
SN# 1B270275 & Up

BRACKET KIT, Anchor
SN# 1B270275 & Up

41 720 ₽
13

97-818298Q1 ANODE KIT

ANODE KIT

2 020 ₽
14

10-4000330 SCREW, (M6 x 25)

SCREW, (M6 x 25)

250 ₽
15

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel

120 ₽
16

10-4000354 SCREW, (M8 x 30)
SN# 1B270274 & Below

SCREW, (M8 x 30)
SN# 1B270274 & Below

280 ₽
16

10-85594030 SCREW, (M8 x 30)
(Included with Anchor Bracket Kit)

SCREW, (M8 x 30)
(Included with Anchor Bracket Kit)

190 ₽
17

10-4000355 SCREW, (M8 x 35)
SN# 1B270274 & Below

SCREW, (M8 x 35)
SN# 1B270274 & Below

280 ₽
17

10-8M0000586 SCREW, (M8 x 35)
(Included with Anchor Bracket Kit) SN# 1B270275 & Up

SCREW, (M8 x 35)
(Included with Anchor Bracket Kit) SN# 1B270275 & Up

520 ₽
18

13-400257 LOCKWASHER, (M8)
SN# 1B270274 & Below

LOCKWASHER, (M8)
SN# 1B270274 & Below

260 ₽
18

12-843108 WASHER, (.330 x .560 x .060) Stainless Steel
(Included with Anchor Bracket Kit) SN# 1B270275 & Up

WASHER, (.330 x .560 x .060) Stainless Steel
(Included with Anchor Bracket Kit) SN# 1B270275 & Up

60 ₽
19

11-401388 NUT, (M8) Stainless Steel

NUT, (M8) Stainless Steel

260 ₽
20

17-8M0026068 PIN ASSEMBLY, Tilt Lock (Non Power Trim)

PIN ASSEMBLY, Tilt Lock (Non Power Trim)

4 970 ₽
21

24-821461 SPRING (Non Power Trim)

SPRING (Non Power Trim)

140 ₽
22

8M0041938 TILT TUBE

TILT TUBE

9 720 ₽
23

11-858869 NUT, (.875-14)

NUT, (.875-14)

330 ₽
24

10-814259 SCREW, (.500-20 x 4.00)

SCREW, (.500-20 x 4.00)

1 530 ₽
25

12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel

WASHER, (1.5 x 3.05 x 0.13) Stainless Steel

260 ₽
26

11-82671117 NUT, (.500-20)

NUT, (.500-20)

560 ₽
27

8M0084737 LINK (Non Power Trim)

LINK (Non Power Trim)

2 850 ₽
28

19615A05 LEVER ASSEMBLY, Tilt (Non Power Trim)

LEVER ASSEMBLY, Tilt (Non Power Trim)

5 270 ₽
29

23-812707 BUSHING (Non Power Trim)

BUSHING (Non Power Trim)

480 ₽
30

12-8M0042643 WASHER, (.520 x .850 x .060) Nylon - Black (Non Power Trim)

WASHER, (.520 x .850 x .060) Nylon - Black (Non Power Trim)

130 ₽
31

13-99611 WAVE WASHER (Non Power Trim)

WAVE WASHER (Non Power Trim)

140 ₽
32

8M0007469 TILT KNOB (Non Power Trim)

TILT KNOB (Non Power Trim)

950 ₽
33

10-19611 SCREW, (.375-16 x .62) (Non Power Trim)

SCREW, (.375-16 x .62) (Non Power Trim)

1 050 ₽
34

10-4009040 SCREW, (M10 x 40) Stainless Steel

SCREW, (M10 x 40) Stainless Steel

960 ₽
35

12-4002319 WASHER

WASHER

200 ₽
36

11-40140 NUT, (M10)

NUT, (M10)

380 ₽
37

37-830253 DECAL, Tilt Lock (Non Power Trim)

DECAL, Tilt Lock (Non Power Trim)

360 ₽
38

19624A1 SEAL KIT (Non Handle)

SEAL KIT (Non Handle)

960 ₽
39

25-29619 O-RING, (.583 x .103) (Non Handle)

O-RING, (.583 x .103) (Non Handle)

170 ₽
40

23-78861 SPACER (Non Handle)

SPACER (Non Handle)

120 ₽
41

54-22740 CLIP (Power Trim)

CLIP (Power Trim)

320 ₽
42

8M0084613 C WASHER (Power Trim)

C WASHER (Power Trim)

100 ₽
43

10-878609 SCREW, (#10-16 x .600) (Power Trim)

SCREW, (#10-16 x .600) (Power Trim)

150 ₽
