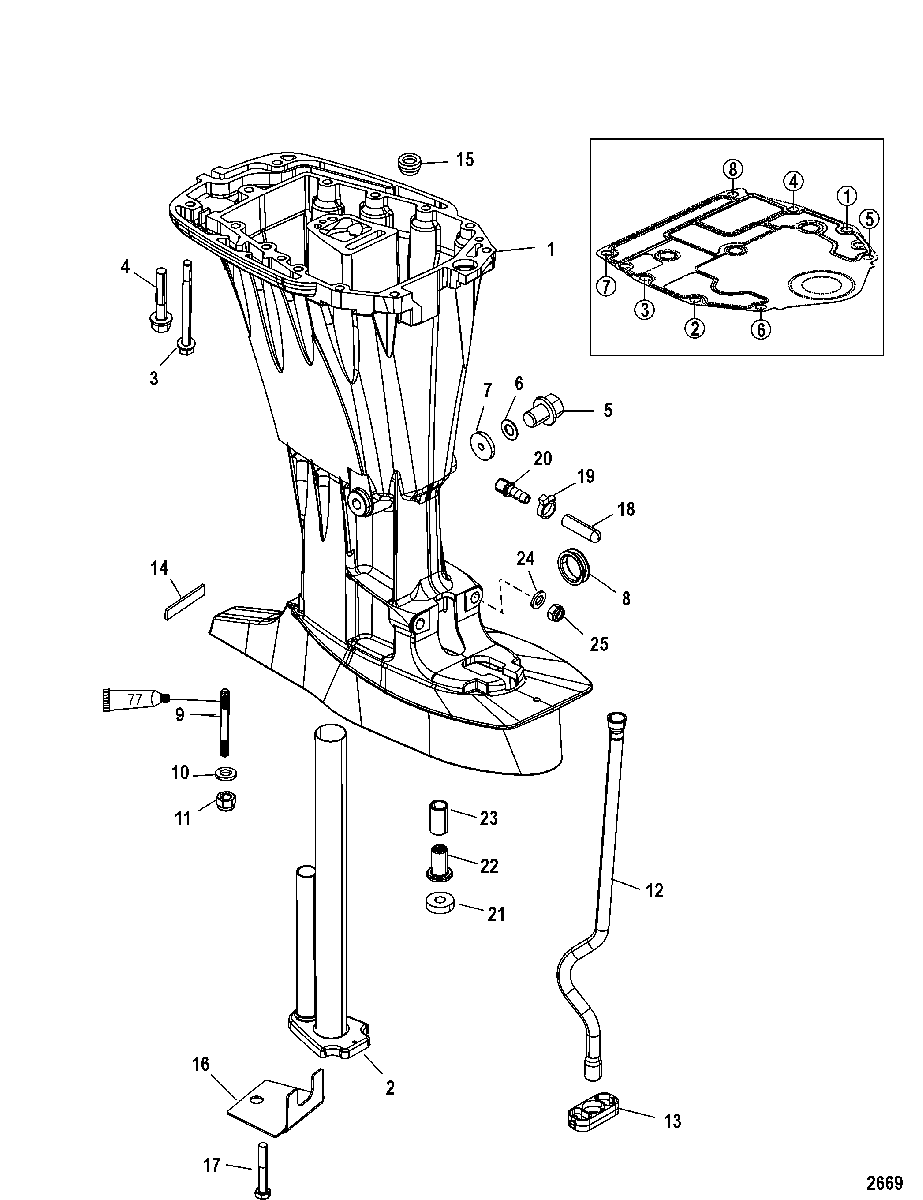

Driveshaft Housing для Mariner - 40 EFI (4 CYL.)(4-STROKE) 0P401000 THRU 0P515896
-
№АртикулНазвание
-
11500-8M0118178 HOUSING, Driveshaft
SN# 1C046581 & BelowHOUSING, Driveshaft
SN# 1C046581 & Below -
11500-8M0118178 HOUSING, Driveshaft
SN# 0P502069 & BelowHOUSING, Driveshaft
SN# 0P502069 & Below -
11500-8M0118178 HOUSING, Driveshaft - Long
SN# 1C046582 & UpHOUSING, Driveshaft - Long
SN# 1C046582 & Up -
11500-8M0118178 HOUSING, Driveshaft - Long
SN# 0P502070 & UpHOUSING, Driveshaft - Long
SN# 0P502070 & Up -
2825220T06 PIPE, ExhaustPIPE, Exhaust
-
310-824459110 SCREW, (M8 x 110) Stainless SteelSCREW, (M8 x 110) Stainless Steel
-
410-88960845 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
58288181 PLUG, DrainPLUG, Drain
-
627-828816 GASKETGASKET
-
7826276 BUMPERBUMPER
-
825-8M4504002 GROMMETGROMMET
-
916-823984 STUD, (M10 x 50)
(Non-Bigfoot)STUD, (M10 x 50)
(Non-Bigfoot) -
916-903501 STUD, (M10 x 100)
(Bigfoot-Long)STUD, (M10 x 100)
(Bigfoot-Long) -
1012-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
1111-40140 NUT, (M10)NUT, (M10)
-
1232-897971A01 TUBE, WaterTUBE, Water
-
1354-828529 GUIDEGUIDE
-
148M0043364 BUMPERBUMPER
-
1542941001 SEAL, Water TubeSEAL, Water Tube
-
168M4503628 PLATE, Driveshaft HousingPLATE, Driveshaft Housing
-
1710-1993325 SCREW, (M10 x 25 MM)SCREW, (M10 x 25 MM)
-
1819-892286 CAPCAP
-
1954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2022-13035002 FITTINGFITTING
-
2123-813745 SPACERSPACER
-
2243585 COUPLINGCOUPLING
-
2323-855623 BUSHINGBUSHING
-
2412-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
2511-40140 NUT, (M10)NUT, (M10)
