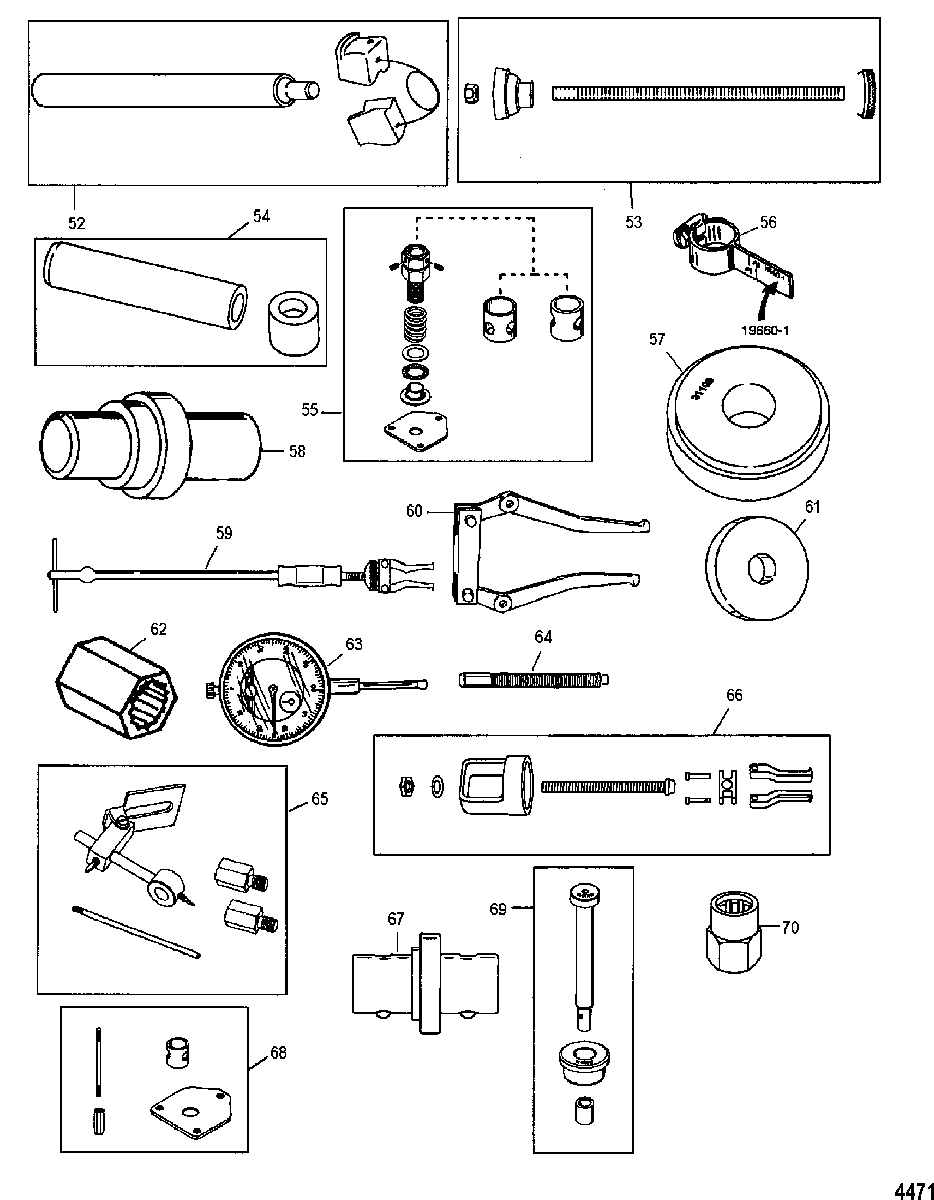

Tools 3 для Mariner - 40 EFI (4 CYL.)(4-STROKE) 0P401000 THRU 0P515896
-
№АртикулНазвание
-
5291-14308T02 TOOL KIT, Bearing RaceTOOL KIT, Bearing Race
-
5391-14309T02 INSTALLATION TOOL, BearingINSTALLATION TOOL, Bearing
-
-91-889623 TOOL, Cup DriverTOOL, Cup Driver
-
5491-14310T1 WEAR SLEEVE INSTALLATION TOOLWEAR SLEEVE INSTALLATION TOOL
-
5591-14311A04 TOOL, PreloadTOOL, Preload
-
5691-196601 INDICATOR TOOL, BacklashINDICATOR TOOL, Backlash
-
-91-8M0053505 INDICATOR TOOL, Backlash (2.31:1 Gear Ratio)INDICATOR TOOL, Backlash (2.31:1 Gear Ratio)
-
5791-31106T MANDREL, Bearing Driver CupMANDREL, Bearing Driver Cup
-
5891-31108T DRIVER, Oil SealDRIVER, Oil Seal
-
5991-34569A1 PULLER ASSEMBLY, Slide HammerPULLER ASSEMBLY, Slide Hammer
-
6091-46086A1 PULLER JAW ASSEMBLYPULLER JAW ASSEMBLY
-
6191-37350T MANDRELMANDREL
-
6291-817070 HOLDING TOOL, DriveshaftHOLDING TOOL, Driveshaft
-
6391-58222A1 DIAL INDICATOR TOOLDIAL INDICATOR TOOL
-
6491-85716 PULLER TOOLPULLER TOOL
-
6591-83155 ADAPTER KIT, Dial IndicatorADAPTER KIT, Dial Indicator
-
6691-83165T PULLER ASSEMBLYPULLER ASSEMBLY
-
6791-856875A1 INSTALLATION TOOL, BearingINSTALLATION TOOL, Bearing
-
6891-817057A02 TOOL, Backlash IndicatorTOOL, Backlash Indicator
-
6991-817058A1 DRIVER TOOL, BearingDRIVER TOOL, Bearing
-
7091-877840A1 HOLDING TOOL, DriveshaftHOLDING TOOL, Driveshaft
