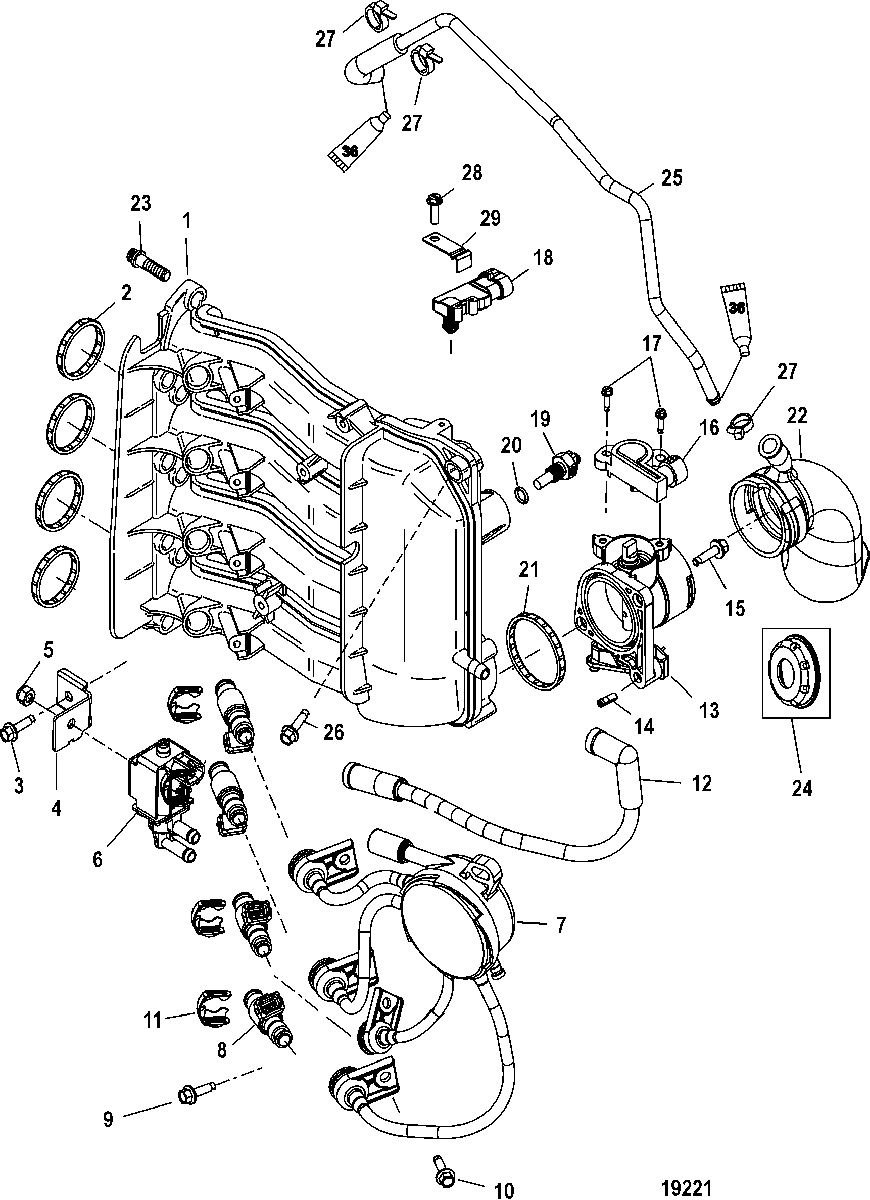

Intake Manifold для Mariner - 40 EFI (4 CYL.)(4-STROKE) 0P401000 THRU 0P515896
-
№АртикулНазвание
-
-877829T06 MANIFOLD ASSEMBLY, Intake - CompleteMANIFOLD ASSEMBLY, Intake - Complete
-
1877829T01 MANIFOLD, IntakeMANIFOLD, Intake
-
227-879866 GASKET SET
(Contains 4 Gaskets)GASKET SET
(Contains 4 Gaskets) -
310-881059 SCREWSCREW
-
4877834 BRACKETBRACKET
-
511-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
6877805T SOLENOID VALVESOLENOID VALVE
-
7879887T TFI SYSTEMTFI SYSTEM
-
8892123002 INJECTORINJECTOR
-
910-881059 SCREWSCREW
-
1010-881059 SCREWSCREW
-
1154-883460 CLIPCLIP
-
1232-877831A1 HOSEHOSE
-
13877831A02 THROTTLE BODY ASSEMBLYTHROTTLE BODY ASSEMBLY
-
1410-8M0000578 SCREW, AdjustmentSCREW, Adjustment
-
1510-881059 SCREWSCREW
-
168M0125617 SENSOR, PositionSENSOR, Position
-
1710-881060 SCREWSCREW
-
18854445 SENSOR, MAPSENSOR, MAP
-
19885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
2025-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
2127-879867 GASKETGASKET
-
22893521 ATTENUATORATTENUATOR
-
2310-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
248831483 RESTRICTOR
(50)RESTRICTOR
(50) -
248831482 RESTRICTOR
(40)RESTRICTOR
(40) -
2532-8M0113740 BREATHER HOSEBREATHER HOSE
-
2610-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2810-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
298M0007495 RETAINERRETAINER
-
-27-883599A02 GASKET SETGASKET SET
