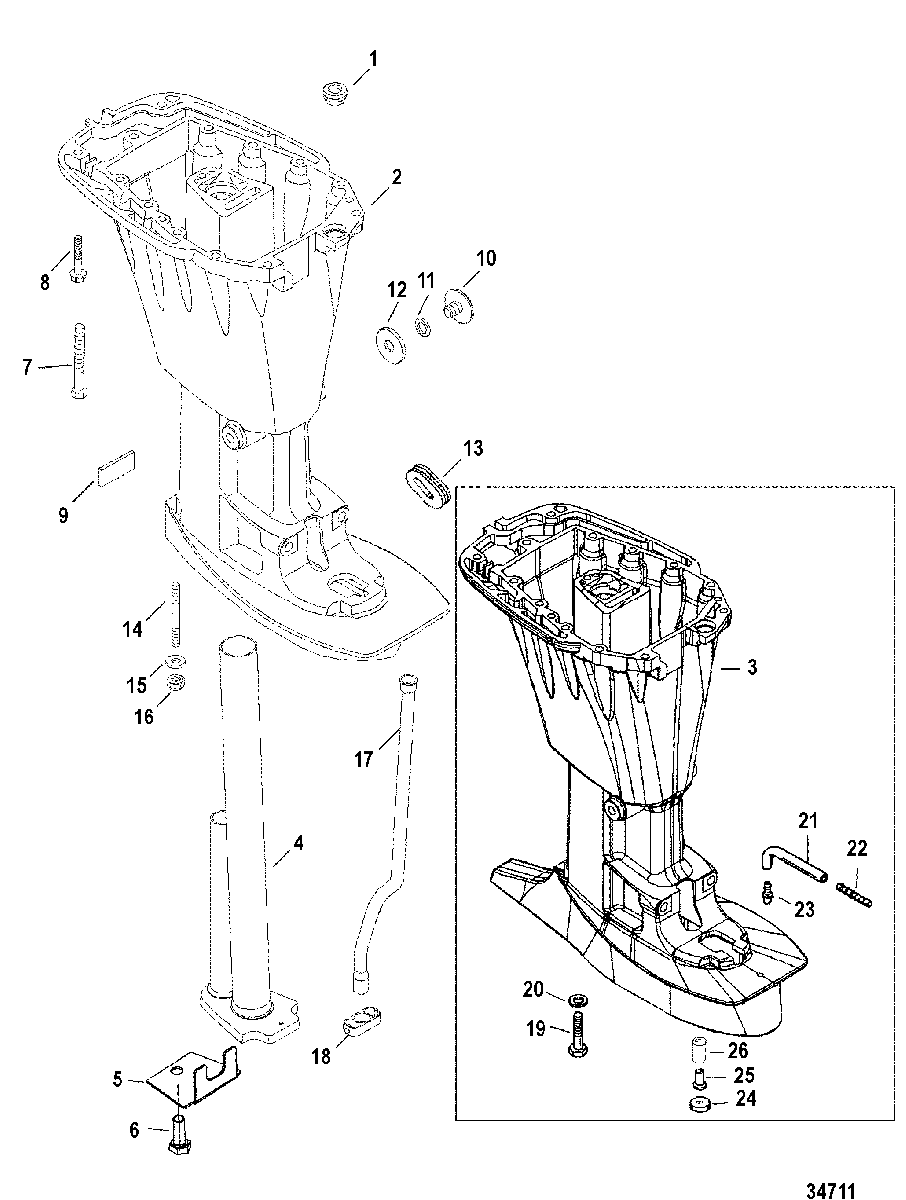

Driveshaft Housing для Mariner - 40 ITALY (4-STROKE) 0P017000 THRU 0P094499
-
№АртикулНазвание
-
142941001 SEAL, Water TubeSEAL, Water Tube
-
23532-825218T5 HOUSING ASSEMBLY, Driveshaft
Non Bigfoot-BlackHOUSING ASSEMBLY, Driveshaft
Non Bigfoot-Black -
23532-825218T5 HOUSING ASSEMBLY, Driveshaft
Non Bigfoot-GrayHOUSING ASSEMBLY, Driveshaft
Non Bigfoot-Gray -
31503-852421T3 HOUSING ASSEMBLY, Driveshaft
Bigfoot-BlackHOUSING ASSEMBLY, Driveshaft
Bigfoot-Black -
31503-852421T4 HOUSING ASSEMBLY, Driveshaft
Bigfoot-GrayHOUSING ASSEMBLY, Driveshaft
Bigfoot-Gray -
4825220T06 PIPE, ExhaustPIPE, Exhaust
-
58M4503628 PLATE
BigfootPLATE
Bigfoot -
610-1993325 SCREW, (M10 x 25 MM)
BigfootSCREW, (M10 x 25 MM)
Bigfoot -
710-824459110 SCREW, (M8 x 110) Stainless SteelSCREW, (M8 x 110) Stainless Steel
-
810-88960845 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
98M0043364 BUMPERBUMPER
-
108288181 PLUG, DrainPLUG, Drain
-
1127-828816 GASKETGASKET
-
12826276 BUMPERBUMPER
-
1325-8M4504002 GROMMETGROMMET
-
1416-823984 STUD, (M10 x 50)
Non BigfootSTUD, (M10 x 50)
Non Bigfoot -
1416-903501 STUD, (M10 x 100)
BigfootSTUD, (M10 x 100)
Bigfoot -
1512-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
1611-40140 NUT, (M10)NUT, (M10)
-
1732-897971A01 TUBE, WaterTUBE, Water
-
1854-828529 GUIDEGUIDE
-
1910-4000380 SCREW, (M10 x 45)
BigfootSCREW, (M10 x 45)
Bigfoot -
2012-856774 WASHER, (.406 x .750 x .105) Stainless Steel
BigfootWASHER, (.406 x .750 x .105) Stainless Steel
Bigfoot -
2122-85822A7 SPEEDOMETER PICK UP
BigfootSPEEDOMETER PICK UP
Bigfoot -
2222-85822T CONNECTOR, Straight
BigfootCONNECTOR, Straight
Bigfoot -
2322-13035002 FITTING
BigfootFITTING
Bigfoot -
2423-813745 SPACER
BigfootSPACER
Bigfoot -
2543585 COUPLING
BigfootCOUPLING
Bigfoot -
2623-855623 BUSHING
BigfootBUSHING
Bigfoot
