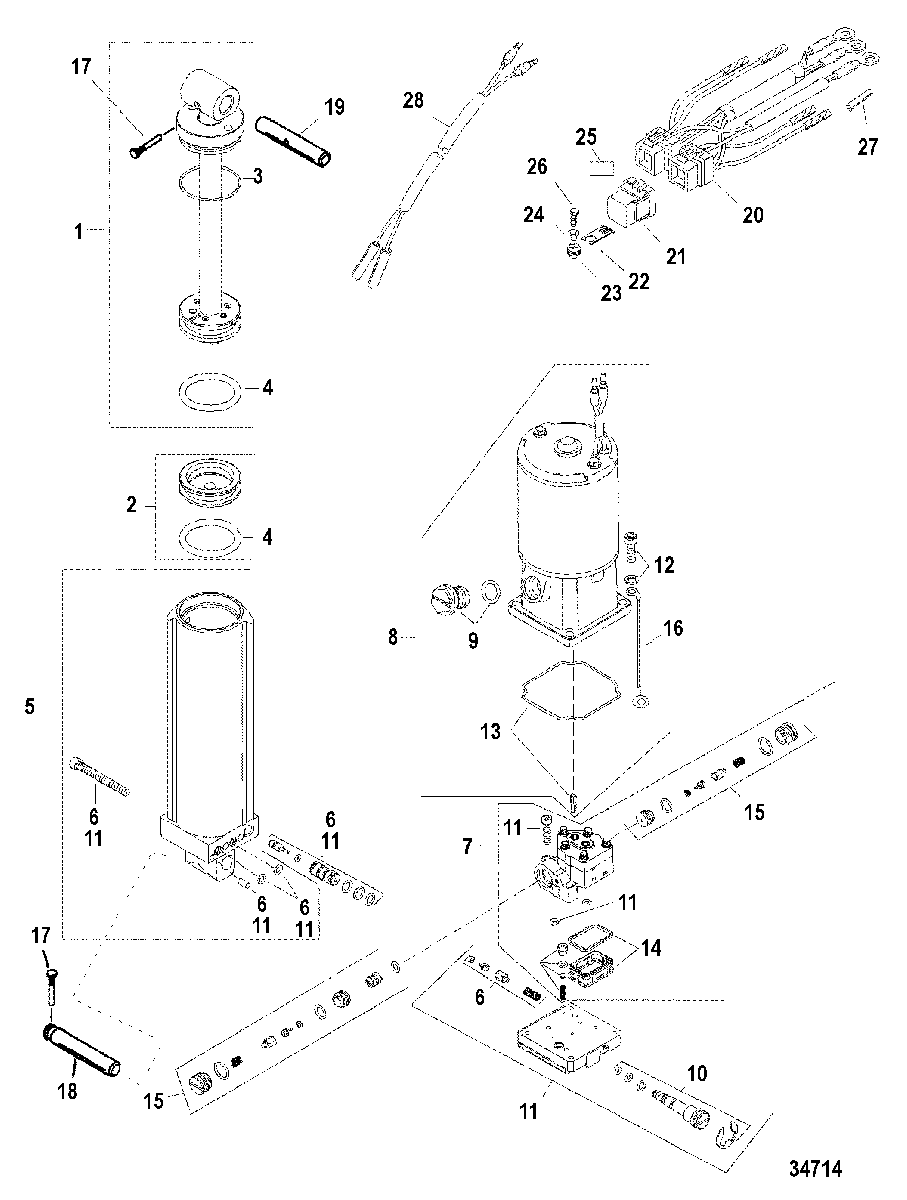

Power Trim Components для Mariner - 40 ITALY (4-STROKE) 0P017000 THRU 0P094499
-
№АртикулНазвание
-
-8M0055006 PUMP/MOTOR ASSEMBLY
SN# USA-0G835817/BEL-0P040426 & UpPUMP/MOTOR ASSEMBLY
SN# USA-0G835817/BEL-0P040426 & Up -
-830150T2 PUMP ASSEMBLY, Power Trim
SN# USA-0G835816/BEL-0P040425 & BelowPUMP ASSEMBLY, Power Trim
SN# USA-0G835816/BEL-0P040425 & Below -
-8M0055011 PUMP/MOTOR ASSEMBLY
BigfootPUMP/MOTOR ASSEMBLY
Bigfoot -
1893943A01 SHOCK ROD KIT
All USA SN# USA-0G835817 & UpSHOCK ROD KIT
All USA SN# USA-0G835817 & Up -
1893943A01 SHOCK ROD KIT
Bigfoot SN# BEL-0P040442 & UpSHOCK ROD KIT
Bigfoot SN# BEL-0P040442 & Up -
1893943A01 SHOCK ROD KIT
Non Bigfoot SN# BEL-0P040426 & UpSHOCK ROD KIT
Non Bigfoot SN# BEL-0P040426 & Up -
1893943A01 SHOCK ROD KIT
Non Bigfoot SN# USA-0G835816 & BelowSHOCK ROD KIT
Non Bigfoot SN# USA-0G835816 & Below -
1893943A01 SHOCK ROD KIT
Non Bigfoot SN# BEL-0P040425 & BelowSHOCK ROD KIT
Non Bigfoot SN# BEL-0P040425 & Below -
1855833 SHOCK ROD KIT
Bigfoot SN# USA-0G835816 & BelowSHOCK ROD KIT
Bigfoot SN# USA-0G835816 & Below -
1855833 SHOCK ROD KIT
Bigfoot SN# BEL-0P040441 & BelowSHOCK ROD KIT
Bigfoot SN# BEL-0P040441 & Below -
2810776A1 PISTON ASSEMBLY, MemoryPISTON ASSEMBLY, Memory
-
325-893902A01 O-RING KIT, RebuildO-RING KIT, Rebuild
-
4N.S.S. Not Sold Separate, O-RingNot Sold Separate, O-Ring
-
58M0055016 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
68M0090404 VALVE KIT, Trim Limit
Non BigfootVALVE KIT, Trim Limit
Non Bigfoot -
6893944A01 VALVE KIT, Trim Limit
BigfootVALVE KIT, Trim Limit
Bigfoot -
78M0055019 PUMP ASSEMBLYPUMP ASSEMBLY
-
8893907A02 MOTOR KITMOTOR KIT
-
922-8134351 PLUGPLUG
-
10893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
118M0055018 MANIFOLD KITMANIFOLD KIT
-
1210-809876A1 SCREW KIT, MotorSCREW KIT, Motor
-
13809877A1 DRIVESHAFT/SEAL KITDRIVESHAFT/SEAL KIT
-
1435-893912A02 FILTER KITFILTER KIT
-
15893913A02 POPPET KITPOPPET KIT
-
1688238A18 CABLE ASSEMBLYCABLE ASSEMBLY
-
-25-8M0089947 O-RING KIT, Complete TrimO-RING KIT, Complete Trim
-
1717-821539 PIN, TrilobePIN, Trilobe
-
1817-19607 PINPIN
-
1917-822869001 PINPIN
-
-84-826802A15 HARNESS/RELAY ASSEMBLYHARNESS/RELAY ASSEMBLY
-
2084-826802A12 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
21882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
22828102 BRACKETBRACKET
-
2325-818967 GROMMETGROMMET
-
2423-818968 BUSHINGBUSHING
-
25NSS NOT SOLD SEPARATE, Decal-Trim RelayNOT SOLD SEPARATE, Decal-Trim Relay
-
2610-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
2713541 PLUG, MalePLUG, Male
-
2884-852539A1 HARNESS ASSEMBLY, AdaptorHARNESS ASSEMBLY, Adaptor
