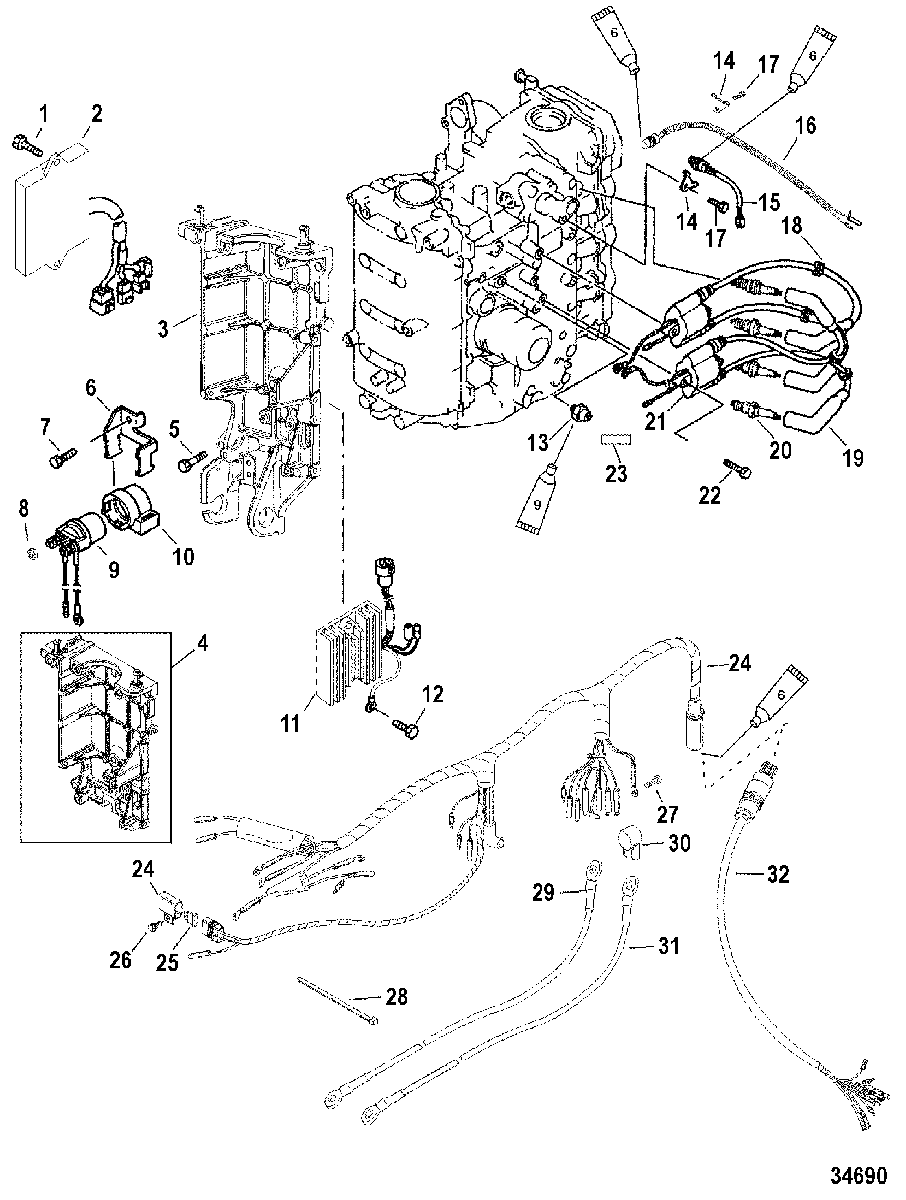

Electrical Components для Mariner - 40 ITALY (4-STROKE) 0P017000 THRU 0P094499
-
№АртикулНазвание
-
110-82684425 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
28250981 CONTROLLER ASSEMBLY, Electric
40/50CONTROLLER ASSEMBLY, Electric
40/50 -
28250983 CONTROLLER ASSEMBLY, Electric
45 BodenseeCONTROLLER ASSEMBLY, Electric
45 Bodensee -
38347912 BRACKET
Non-Bigfoot SN# 0G960500 & UpBRACKET
Non-Bigfoot SN# 0G960500 & Up -
38347912 BRACKET
Non-Bigfoot SN# 0G960499 & BelowBRACKET
Non-Bigfoot SN# 0G960499 & Below -
48347913 BRACKET
Bigfoot SN# 0G960500 & UpBRACKET
Bigfoot SN# 0G960500 & Up -
48347913 BRACKET
Bigfoot SN# 0G960499 & BelowBRACKET
Bigfoot SN# 0G960499 & Below -
510-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
6825074 SOLENOID PLATESOLENOID PLATE
-
710-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
811-401386 NUT, (M6)NUT, (M6)
-
989-8M0098898 SOLENOIDSOLENOID
-
108M0010250 BRACKETBRACKET
-
11825076 REGULATOR, VoltageREGULATOR, Voltage
-
1210-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
1387-8M0098207 PRESSURE SWITCHPRESSURE SWITCH
-
14815004M PLATEPLATE
-
1587-8280391 TEMPERATURE SWITCHTEMPERATURE SWITCH
-
1687-857122 TEMPERATURE SWITCHTEMPERATURE SWITCH
-
1710-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
1825-82069M GROMMETGROMMET
-
1984-825102A1 HIGH TENSION LEADHIGH TENSION LEAD
-
2033-827858Q SPARK PLUG, NGK-DPR6EA-9SPARK PLUG, NGK-DPR6EA-9
-
21339-825101T COIL ASSEMBLY, Ignition, Includes Lead WiresCOIL ASSEMBLY, Ignition, Includes Lead Wires
-
2210-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
23NSS NOT SOLD SEPARATE, Decal-Coil IdentificationNOT SOLD SEPARATE, Decal-Coil Identification
-
2484-827350A3 HARNESS ASSEMBLY, Engine WiringHARNESS ASSEMBLY, Engine Wiring
-
2588-812619 FUSE, Yellow - 20 AmpereFUSE, Yellow - 20 Ampere
-
2610-82104510 SCREW, (M5 x 10)
Non-BigfootSCREW, (M5 x 10)
Non-Bigfoot -
2610-40011126 SCREW, (M6 x 13) Stainless Steel
BigfootSCREW, (M6 x 13) Stainless Steel
Bigfoot -
2710-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
2854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2984-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
3085-79695T BOOT, Insulator - BlackBOOT, Insulator - Black
-
3184-88439A9 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
3284-86232A4 HARNESS ASSEMBLY, Auxiliary
HandleHARNESS ASSEMBLY, Auxiliary
Handle -
-61-822775T97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-61-822775T98 POWERHEAD ASSEMBLY
BigfootPOWERHEAD ASSEMBLY
Bigfoot
