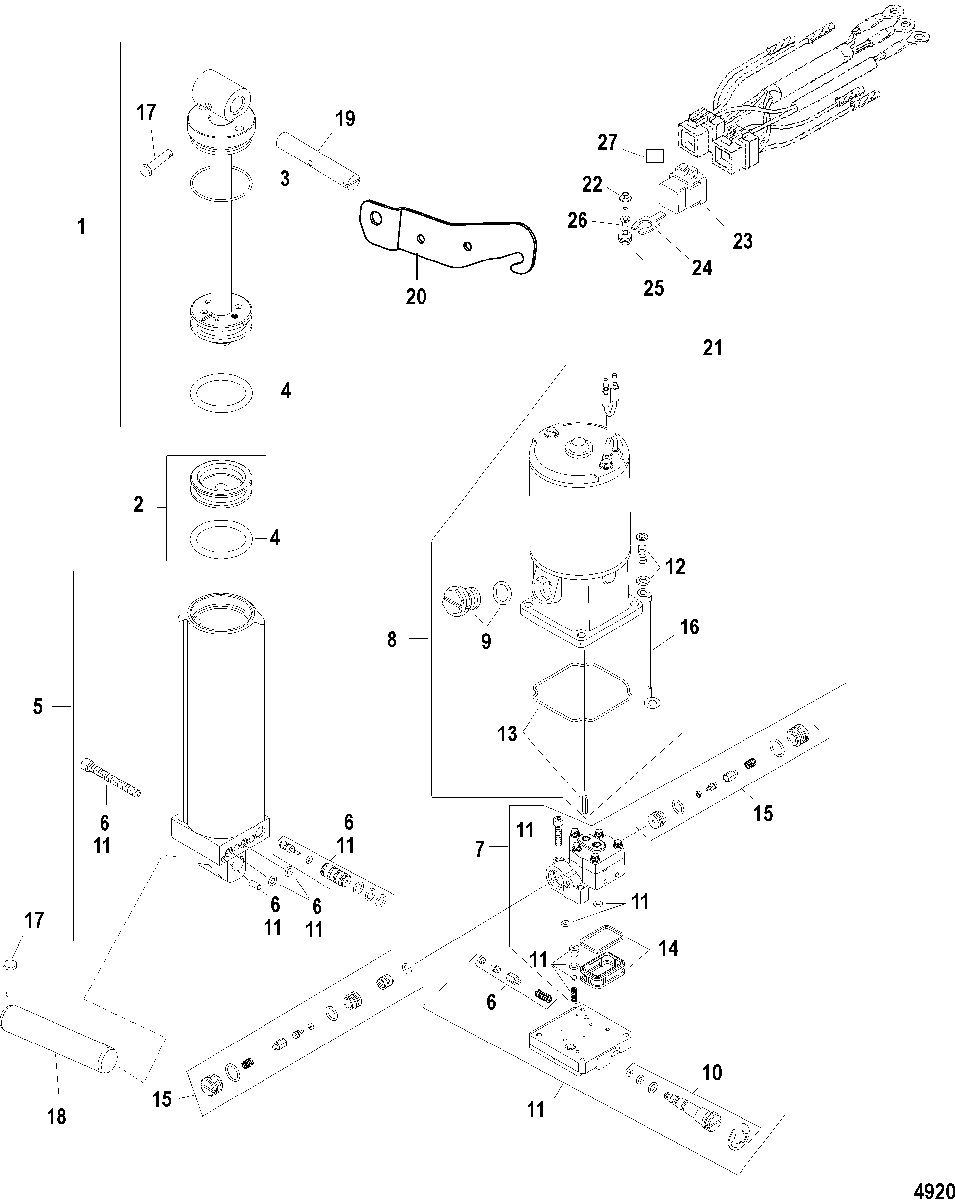

Power Trim Components для Mariner - 40 JET 0P094500 THRU 0P325499
-
№АртикулНазвание
-
-8M0055006 PUMP ASSEMBLY, Power Trim
(Non Bigfoot) SN# 0G831190/ 0P040426 & UpPUMP ASSEMBLY, Power Trim
(Non Bigfoot) SN# 0G831190/ 0P040426 & Up -
-8M0055011 PUMP ASSEMBLY, Power Trim
(Bigfoot) SN# 0Y010091 & BelowPUMP ASSEMBLY, Power Trim
(Bigfoot) SN# 0Y010091 & Below -
-8M0055011 PUMP ASSEMBLY, Power Trim
(Bigfoot) SN# 0Y010092 & UpPUMP ASSEMBLY, Power Trim
(Bigfoot) SN# 0Y010092 & Up -
-NSS NOT SOLD SEPARATE, Power Trim Pump (All)
(Refer to Parts Bulletin 98-7) SN# 0G831189/ 0P040425 & BelowNOT SOLD SEPARATE, Power Trim Pump (All)
(Refer to Parts Bulletin 98-7) SN# 0G831189/ 0P040425 & Below -
1893943A01 SHOCK ROD KIT
(Non Bigfoot)SHOCK ROD KIT
(Non Bigfoot) -
1893943A01 SHOCK ROD KIT
(Bigfoot) SN# 0Y010091 & BelowSHOCK ROD KIT
(Bigfoot) SN# 0Y010091 & Below -
18M0118573 SHOCK ROD KIT
(Bigfoot) SN# 0Y010092 & UpSHOCK ROD KIT
(Bigfoot) SN# 0Y010092 & Up -
2810776A1 PISTON ASSEMBLY, MemoryPISTON ASSEMBLY, Memory
-
325-893902A01 O-RING KIT, RebuildO-RING KIT, Rebuild
-
4NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
58M0055016 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
68M0090404 VALVE KIT, Trim Limit
(Non Bigfoot)VALVE KIT, Trim Limit
(Non Bigfoot) -
6893944A01 VALVE KIT, Trim Limit
(Bigfoot) SN# 0G831376/ 0P040442 & UpVALVE KIT, Trim Limit
(Bigfoot) SN# 0G831376/ 0P040442 & Up -
68M0090404 VALVE KIT, Trim Limit
(Bigfoot) SN# 0G831375/ 0P040441 & BelowVALVE KIT, Trim Limit
(Bigfoot) SN# 0G831375/ 0P040441 & Below -
78M0055019 PUMP ASSEMBLYPUMP ASSEMBLY
-
8893907A02 MOTOR KITMOTOR KIT
-
922-8134351 PLUGPLUG
-
10893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
118M0055018 MANIFOLD KITMANIFOLD KIT
-
1210-809876A1 SCREW KIT (Motor)SCREW KIT (Motor)
-
13809877A1 DRIVESHAFT/SEAL KITDRIVESHAFT/SEAL KIT
-
1435-893912A02 FILTER KITFILTER KIT
-
15893913A02 POPPET KITPOPPET KIT
-
1688238A18 CABLE ASSEMBLYCABLE ASSEMBLY
-
-25-8M0089947 O-RING KIT (Complete Trim)O-RING KIT (Complete Trim)
-
1717-821539 PIN, TrilobePIN, Trilobe
-
1817-19607 PINPIN
-
1917-822869001 PINPIN
-
20831276T BRACKETBRACKET
-
2184-826802A12 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
2210-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
23882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
24828102 BRACKETBRACKET
-
2525-818967 GROMMETGROMMET
-
2623-818968 BUSHINGBUSHING
-
27NSS NOT SOLD SEPARATE, Decal-Trim RelayNOT SOLD SEPARATE, Decal-Trim Relay
