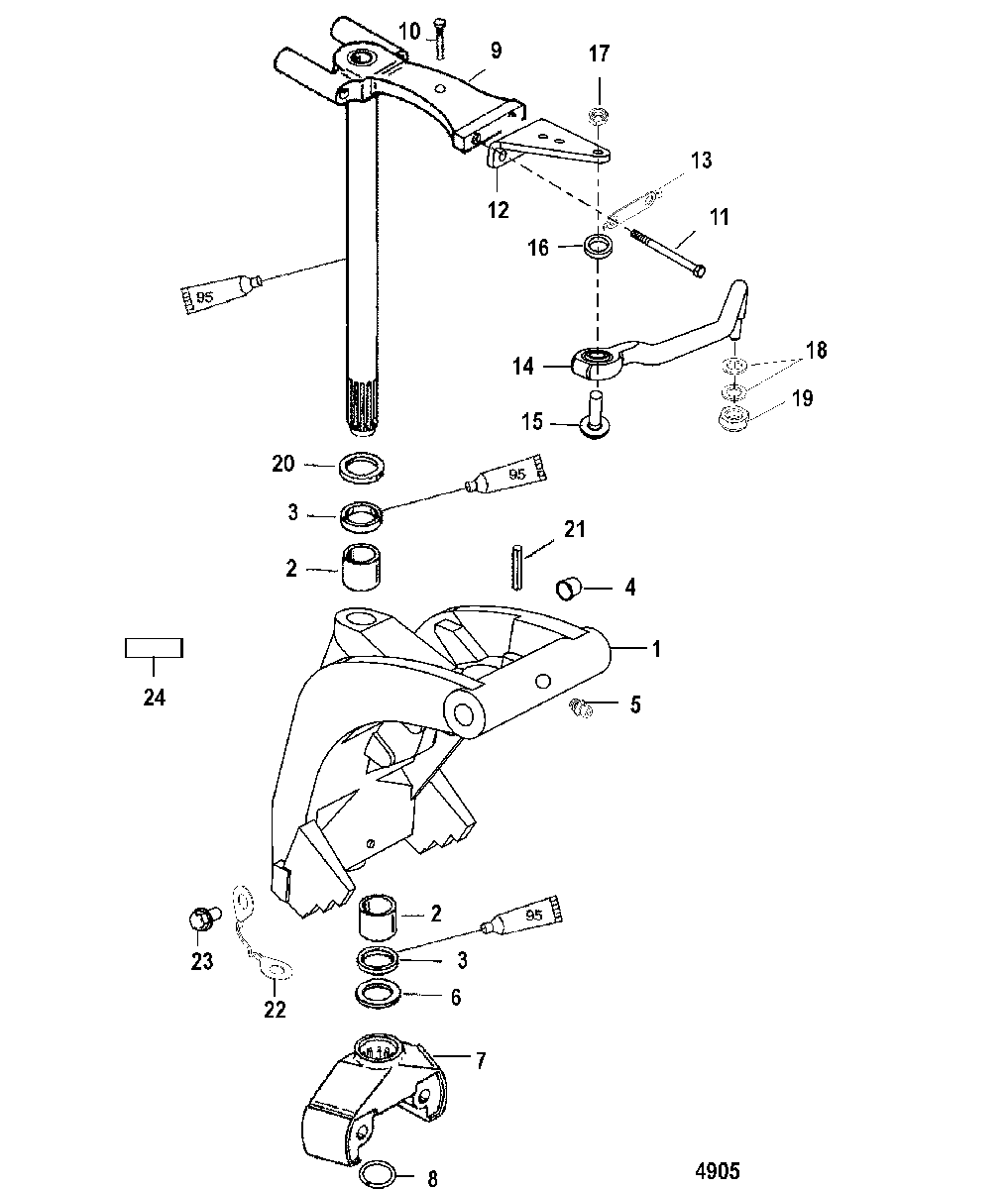

Swivel Bracket для Mariner - 40 JET 0P094500 THRU 0P325499
-
№АртикулНазвание
-
13400-8M0084208 SWIVEL BRACKET
(Black-Short)SWIVEL BRACKET
(Black-Short) -
13417-822863A1 SWIVEL BRACKET
(Black-Long)SWIVEL BRACKET
(Black-Long) -
223-821124 BEARINGBEARING
-
326-32911 SEAL, OilSEAL, Oil
-
423-19606 BEARINGBEARING
-
522-74036 FITTING, GreaseFITTING, Grease
-
612-52865 WASHERWASHER
-
719654T1 YOKE, Bottom
(Black)YOKE, Bottom
(Black) -
853-77415 RETAINING RINGRETAINING RING
-
917-812897A19 SWIVEL PIN ASSEMBLY
(Black-Short)SWIVEL PIN ASSEMBLY
(Black-Short) -
917-812896A22 SWIVEL PIN ASSEMBLY
(Black-Long)SWIVEL PIN ASSEMBLY
(Black-Long) -
1017-8219872 PIN, Co-PilotPIN, Co-Pilot
-
1110-4000377 SCREW, (M10 x 30)
(Electric)SCREW, (M10 x 30)
(Electric) -
12893696 BRACKET
(Electric)BRACKET
(Electric) -
1314-8M0009820 TAB WASHER
(Electric)TAB WASHER
(Electric) -
1419608A14 ATTACHING KIT, Engine Steering
(Electric)ATTACHING KIT, Engine Steering
(Electric) -
1510-823919 SCREW, (.375-24 x 1.500)
(Electric)SCREW, (.375-24 x 1.500)
(Electric) -
1612-8M0109680 WASHER, (.390 x .546 x .12)
(Electric)WASHER, (.390 x .546 x .12)
(Electric) -
1711-8M0042636 NUT, (.375-24) Stainless Steel
(Electric)NUT, (.375-24) Stainless Steel
(Electric) -
1812-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(Electric)WASHER, (.390 x .625 x .062) Stainless Steel
(Electric) -
1911-8M0042636 NUT, (.375-24) Stainless Steel
(Electric)NUT, (.375-24) Stainless Steel
(Electric) -
2012-52865 WASHERWASHER
-
2117-823876 PIN, HandlePIN, Handle
-
2288238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
2310-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
24NSS NOT SOLD SEPARATE, Decal-SerializationNOT SOLD SEPARATE, Decal-Serialization
