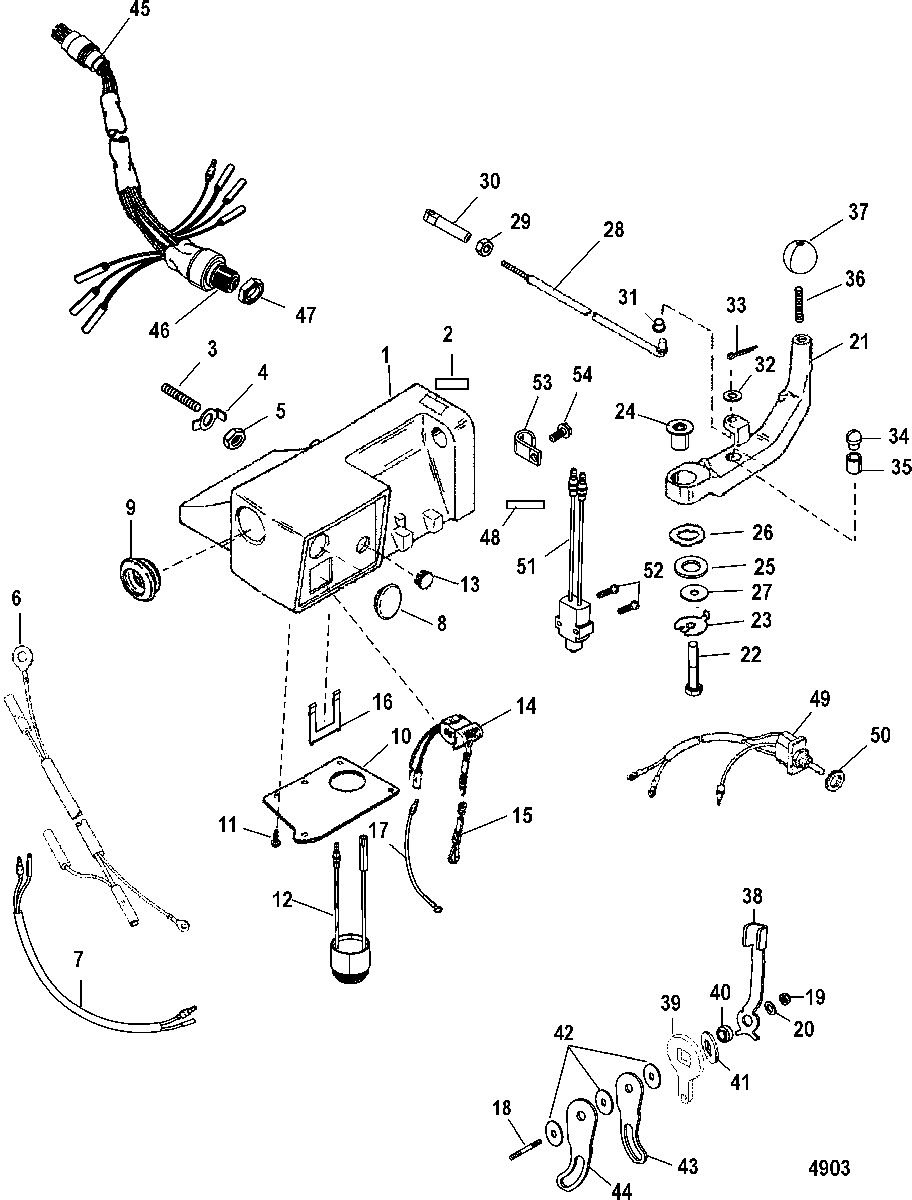

Steerig Handle Kit для Mariner - 40 JET 0P094500 THRU 0P325499
-
№АртикулНазвание
-
1816366T3 BRACKETBRACKET
-
2NSS NOT SOLD SEPARATE, Decal-ShiftNOT SOLD SEPARATE, Decal-Shift
-
316-815802 STUD, (M10 x 150 x 58)STUD, (M10 x 150 x 58)
-
414-815806 TAB WASHERTAB WASHER
-
511-40125100 NUT, (M10)NUT, (M10)
-
684-815851A2 HARNESS ASSEMBLY, Stop
(Manual)HARNESS ASSEMBLY, Stop
(Manual) -
784-821028A2 CABLE ASSEMBLY
(Manual)CABLE ASSEMBLY
(Manual) -
8815803 PLUG
(Manual)PLUG
(Manual) -
9121051 GROMMETGROMMET
-
108158041 COVERCOVER
-
1110-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
12816051A2 HORN ASSEMBLYHORN ASSEMBLY
-
1319-889730 PLUG
(Manual)PLUG
(Manual) -
1487-11083A4 SWITCH ASSEMBLY, Stop
(Power Trim)SWITCH ASSEMBLY, Stop
(Power Trim) -
158M0092850 LANYARD ASSEMBLY
(Power Trim)LANYARD ASSEMBLY
(Power Trim) -
168M0032846 RETAINER, BrassRETAINER, Brass
-
1784-11149A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
1816-8M0034440 STUD, (M10 x 2.12)STUD, (M10 x 2.12)
-
1911-400636 NUTNUT
-
2012-823933 WASHER, (.405 x .760 x .060) DelrinWASHER, (.405 x .760 x .060) Delrin
-
21816367F5 LEVERLEVER
-
2210-4000357 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
2314-8158051 TAB WASHERTAB WASHER
-
2423-8159831 BUSHINGBUSHING
-
2512-824610 WASHER, PlasticWASHER, Plastic
-
2612-823970 WASHERWASHER
-
2712-814803 WASHERWASHER
-
28495636 SHIFT RODSHIFT ROD
-
2911-64015 NUT, (.250-20)NUT, (.250-20)
-
3048419T ROD ENDROD END
-
3123-26856 BUSHINGBUSHING
-
3212-35950 WASHER, (.273 x .437 x .031) Stainless SteelWASHER, (.273 x .437 x .031) Stainless Steel
-
3318-25191 COTTER PINCOTTER PIN
-
348M0091388 DETENT/SPRING KITDETENT/SPRING KIT
-
35NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
3616-8M0034452 STUD, (.375-24 x 1.125)STUD, (.375-24 x 1.125)
-
3798530 KNOBKNOB
-
38816416A3 LEVER KITLEVER KIT
-
39NSS NOT SOLD SEPARATE, BrakeNOT SOLD SEPARATE, Brake
-
40816564 DRIVERDRIVER
-
4112-816576 WASHERWASHER
-
428165621 DISCDISC
-
438164131 ARM (TOP)ARM (TOP)
-
448164141 ARM (BOTTOM)ARM (BOTTOM)
-
4584-12649A5 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
4687-88107A5 SWITCH KIT, Key
(For Key -Reference Key List)SWITCH KIT, Key
(For Key -Reference Key List) -
4711-879755 NUT, Special - Black Nylon
(Black Nylon)NUT, Special - Black Nylon
(Black Nylon) -
48NSS NOT SOLD SEPARATE, Decal-Trim
(Power Trim)NOT SOLD SEPARATE, Decal-Trim
(Power Trim) -
4987-14645A4 TRIM SWITCH
(Power Trim)TRIM SWITCH
(Power Trim) -
5049440 NUT, (.468-32)
(Power Trim)NUT, (.468-32)
(Power Trim) -
5187-8M0052927 SWITCH
(Power Trim)SWITCH
(Power Trim) -
5210-12110 SCREW, (#6-32 x .750)
(Power Trim)SCREW, (#6-32 x .750)
(Power Trim) -
5354-648552 CLIPCLIP
-
5410-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
NS894911 KEY, Ignition (1A)KEY, Ignition (1A)
-
NS894912 KEY, Ignition (1B)KEY, Ignition (1B)
-
NS894913 KEY, Ignition (1C)KEY, Ignition (1C)
-
NS894914 KEY, Ignition (1D)KEY, Ignition (1D)
-
NS894915 KEY, Ignition (1E)KEY, Ignition (1E)
-
NS894916 KEY, Ignition (1F)KEY, Ignition (1F)
-
NS894917 KEY, Ignition (2A)KEY, Ignition (2A)
-
NS894918 KEY, Ignition (2B)KEY, Ignition (2B)
-
NS894919 KEY, Ignition (2C)KEY, Ignition (2C)
-
NS8949110 KEY, Ignition (2D)KEY, Ignition (2D)
-
NS8949111 KEY, Ignition (2E)KEY, Ignition (2E)
-
NS8949112 KEY, Ignition (2F)KEY, Ignition (2F)
-
-816366A48 STEERING HANDLE KITSTEERING HANDLE KIT
