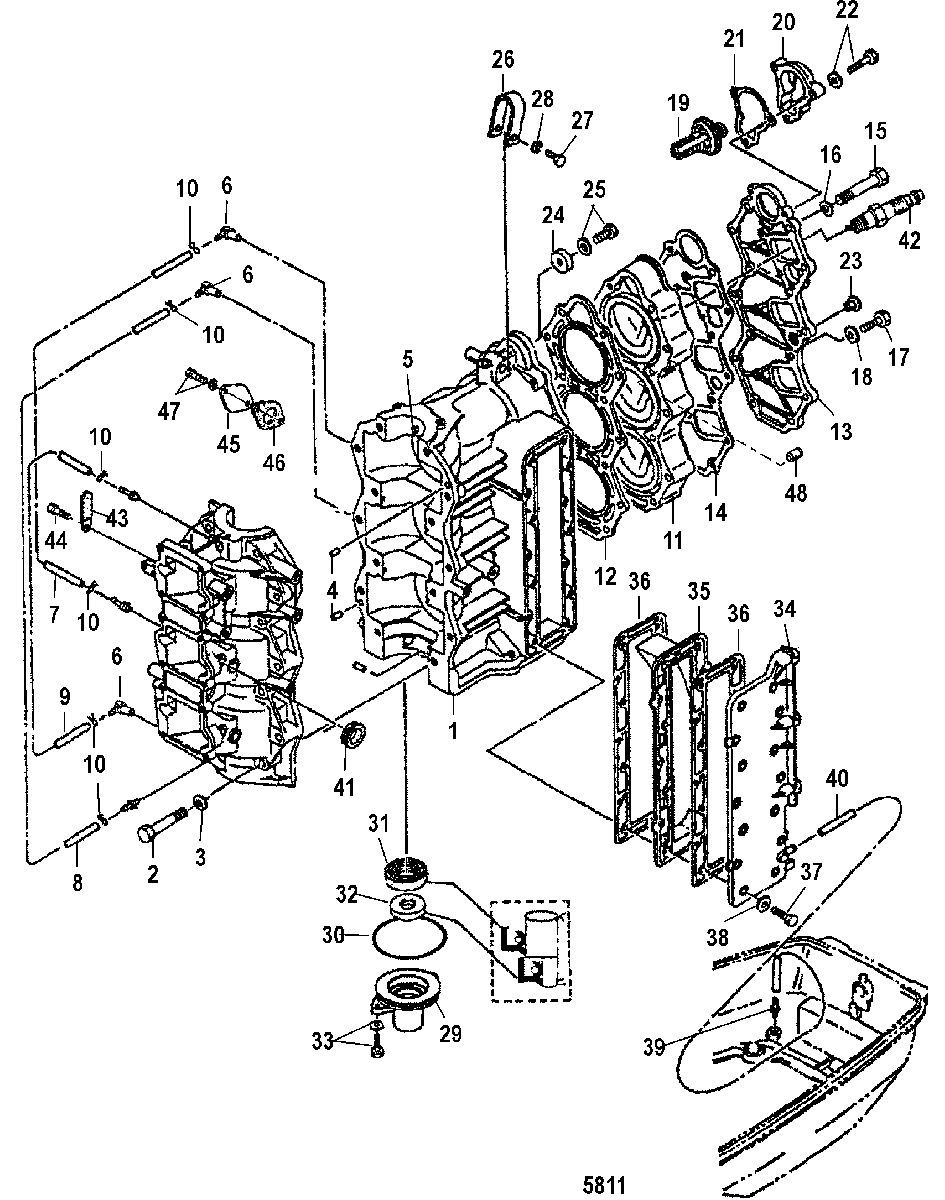

Cylinder Block для Mariner - 40 MXL MARATHON 0N037781 THRU 0N056164

№

Артикул

Название
1

878-815013A3 CYLINDER BLOCK
(Lightning)

CYLINDER BLOCK
(Lightning)

155 830 ₽
1

878-8M0082198 CYLINDER BLOCK
(Lightning XR/50)

CYLINDER BLOCK
(Lightning XR/50)

296 010 ₽
2

10-166951 BOLT

BOLT

210 ₽
3

12-4002217 WASHER

WASHER

120 ₽
4

17-16119 PIN, Dowel

PIN, Dowel

230 ₽
5

17-9521812 PIN, Dowel

PIN, Dowel

280 ₽
6

22-812960A01 BLEED VALVE
SN# 0N009618 & Below

BLEED VALVE
SN# 0N009618 & Below

2 730 ₽
6

22-812960006 NIPPLE
SN# 0N009619 & Up

NIPPLE
SN# 0N009619 & Up

460 ₽
7

32-8M0057112 HOSE, (160 mm)
SN# 0N009618 & Below

HOSE, (160 mm)
SN# 0N009618 & Below

1 780 ₽
7

32-879194473 HOSE, Rubber with Arrow (730mm)
SN# 0N009619 & Up

HOSE, Rubber with Arrow (730mm)
SN# 0N009619 & Up

560 ₽
8

32-8M0057112 HOSE, Rubber (1 Meter)
SN# 0N009618 & Below

HOSE, Rubber (1 Meter)
SN# 0N009618 & Below

1 780 ₽
8

32-879194473 HOSE, Rubber with Arrow (730mm)
SN# 0N009619 & Up

HOSE, Rubber with Arrow (730mm)
SN# 0N009619 & Up

560 ₽
9

32-8M0057112 HOSE, Rubber (1 Meter)
SN# 0N009618 & Below

HOSE, Rubber (1 Meter)
SN# 0N009618 & Below

1 780 ₽
9

32-879194473 HOSE, Rubber with Arrow (730mm)
SN# 0N009619 & Up

HOSE, Rubber with Arrow (730mm)
SN# 0N009619 & Up

560 ₽
10

54-95224 CLIP

CLIP

150 ₽
11

979-96305 CYLINDER HEAD
SN# 0N016162 & Up

CYLINDER HEAD
SN# 0N016162 & Up

17 780 ₽
11

979-96305 CYLINDER HEAD
SN# 0N016161 & Below

CYLINDER HEAD
SN# 0N016161 & Below

17 780 ₽
12

27-8M0062091 GASKET
SN# 0N016162 & Up

GASKET
SN# 0N016162 & Up

7 270 ₽
12

27-8M0062091 GASKET
SN# 0N016161 & Below

GASKET
SN# 0N016161 & Below

7 270 ₽
13

855548 COVER

COVER

7 100 ₽
14

27-8M0115016 GASKET
SN# 0N016162 & Up

GASKET
SN# 0N016162 & Up

2 060 ₽
14

27-8129394 GASKET
SN# 0N016161 & Below

GASKET
SN# 0N016161 & Below

710 ₽
15

10-8M0106717 BOLT

BOLT

510 ₽
16

12-8M0106725 WASHER

WASHER

370 ₽
17

10-166953 BOLT

BOLT

450 ₽
18

12-809931044 WASHER

WASHER

110 ₽
19

8537041 THERMOSTAT

THERMOSTAT

4 350 ₽
20

8537051 COVER

COVER

1 940 ₽
21

27-8537024 GASKET

GASKET

380 ₽
22

10-823042 BOLT

BOLT

200 ₽
23

19-855549 PLUG

PLUG

150 ₽
24

97-823913Q ANODE

ANODE

1 220 ₽
25

10-167051 BOLT, (M6 x 20)

BOLT, (M6 x 20)

230 ₽
26

855550 LIFTING EYE

LIFTING EYE

360 ₽
27

10-168304 BOLT

BOLT

140 ₽
28

12-4002217 WASHER

WASHER

120 ₽
29

1100-8537131 END CAP, Lower

END CAP, Lower

2 780 ₽
30

25-8537091 O-RING

O-RING

150 ₽
31

26-8M0101648 SEAL, Oil

SEAL, Oil

1 640 ₽
32

26-8537078 SEAL, Oil

SEAL, Oil

650 ₽
33

10-167051 BOLT, (M6 x 20)

BOLT, (M6 x 20)

230 ₽
34

8M0081401 COVER, Exhaust

COVER, Exhaust

8 870 ₽
35

8537062 COVER, Exhaust

COVER, Exhaust

4 350 ₽
36

27-812939020 GASKET

GASKET

1 170 ₽
37

10-8150683 BOLT

BOLT

960 ₽
38

12-809931044 WASHER

WASHER

110 ₽
39

22-898101961 NIPPLE

NIPPLE

180 ₽
40

32-8M0057113 LINE, Fuel (1000 mm)

LINE, Fuel (1000 mm)

1 980 ₽
41

25-855551 GROMMET (Electric)

GROMMET (Electric)

200 ₽
42

33-8M0114740 SPARK PLUG
(Lightning)(NGK-B7HS-10)

SPARK PLUG
(Lightning)(NGK-B7HS-10)

530 ₽
42

33-828942 SPARK PLUG, (NGK# BR7HS-10)
(Lightning)(NGK-BR7HS-10)

SPARK PLUG, (NGK# BR7HS-10)
(Lightning)(NGK-BR7HS-10)

500 ₽
42

33-8244068 PLUG
(Lightning XR/50)(NGK-B8HS-10)

PLUG
(Lightning XR/50)(NGK-B8HS-10)

500 ₽
42

33-8244068 SPARK PLUG
(Lightning XR/50)(NGK-BR8HS-10)

SPARK PLUG
(Lightning XR/50)(NGK-BR8HS-10)

500 ₽
43

54-813275 CLAMP

CLAMP

200 ₽
44

10-162231 BOLT

BOLT

0 ₽
45

803992 COVER PLATE (Manual)

COVER PLATE (Manual)

460 ₽
46

27-8M0081613 GASKET (Manual)

GASKET (Manual)

660 ₽
47

10-162233 SCREW (Manual)

SCREW (Manual)

1 020 ₽
48

17-16119 PIN, Dowel
SN# 0N016162 & Up

PIN, Dowel
SN# 0N016162 & Up

230 ₽
-

8M0146290 POWERHEAD ASSEMBLY
(Lightning)

POWERHEAD ASSEMBLY
(Lightning)

150 790 ₽
-

37-8M0069514 POWERHEAD ASSEMBLY
(Lightning XR/50)

POWERHEAD ASSEMBLY
(Lightning XR/50)

0 ₽
-

27-8M0081614 GASKET SET, Powerhead
SN# 0N016161 & Below

GASKET SET, Powerhead
SN# 0N016161 & Below

19 690 ₽
-

27-8M0081614 GASKET SET, Powerhead
SN# 0N016162 & Up

GASKET SET, Powerhead
SN# 0N016162 & Up

19 690 ₽
