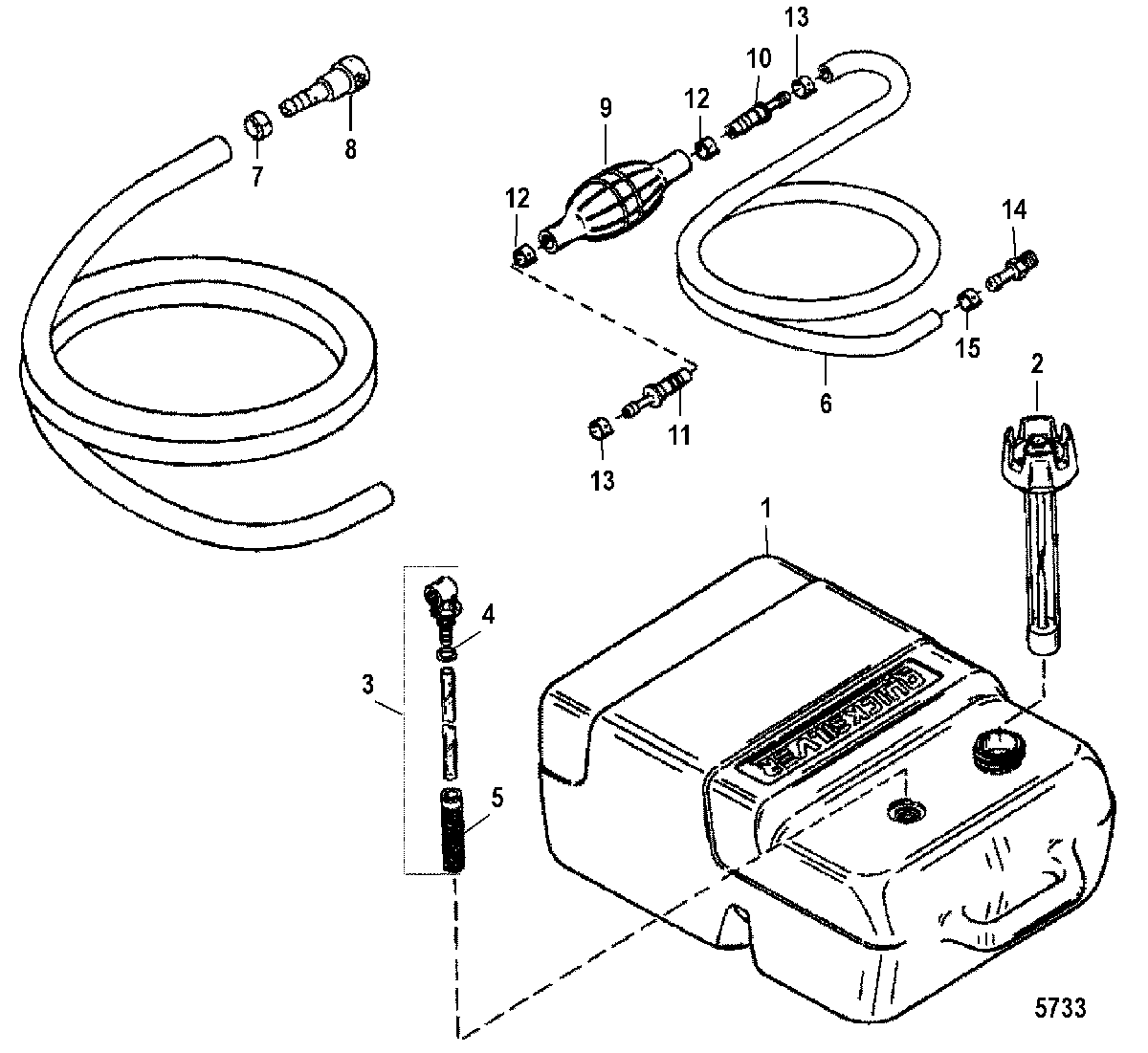

Fuel Tank(Plastic- 6.6 Gallon) для Mariner - 40 MXL MARATHON 0N037781 THRU 0N056164
-
№АртикулНазвание
-
11259-859063A1 TANK ASSEMBLY, Fuel - Plastic 6.6 GallonTANK ASSEMBLY, Fuel - Plastic 6.6 Gallon
-
2823536 GAUGE/CAP ASSEMBLYGAUGE/CAP ASSEMBLY
-
322-823532A1 CONNECTOR KIT, FuelCONNECTOR KIT, Fuel
-
425-823533 O-RINGO-RING
-
535-823534 SCREENSCREEN
-
632-8M0044638 HOSE ASSEMBLY, FuelHOSE ASSEMBLY, Fuel
-
754-853798 CLAMPCLAMP
-
822-8M0120628 CONNECTOR, FuelCONNECTOR, Fuel
-
913330Q07 BULB ASSEMBLY, PrimerBULB ASSEMBLY, Primer
-
1021-13331A3 CHECK VALVE ASSEMBLY (Inlet)CHECK VALVE ASSEMBLY (Inlet)
-
1121-13331A4 CHECK VALVE ASSEMBLY (Outlet)CHECK VALVE ASSEMBLY (Outlet)
-
1254-4158210 CLAMP, Nylon (Large)CLAMP, Nylon (Large)
-
1354-41582Q7 CLAMP, Nylon (Small)CLAMP, Nylon (Small)
-
1422-89771Q2 CONNECTOR, (.250-18)CONNECTOR, (.250-18)
-
1554-41582Q7 CLAMP, NylonCLAMP, Nylon
