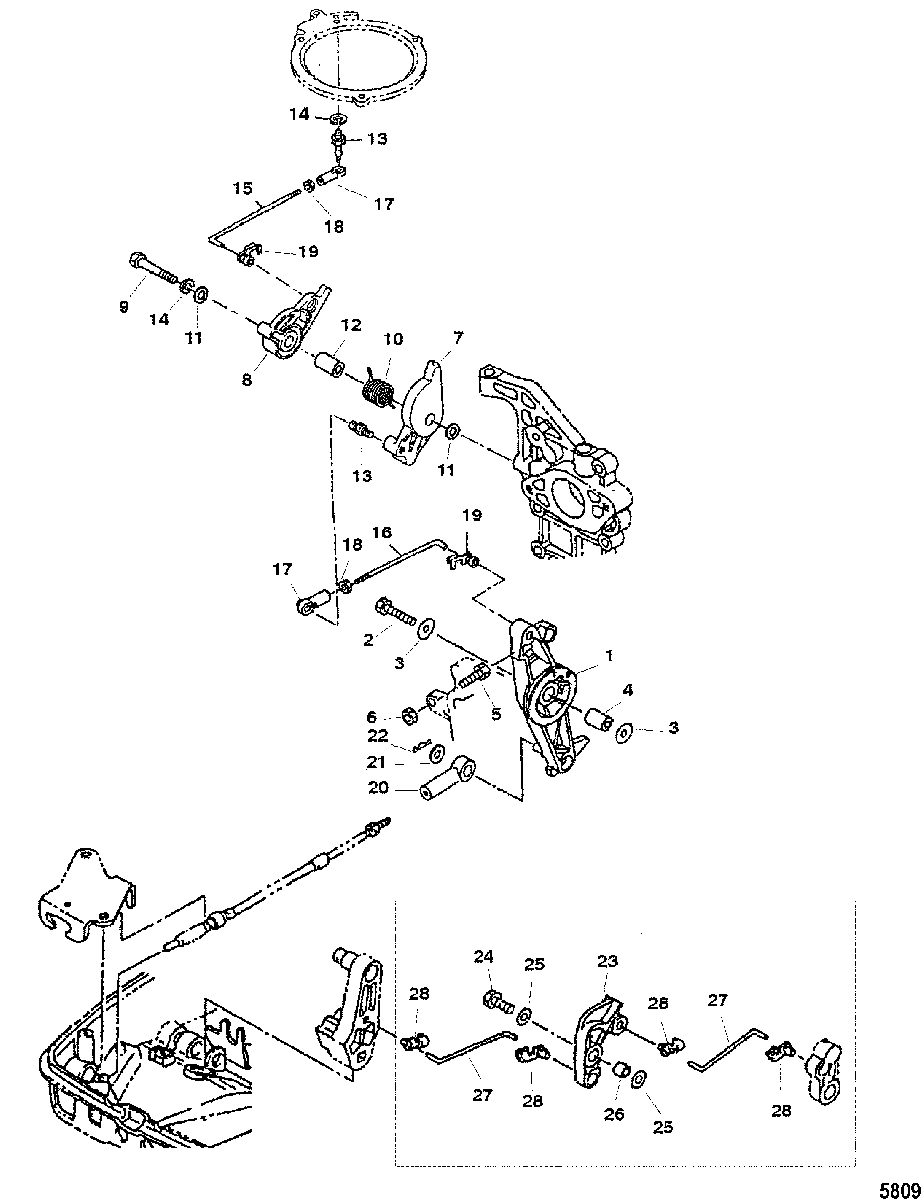

Throttle Linkage для Mariner - 40 MXL MARATHON 0N037781 THRU 0N056164
-
№АртикулНазвание
-
1853742003 ARM, ActuatorARM, Actuator
-
210-16201 BOLTBOLT
-
312-161404 WASHERWASHER
-
423-9528612 COLLARCOLLAR
-
510-8M0124428 BOLTBOLT
-
611-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
78537501 CAM, Throttle
(Lightning XR/50)CAM, Throttle
(Lightning XR/50) -
78537502 CAM, Throttle
(Lightning)CAM, Throttle
(Lightning) -
8803156 LEVER, AdvancerLEVER, Advancer
-
910-4000333 BOLTBOLT
-
1024-803157 SPRING, Throttle CamSPRING, Throttle Cam
-
1112-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
1223-9528613 COLLARCOLLAR
-
13853744001 BALL JOINTBALL JOINT
-
1413-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
158M0054756 L-LINKL-LINK
-
168555616 L-LINKL-LINK
-
17853745 CAPCAP
-
1811-16081 NUTNUT
-
19163332 SNAP, Link RodSNAP, Link Rod
-
208M0079131 SOCKET, Cable JointSOCKET, Cable Joint
-
2112-953925 WASHERWASHER
-
2218-8150262 COTTER PINCOTTER PIN
-
23803993 ARM, Throttle Stop (Handle)ARM, Throttle Stop (Handle)
-
2410-4000330 SCREW, (M6 x 25) (Handle)SCREW, (M6 x 25) (Handle)
-
2512-16826 WASHER, Stainless Steel (Handle)WASHER, Stainless Steel (Handle)
-
2623-8M0021168 COLLAR, (9.3 mm) (Handle)COLLAR, (9.3 mm) (Handle)
-
27803994 S-LINK (Handle)S-LINK (Handle)
-
28803995 SNAP, Link Rod (Handle)SNAP, Link Rod (Handle)
