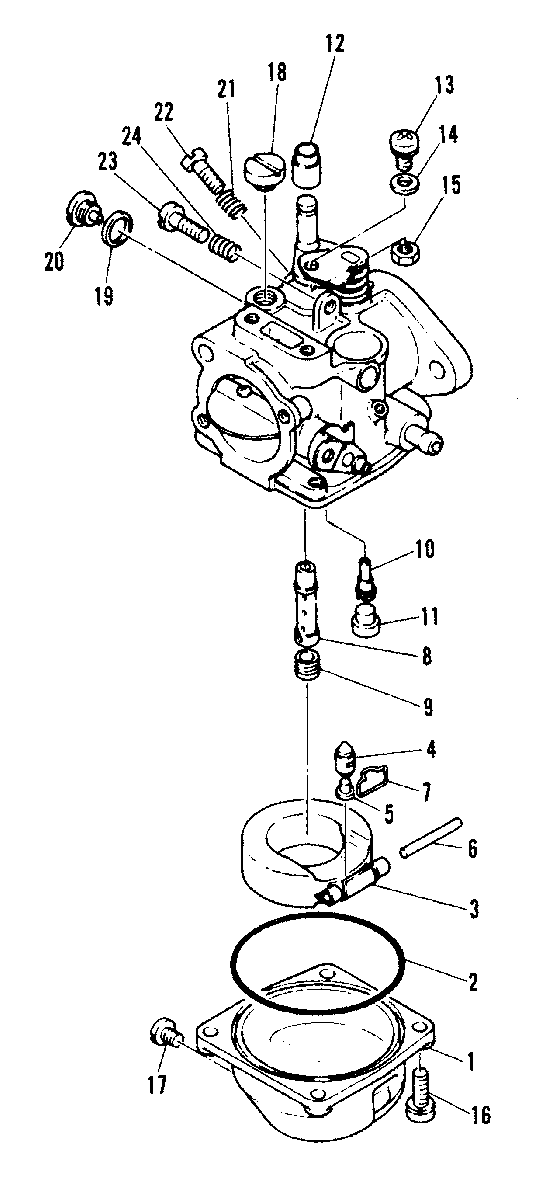

CARBURETOR для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A10121 THRU 100415 (E)
-
№АртикулНазвание
-
0-11383-7996M CARBURETOR ASSY'Y
SERIAL 00001991-09999999CARBURETOR ASSY'Y
SERIAL 00001991-09999999 -
0-11383-7996M CARBURETOR ASSY'Y
SERIAL 00000000-00001990CARBURETOR ASSY'Y
SERIAL 00000000-00001990 -
183361M FLOAT BOWLFLOAT BOWL
-
225-83362M O-RINGO-RING
-
3891730A01 FLOATFLOAT
-
483364M INLET NEEDLE & SEATINLET NEEDLE & SEAT
-
517-92639M PIN, INLET NEEDLEPIN, INLET NEEDLE
-
617-81278M PINPIN
-
754-8M0120624 CLIPCLIP
-
883887M NOZZLE, MAIN
SERIAL 00001991-09999999NOZZLE, MAIN
SERIAL 00001991-09999999 -
883366M NOZZLE, MAIN
SERIAL 0A000000-0S001990NOZZLE, MAIN
SERIAL 0A000000-0S001990 -
983367M JET, MAIN (# 155)JET, MAIN (# 155)
-
1083888M JET, SLOW (#55)
SERIAL 00001991-09999999JET, SLOW (#55)
SERIAL 00001991-09999999 -
1083368M JET, SLOW (#75)
SERIAL 0A000000-0S001990JET, SLOW (#75)
SERIAL 0A000000-0S001990 -
1122-8M0080455 PLUGPLUG
-
1283370M COLLARCOLLAR
-
1310-83371M SCREW WITH WASHERSCREW WITH WASHER
-
1412-83372M WASHERWASHER
-
1511-82388M NUTNUT
-
1610-11796M SCREW WITH WASHERSCREW WITH WASHER
-
1710-83374M SCREWSCREW
-
1810-83375M SCREW, PLUGSCREW, PLUG
-
1912-83376M WASHERWASHER
-
2010-81292M SCREW, PLUGSCREW, PLUG
-
2124-82073M SPRINGSPRING
-
2210-83377M SCREW, IDLE MIXTURE
SERIAL 0A000000-0S001990SCREW, IDLE MIXTURE
SERIAL 0A000000-0S001990 -
2210-83889M SCREW, IDLE MIXTURE
SERIAL 00001991-09999999SCREW, IDLE MIXTURE
SERIAL 00001991-09999999 -
2310-81277M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
2424-82080M SPRINGSPRING
-
2484475M REPAIR KIT, CARBURETOR (REPLACEMENT PART)REPAIR KIT, CARBURETOR (REPLACEMENT PART)
