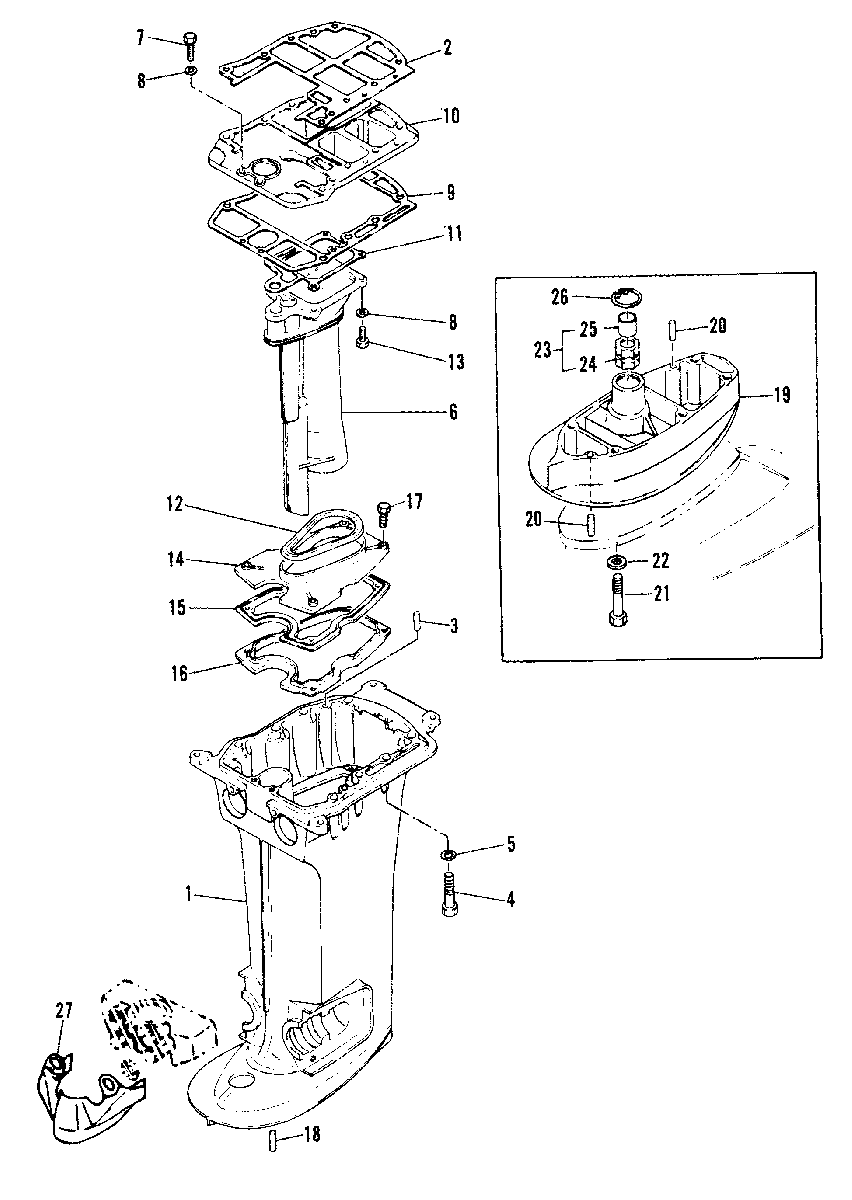

DRIVESHAFT HOUSING для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A10121 THRU 100415 (E)
-
№АртикулНазвание
-
1610-82476M BOLTBOLT
-
6713-82215M WASHERWASHER
-
11587-6991M DRIVESHAFT HOUSING (SHORT SHAFT)DRIVESHAFT HOUSING (SHORT SHAFT)
-
11587-8442M DRIVESHAFT HOUSING (LONG SHAFT)DRIVESHAFT HOUSING (LONG SHAFT)
-
227-11885 GASKET, DRIVESHAFT HOUSINGGASKET, DRIVESHAFT HOUSING
-
317-83379M PIN, DOWELPIN, DOWEL
-
410-97749M BOLTBOLT
-
513-82215M WASHERWASHER
-
6815115M EXHAUST TUBEEXHAUST TUBE
-
710-82405M BOLTBOLT
-
813-82212M WASHER, LOCKWASHER, LOCK
-
927-19175 GASKET, PPER HOUSINGGASKET, PPER HOUSING
-
1083382M PLATEPLATE
-
1127-83383M GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
1283384M SEALSEAL
-
1310-84058M BOLTBOLT
-
14814970M SEAL SUPPORT BRACKETSEAL SUPPORT BRACKET
-
1583386M SEALSEAL
-
16814971M PLATEPLATE
-
1710-82476M BOLTBOLT
-
1817-82364M PIN, DOWELPIN, DOWEL
-
1983891M EXTENSION (SUPER ULTRA LONG SHAFT) OPTIONALEXTENSION (SUPER ULTRA LONG SHAFT) OPTIONAL
-
2017-82364M PIN, DOWEL (SUL) OPTIONALPIN, DOWEL (SUL) OPTIONAL
-
2110-84427M BOLT (SUL) OPTIONALBOLT (SUL) OPTIONAL
-
2213-82215M WASHER (SUL) OPTIONALWASHER (SUL) OPTIONAL
-
2323-83892M BUSHING (SUL) OPTIONALBUSHING (SUL) OPTIONAL
-
2483893M DAMPER OPTIONALDAMPER OPTIONAL
-
2523-83894M BUSHING OPTIONALBUSHING OPTIONAL
-
2653-83758M SNAP RING OPTIONALSNAP RING OPTIONAL
-
2792617M COVER (SHORT SHAFT) OPTIONAL
SERIAL 00004716-09999999COVER (SHORT SHAFT) OPTIONAL
SERIAL 00004716-09999999 -
2792618M COVER (LONG AND SUPER ULTRA LONG SHAFTS) OPTIONAL
SERIAL 00040161-09999999COVER (LONG AND SUPER ULTRA LONG SHAFTS) OPTIONAL
SERIAL 00040161-09999999
