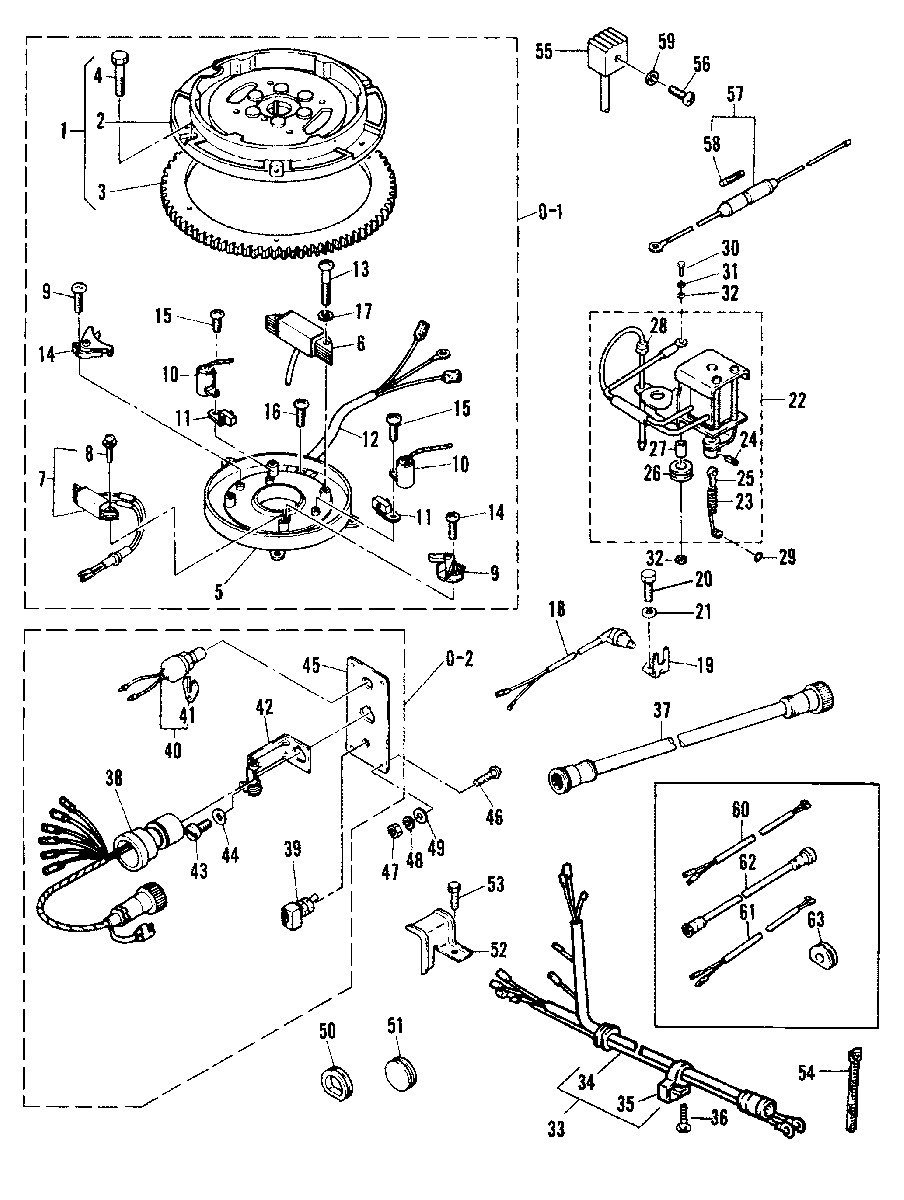

ELECTRIC START для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A10121 THRU 100415 (E)
-
№АртикулНазвание
-
0-1253-7106M FLYWHEEL MAGNETO ASS'Y (ELECTRIC START)FLYWHEEL MAGNETO ASS'Y (ELECTRIC START)
-
1253-7107M FLYWHEEL ASS'YFLYWHEEL ASS'Y
-
243-83556M DRIVE, RINGDRIVE, RING
-
343-80711M GEAR, RINGGEAR, RING
-
410-83558M BOLTBOLT
-
583559M BASE, MAGNETOBASE, MAGNETO
-
683560M COIL, IGNITIONCOIL, IGNITION
-
783561M COIL, BATTERY CHARGINGCOIL, BATTERY CHARGING
-
810-82522M SCREW WITH WASHERSCREW WITH WASHER
-
981021M CONTRACT BREAKERCONTRACT BREAKER
-
1083562M CONDENSERCONDENSER
-
1180003M LUBRICATORLUBRICATOR
-
1284-91627M LEAD WIRELEAD WIRE
-
1310-83108M SCREWSCREW
-
1410-80001M SCREWSCREW
-
1510-80001M SCREWSCREW
-
1610-83565M SCREWSCREW
-
1713-82186M WASHER, LOCKWASHER, LOCK
-
1887-83633M NEUTRAL START SWITCHNEUTRAL START SWITCH
-
1983634M BRACKETBRACKET
-
2010-826957M BOLTBOLT
-
2113-82212M WASHER, LOCKWASHER, LOCK
-
2293118M SOLENOID COILSOLENOID COIL
-
2384-83637M WIRE, SPOOLWIRE, SPOOL
-
2417-82145M PIN, ROLLPIN, ROLL
-
2581553M HOOK, WIRE PULLHOOK, WIRE PULL
-
2625-83638M GROMMETGROMMET
-
2723-83639M COLLARCOLLAR
-
2825-80726M GROMMETGROMMET
-
2925-82258M O-RINGO-RING
-
3010-82419M BOLTBOLT
-
3113-82186M WASHER, LOCKWASHER, LOCK
-
3212-83640M WASHERWASHER
-
3384-83641M WIRE HARNESS ASS'YWIRE HARNESS ASS'Y
-
3484-83644M WIRE ASS'YWIRE ASS'Y
-
3582039M CLAMPCLAMP
-
3610-81759M SCREWSCREW
-
3784-83643M WIRE HARNESS-SWITCH PANEL TO ENGINE (5M)WIRE HARNESS-SWITCH PANEL TO ENGINE (5M)
-
0-282993M SWITCH PANEL ASS'YSWITCH PANEL ASS'Y
-
3887-82994M MAIN SWITCHMAIN SWITCH
-
3987-81534M SWITCH, CHOKESWITCH, CHOKE
-
4087-97765M KILL SWITCH ASS'YKILL SWITCH ASS'Y
-
4197756M STOPPERSTOPPER
-
4281537M STAY, CORD CALMPSTAY, CORD CALMP
-
4310-82500M SCREWSCREW
-
4413-82206M WASHER, LOCKWASHER, LOCK
-
4581533M SWITCH PANELSWITCH PANEL
-
4610-80164M SCREWSCREW
-
4711-82377M NUTNUT
-
4813-82206M WASHER, LOCKWASHER, LOCK
-
4912-82847M WASHERWASHER
-
5025-81590M GROMMETGROMMET
-
5182066M GROMMETGROMMET
-
5297066M CLAMP, HARNESSCLAMP, HARNESS
-
5310-84088M BOLTBOLT
-
5481541M STA-STRAPSTA-STRAP
-
558M0091976 RECTIFIERRECTIFIER
-
5610-83108M SCREWSCREW
-
5788-81655M FUSE HOLDER ASS'YFUSE HOLDER ASS'Y
-
5888-81522M FUSEFUSE
-
5913-82186M WASHER, LOCKWASHER, LOCK
-
6084-83642M LEAD EXTENSION, BATTERY (5M)LEAD EXTENSION, BATTERY (5M)
-
6184-83645M LEAD EXTENSION, BATTERY (2M)LEAD EXTENSION, BATTERY (2M)
-
6284-81538M WIRE HARNESS EXTENSION (2M)WIRE HARNESS EXTENSION (2M)
-
6325-84975M GROMMETGROMMET
