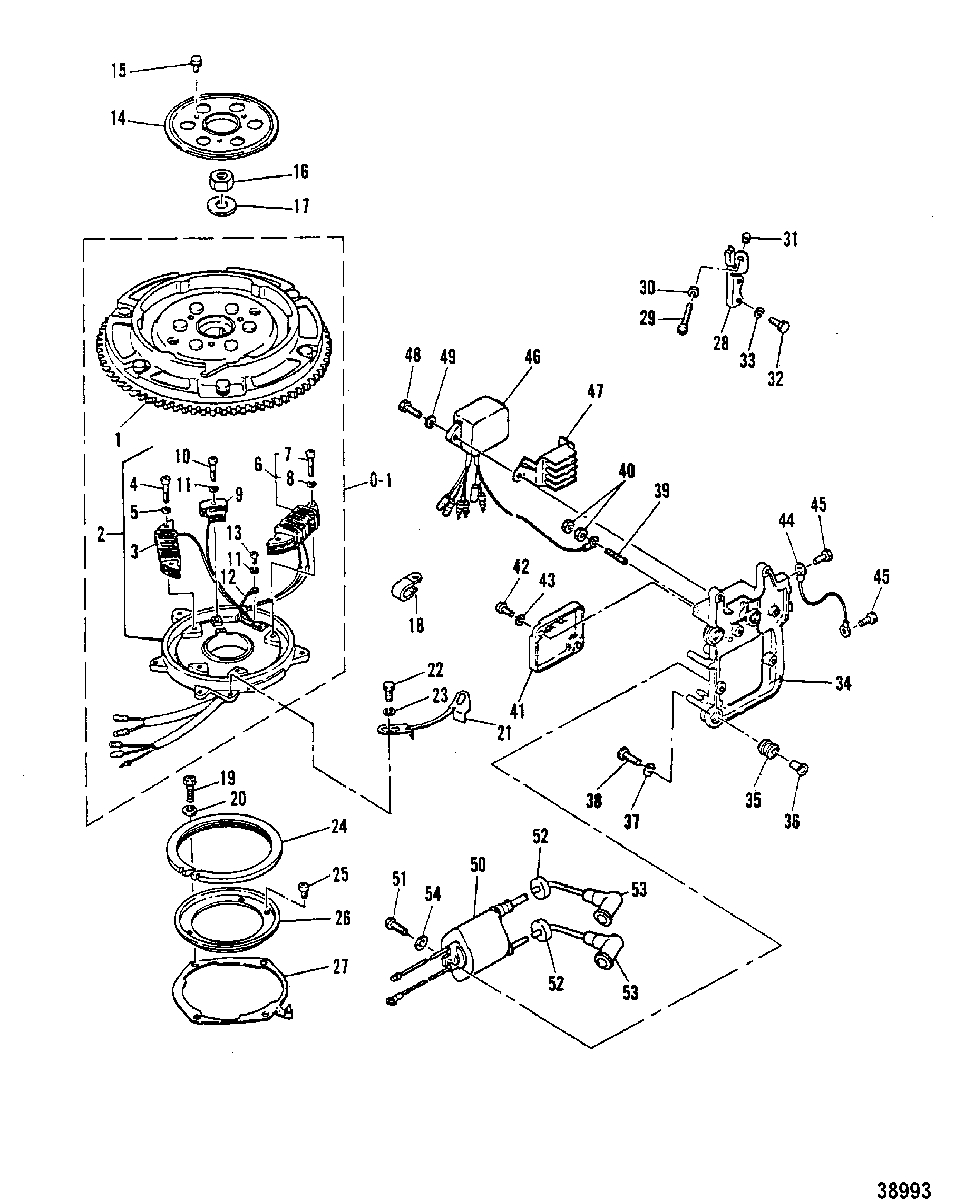

C.D.I. MAGNETO IGNITION для Mariner - 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-007666 THRU 6E9-015000 (M)
-
№АртикулНазвание
-
0-1253-7985M CDI MAGNETO ASSEMBLYCDI MAGNETO ASSEMBLY
-
1253-7987M FLYWHEEL ASSEMBLY (E, EL AND ET)FLYWHEEL ASSEMBLY (E, EL AND ET)
-
1253-7988M FLYWHEEL ASSEMBLY (M AND ML)FLYWHEEL ASSEMBLY (M AND ML)
-
293108M BASE ASSEMBLY, FLYWHEELBASE ASSEMBLY, FLYWHEEL
-
384879T COIL, IGNITIONCOIL, IGNITION
-
484480M SCREWSCREW
-
513-82186M WASHERWASHER
-
693049M COIL ASSEMBLY, LIGHTINGCOIL ASSEMBLY, LIGHTING
-
710-83108M SCREWSCREW
-
813-82186M WASHERWASHER
-
984877M PULSERPULSER
-
1010-84882M SCREWSCREW
-
1113-82206M LOCKWASHERLOCKWASHER
-
1284-84883M WIREWIRE
-
1310-82499M SCREWSCREW
-
1493109M COVERCOVER
-
1510-93110M BOLTBOLT
-
1611-893789 NUTNUT
-
1712-893762 WASHERWASHER
-
1854-82042M CLAMPCLAMP
-
1910-14232M SCREWSCREW
-
2013-82186M WASHERWASHER
-
2197679M STOP, MAGNETO BASESTOP, MAGNETO BASE
-
2210-84088M BOLTBOLT
-
2312-82214M WASHERWASHER
-
2483566M RETAINER, MAGNETO BASERETAINER, MAGNETO BASE
-
2510-11832M SCREWSCREW
-
2619139M RETAINER, MAGNETO BASE
SN# (M-008626 ML-311889 E-105664 EL-428358, ETL-502266 & UpRETAINER, MAGNETO BASE
SN# (M-008626 ML-311889 E-105664 EL-428358, ETL-502266 & Up -
2619139M RETAINER, MAGNETO BASE
SN# (M-008625 ML-311888 E-105663 EL-428357, ETL-502265 & BelowRETAINER, MAGNETO BASE
SN# (M-008625 ML-311888 E-105663 EL-428357, ETL-502265 & Below -
2783569M PLATE, BASE FRICTIONPLATE, BASE FRICTION
-
2883579M STOP, MAGNETO BASESTOP, MAGNETO BASE
-
2910-83924M SCREWSCREW
-
3011-82390M NUTNUT
-
3181415M CAPCAP
-
3210-826957M BOLTBOLT
-
3313-82212M LOCKWASHERLOCKWASHER
-
3493113M BRACKETBRACKET
-
3525-881304 DAMPERDAMPER
-
3623-804344003 BUSHINGBUSHING
-
3712-83769M WASHERWASHER
-
3810-82405M BOLTBOLT
-
3916-84870M STUDSTUD
-
4011-82389M NUTNUT
-
4193115M COVERCOVER
-
4210-83356M SCREWSCREW
-
4312-82211M WASHERWASHER
-
4484-81250M WIRE, GROUNDWIRE, GROUND
-
4510-91772M BOLTBOLT
-
4684872T CDI UNIT ASSEMBLYCDI UNIT ASSEMBLY
-
4793116M HOLDERHOLDER
-
4810-82405M BOLTBOLT
-
4912-82214M WASHERWASHER
-
5084874T COIL, IgnitionCOIL, Ignition
-
5110-82405M BOLTBOLT
-
5225-82069M GROMMETGROMMET
-
5385-63709A1 CAP, Spark Plug (STD)CAP, Spark Plug (STD)
-
5385-63709A1 CAP ASSEMBLY, Spark Plug (OPT)CAP ASSEMBLY, Spark Plug (OPT)
-
5412-82214M WASHERWASHER
