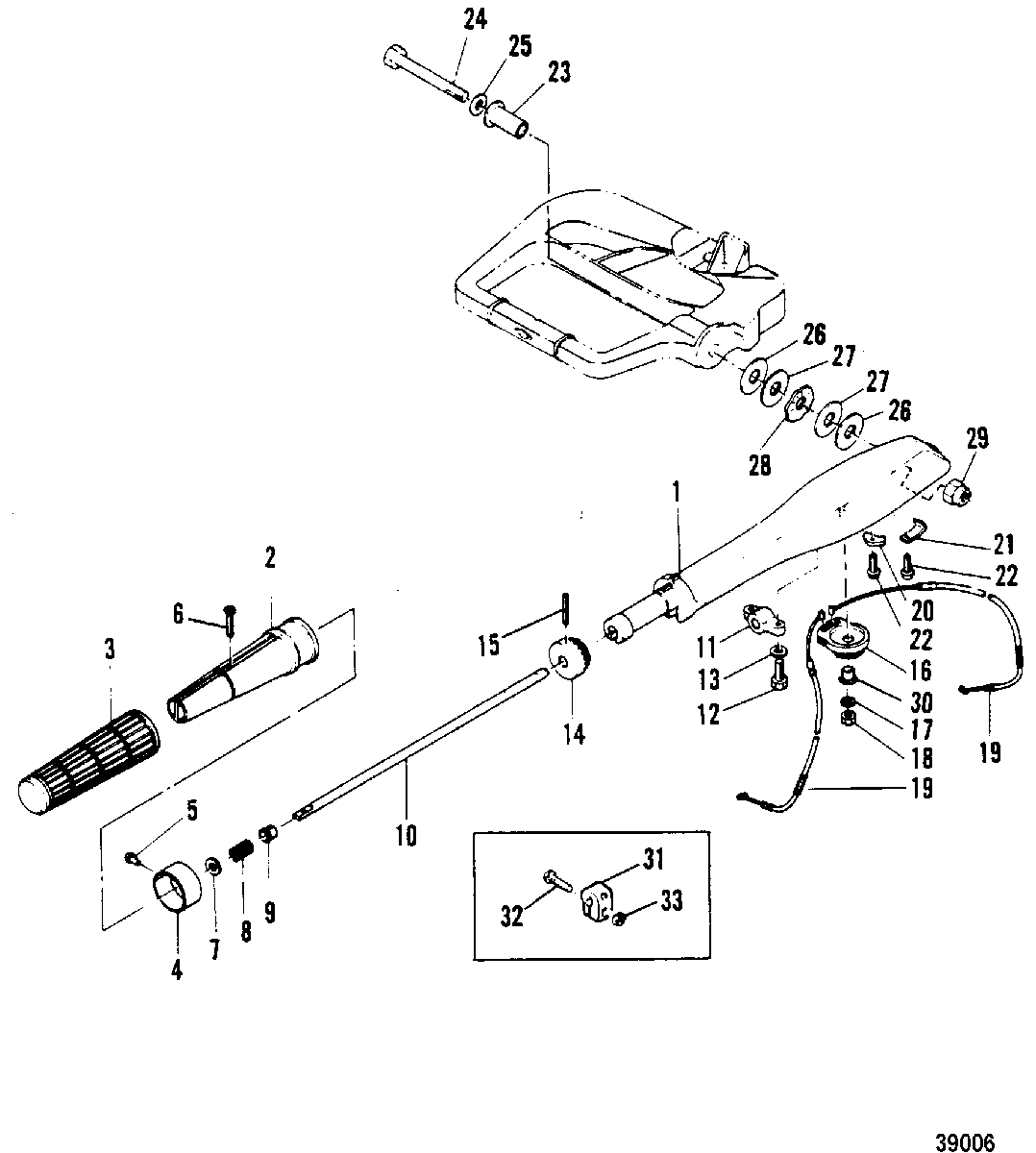

STEERING HANDLE для Mariner - 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-007666 THRU 6E9-015000 (M)
-
№АртикулНазвание
-
0-195419A1 HANDLE ASSEMBLY, Steering
(NOT USED WITH REMOTE CONTROL)HANDLE ASSEMBLY, Steering
(NOT USED WITH REMOTE CONTROL) -
184971M HANDLE, STEERINGHANDLE, STEERING
-
281585M GRIP, STEERING HANDLEGRIP, STEERING HANDLE
-
38M0080456 HANDLE, RUBBER, HADLE GRIPHANDLE, RUBBER, HADLE GRIP
-
497747M INDICATOR, THROTTLEINDICATOR, THROTTLE
-
517-81907M RIVETRIVET
-
610-811916M SCREWSCREW
-
712-82220M WASHERWASHER
-
824-82095M SPRINGSPRING
-
923-81945M BUSHINGBUSHING
-
1083516M SHAFT, STEERING HANDLESHAFT, STEERING HANDLE
-
1183517M BRACKETBRACKET
-
1210-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1312-82214M WASHERWASHER
-
1443-80778M GEARGEAR
-
1517-82151M PIN, ROLLPIN, ROLL
-
1643-83518M PINIONPINION
-
1713-82212M LOCKWASHERLOCKWASHER
-
1811-82389M NUTNUT
-
1997748M WIRE, Throttle, COMPLETEWIRE, Throttle, COMPLETE
-
2083521M HOLDER, WIREHOLDER, WIRE
-
2183522M HOLDER, WIREHOLDER, WIRE
-
2210-83523M SCREWSCREW
-
2323-81950M BUSHINGBUSHING
-
2410-94514M BOLTBOLT
-
2512-83524M WASHERWASHER
-
2612-81853M WASHERWASHER
-
2712-81815M WASHERWASHER
-
2813-81870M WASHER, WAVEWASHER, WAVE
-
2911-81786M NUT, NYLONNUT, NYLON
-
3023-83519M BUSHINGBUSHING
-
3182895M FRICTION PIECEFRICTION PIECE
-
3210-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
3311-83056M NUT, NYLONNUT, NYLON
