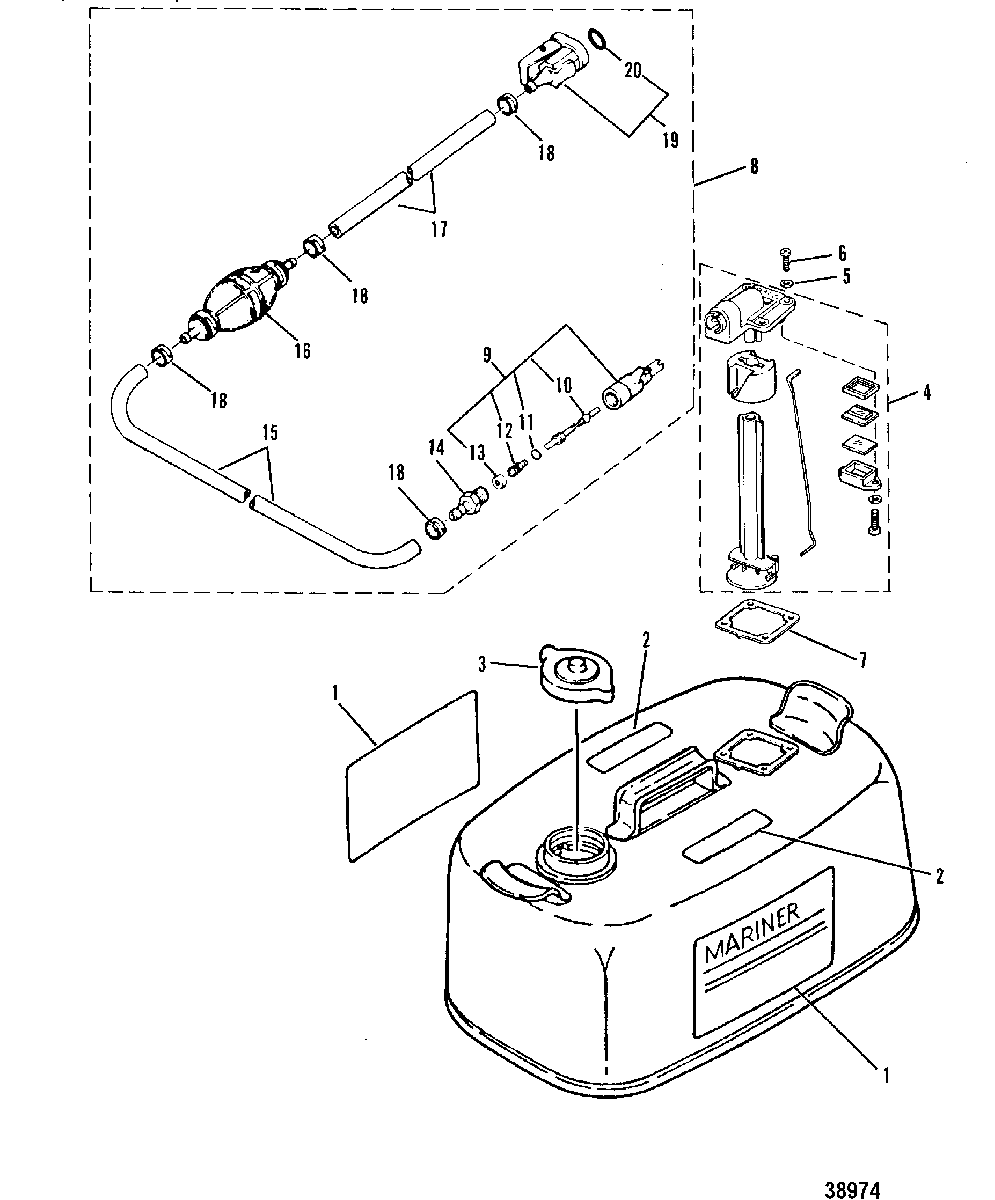

Fuel Tank and Fuel Line, Original Equipment для Mariner - 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-007666 THRU 6E9-015000 (M)
-
№АртикулНазвание
-
137-14617M DECAL, SIDE (ENGLISH)DECAL, SIDE (ENGLISH)
-
137-95504M DECAL, SIDE (FRENCH)DECAL, SIDE (FRENCH)
-
137-95489M DECAL, TOP (ENGLISH)DECAL, TOP (ENGLISH)
-
237-95503M DECAL, TOP (FRENCH)DECAL, TOP (FRENCH)
-
336-18962M CAP, Fuel Tank
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & UpCAP, Fuel Tank
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up -
336-18962M CAP ASSEMBLY, Fuel Tank
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & BelowCAP ASSEMBLY, Fuel Tank
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below -
417-19257M PINPIN
-
512-95501M SEALSEAL
-
610-95502M SCREWSCREW
-
727-95500M GASKET, FUEL METER ASS'YGASKET, FUEL METER ASS'Y
-
832-877681Q8 LINE ASSEMBLY, FuelLINE ASSEMBLY, Fuel
-
930185Q3 BAYONET ASSEMBLY, FuelBAYONET ASSEMBLY, Fuel
-
1030185Q3 STEM, BAYONET BODYSTEM, BAYONET BODY
-
1125-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
1224-30189 SPRING, BAYONET BODY ASS'YSPRING, BAYONET BODY ASS'Y
-
1330188 WASHER, CAPWASHER, CAP
-
1422-63187 FITTING, Barb (.250-18), FUEL LINEFITTING, Barb (.250-18), FUEL LINE
-
1532-16571M HOSE, CONNECTOR HOUSING TO BULBHOSE, CONNECTOR HOUSING TO BULB
-
1613330Q07 BULB, PRIMER
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & UpBULB, PRIMER
SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up -
1689396Q01 BULB, PRIMER
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & BelowBULB, PRIMER
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below -
1732-16571M HOSE, BULB TO ENGINE CONNECTORHOSE, BULB TO ENGINE CONNECTOR
-
1854-16574M CLAMP, HOSECLAMP, HOSE
-
1922-13563Q3 CONNECTOR, Fuel, ENGINE ENDCONNECTOR, Fuel, ENGINE END
-
2025-82789M O-RINGO-RING
