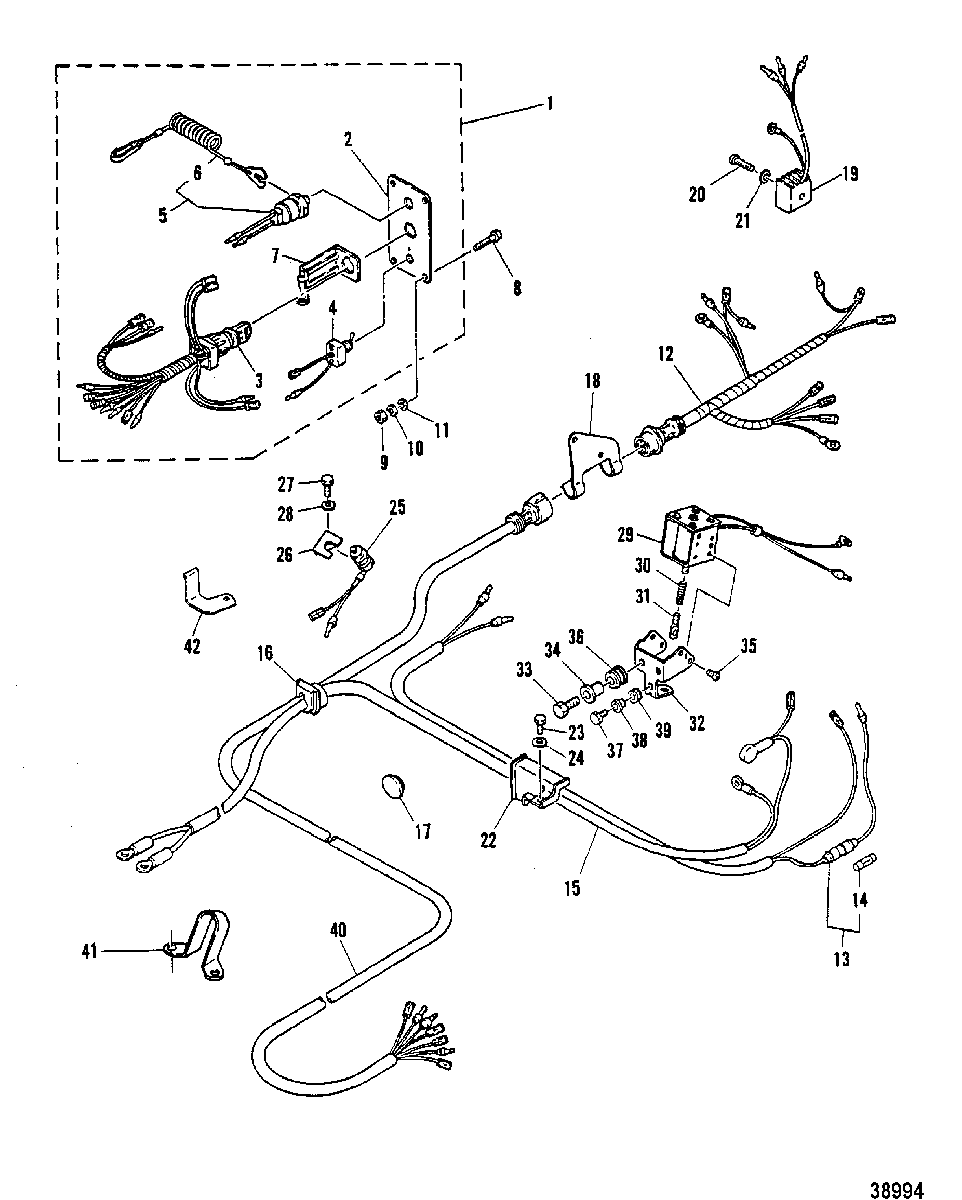

ELECTRIC START COMPONENTS для Mariner - 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-500101 & Up
-
№АртикулНазвание
-
118975A1 PANEL ASSEMBLY, SwitchPANEL ASSEMBLY, Switch
-
216711M PANELPANEL
-
387-8M0078321 KEY SWITCHKEY SWITCH
-
487-84944M SWITCH, ChokeSWITCH, Choke
-
587-16710M SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
697756M STOPPERSTOPPER
-
716712M BRACKET, CORD CLAMPBRACKET, CORD CLAMP
-
810-84946M SCREWSCREW
-
911-82388M NUT, (M5)NUT, (M5)
-
1013-82186M WASHERWASHER
-
1112-82211M WASHERWASHER
-
1284-95412M HARNESS ASSEMBLY (E AND EL)HARNESS ASSEMBLY (E AND EL)
-
1284-17038M HARNESS ASSEMBLY (ET)HARNESS ASSEMBLY (ET)
-
1384-97692M HARNESS ASSEMBLY (E AND EL)HARNESS ASSEMBLY (E AND EL)
-
1488-81522M FUSE (12V - 20A)FUSE (12V - 20A)
-
1584-97691M HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1625-94476M GROMMET (E AND EL)GROMMET (E AND EL)
-
1625-17039M GROMMET (ET)GROMMET (ET)
-
1782066M GROMMETGROMMET
-
1895411M BRACKET, HARNESS (E AND EL)BRACKET, HARNESS (E AND EL)
-
1817040M BRACKET, HARNESS (ET)
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & BelowBRACKET, HARNESS (ET)
SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below -
198M0091976 RECTIFIERRECTIFIER
-
2010-83108M SCREWSCREW
-
2112-82211M WASHERWASHER
-
2297066M CLAMPCLAMP
-
2310-91772M BOLTBOLT
-
2412-82214M WASHERWASHER
-
2587-97684M SWITCH ASSEMBLY, Neutral StartSWITCH ASSEMBLY, Neutral Start
-
2697683M BRACKETBRACKET
-
2710-826957M BOLTBOLT
-
2813-82212M LOCKWASHERLOCKWASHER
-
2997685T SOLENOID ASSEMBLYSOLENOID ASSEMBLY
-
3084701M WIRE, PULLWIRE, PULL
-
3184702M HOOK, PULL WIREHOOK, PULL WIRE
-
3297686M BRACKET, SOLENOIDBRACKET, SOLENOID
-
3310-82405M BOLTBOLT
-
3423-804344003 BUSHINGBUSHING
-
3510-17661M SCREWSCREW
-
3625-881304 DAMPERDAMPER
-
3710-91686M BOLTBOLT
-
3823-97688M COLLARCOLLAR
-
3925-97687M GROMMETGROMMET
-
4084-84711M EXTENSION (5M)(7P)EXTENSION (5M)(7P)
-
4084-14738M HARNESS ASSEMBLY, Extension (5M)(10P)HARNESS ASSEMBLY, Extension (5M)(10P)
-
4197701M EYE, ENGINE LIFTINGEYE, ENGINE LIFTING
-
4242436M BRACKETBRACKET
