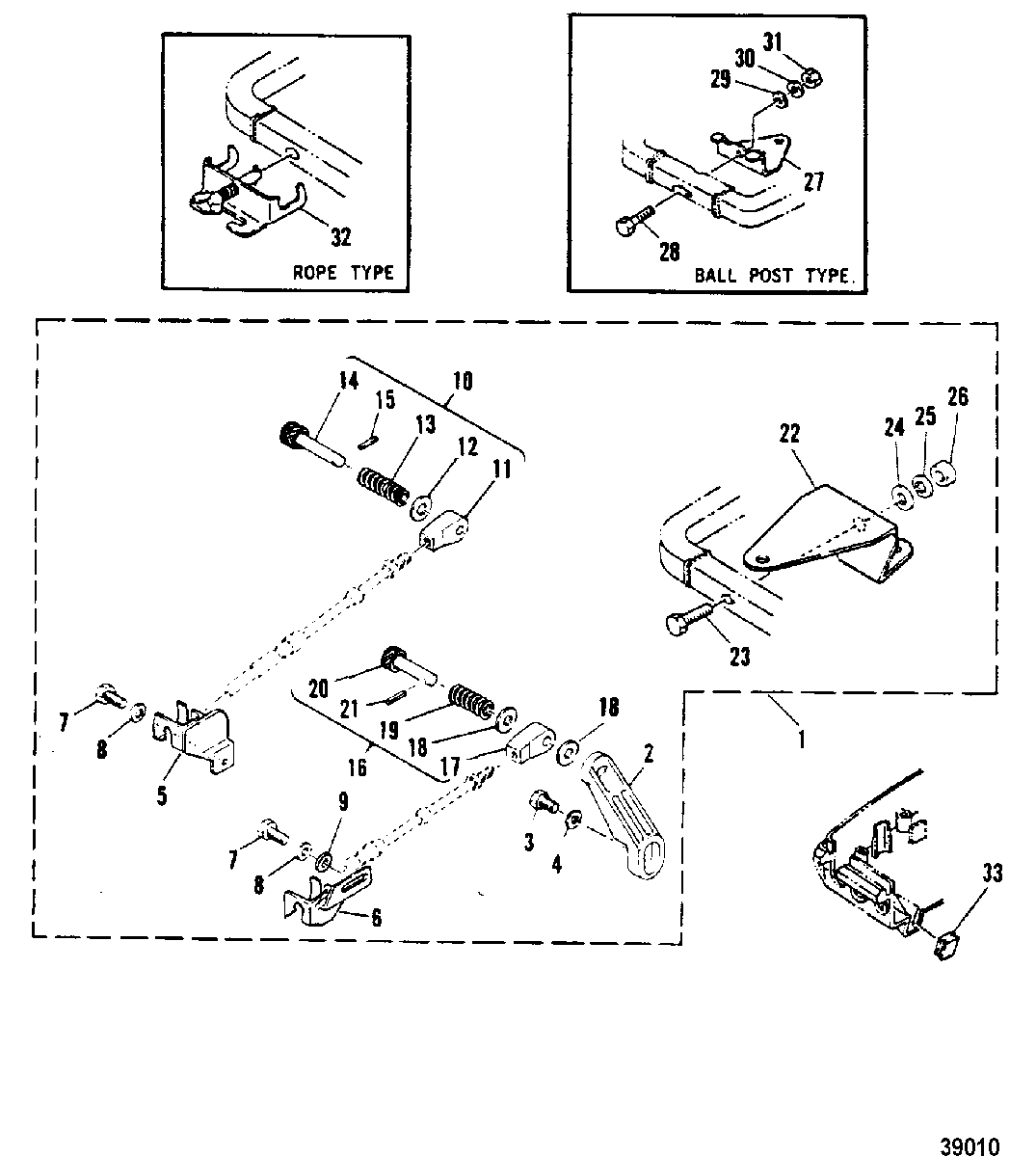

REMOTE CONTROL ATTACHING KIT для Mariner - 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-500101 & Up
-
№АртикулНазвание
-
143992A1 ATTACHING KIT, Remote ControlATTACHING KIT, Remote Control
-
283716M LEVER, ThrottleLEVER, Throttle
-
310-91772M BOLTBOLT
-
413-82212M LOCKWASHERLOCKWASHER
-
583718M BOLTBOLT
-
683932M BRACKET, REMOTE CONTROLBRACKET, REMOTE CONTROL
-
710-826957M BOLTBOLT
-
813-82212M LOCKWASHERLOCKWASHER
-
912-82213M WASHERWASHER
-
1083719M END, Cable (SHIFT)END, Cable (SHIFT)
-
1183720M END, CableEND, Cable
-
1212-82216M WASHERWASHER
-
1324-83721M SPRINGSPRING
-
1417-814500M HOOK, CABLEHOOK, CABLE
-
1517-82146M PIN, ROLLPIN, ROLL
-
1683933M END, Cable (THROTTLE)END, Cable (THROTTLE)
-
1783934M END, CableEND, Cable
-
1812-82216M WASHERWASHER
-
1924-83725M SPRINGSPRING
-
2017-814499M HOOK, CABLEHOOK, CABLE
-
2117-82146M PIN, ROLLPIN, ROLL
-
2283698M HOOK, STEERING (STEERING GUIDE TYPE)HOOK, STEERING (STEERING GUIDE TYPE)
-
2310-91636M BOLTBOLT
-
2412-82220M WASHERWASHER
-
2513-82218M LOCKWASHERLOCKWASHER
-
2611-82395M NUTNUT
-
2711670T BRACKET, STEERING (BALL POST TYPE)BRACKET, STEERING (BALL POST TYPE)
-
2810-91636M BOLTBOLT
-
2912-82220M WASHERWASHER
-
3013-82218M LOCKWASHERLOCKWASHER
-
3111-81785M LOCKNUT, NYLONLOCKNUT, NYLON
-
3283727M BRACKET (ROPE TYPE)BRACKET (ROPE TYPE)
-
3325-83728M GROMMETGROMMET
