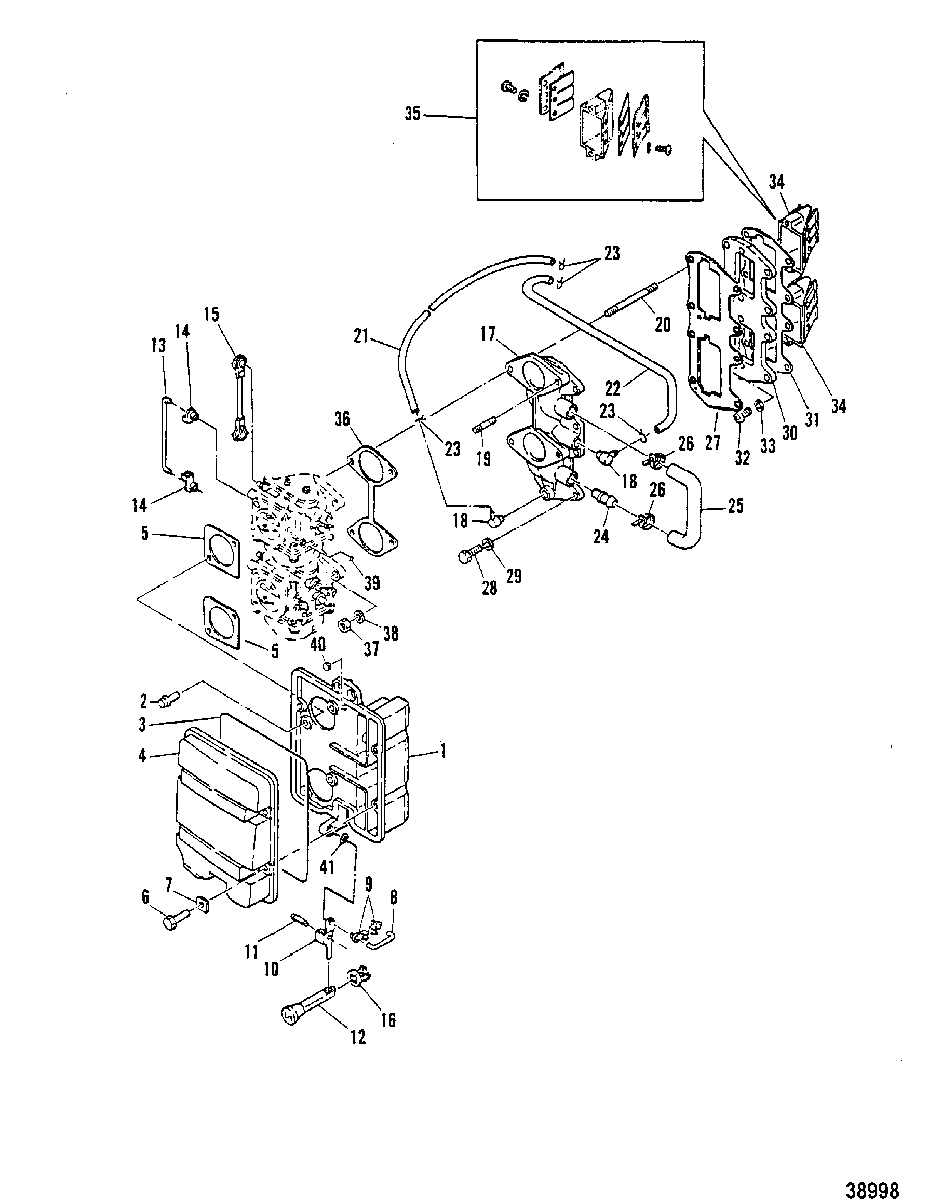

INTAKE MANIFOLD для Mariner - 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-500101 & Up
-
№АртикулНазвание
-
197713M COVER, INNERCOVER, INNER
-
210-91686M BOLTBOLT
-
326-97714M SEALSEAL
-
497715M COVER, OUTERCOVER, OUTER
-
527-97716 GASKET, PLATEGASKET, PLATE
-
610-826957M BOLTBOLT
-
712-97717M WASHERWASHER
-
897718M ROD, CHOKE LINKROD, CHOKE LINK
-
916333 BRACKET, CHOKE LEVERBRACKET, CHOKE LEVER
-
1097719M LEVER, CHOKELEVER, CHOKE
-
1117-82155M PIN, SPRINGPIN, SPRING
-
1283960M KNOB, CHOKEKNOB, CHOKE
-
13810938M ROD, CHOKE LINKROD, CHOKE LINK
-
1416333 BRACKET, CHOKE LEVERBRACKET, CHOKE LEVER
-
15810939M ROD, LEVERROD, LEVER
-
1625-84760M GROMMETGROMMET
-
1797720M MANIFOLD, INTAKEMANIFOLD, INTAKE
-
1821-80727M CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
1916-811028M STUDSTUD
-
2016-97721M STUDSTUD
-
2132-811045M HOSEHOSE
-
2232-811045M HOSEHOSE
-
2354-82046M CLAMPCLAMP
-
2422-97722M PIPE, JOINTPIPE, JOINT
-
2532-97723M HOSEHOSE
-
2656762 CLIPCLIP
-
2727-83355 GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
2810-82405M BOLTBOLT
-
2913-82212M LOCKWASHERLOCKWASHER
-
3083354M MANIFOLD, INTAKEMANIFOLD, INTAKE
-
3127-83355 GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
3210-83356M SCREWSCREW
-
3313-82186M WASHERWASHER
-
3434-94493M REED VALVE ASSEMBLYREED VALVE ASSEMBLY
-
3534-84954M REED SETREED SET
-
3627-97725 GASKETGASKET
-
3711-82389M NUTNUT
-
3812-82214M WASHERWASHER
-
3925-82258M O-RINGO-RING
-
4025-97726M GROMMETGROMMET
-
4113-81865M WASHERWASHER
-
-27-97666M GASKET SETGASKET SET
-
-17068M REPAIR KIT, CarburetorREPAIR KIT, Carburetor
