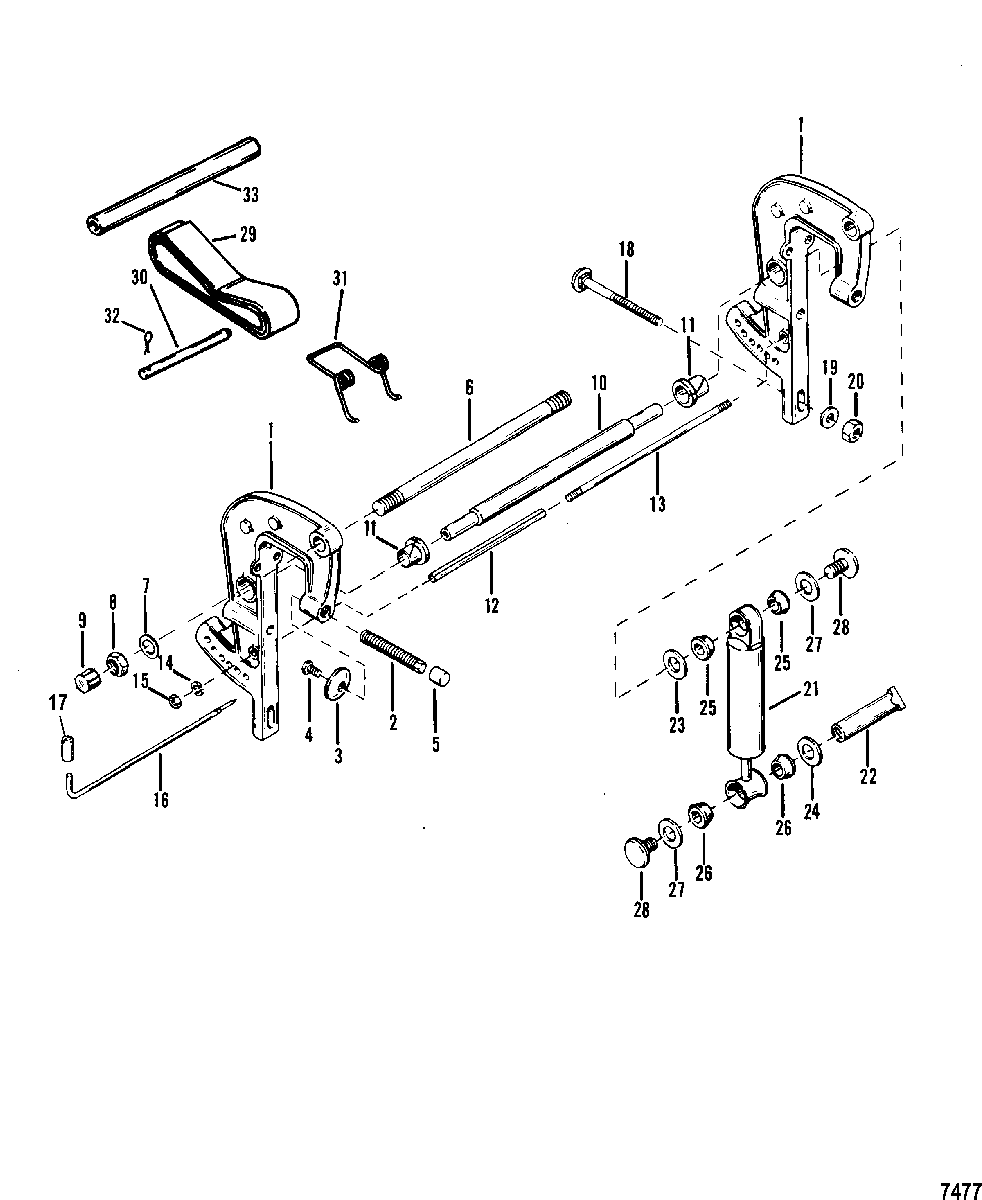

CLAMP BRACKET ASSEMBLY для Mariner - 45 (4 CYL.) 7143688 THRU 0A719280
-
№АртикулНазвание
-
11440-8394A2 CLAMP BRACKET ASSEMBLY (MANUAL)CLAMP BRACKET ASSEMBLY (MANUAL)
-
11440-8394A1 CLAMP BRACKET ASSEMBLY ( ELECTRIC) MERCURYCLAMP BRACKET ASSEMBLY ( ELECTRIC) MERCURY
-
11440-8394A3 CLAMP BRACKET ASSEMBLY (ELECTRIC ) MARINERCLAMP BRACKET ASSEMBLY (ELECTRIC ) MARINER
-
210-90470A3 THUMB SCREW ASSEMBLY (MANUAL)THUMB SCREW ASSEMBLY (MANUAL)
-
210-78492A1 THUMB SCREW ASSEMBLY (ELECTRIC)THUMB SCREW ASSEMBLY (ELECTRIC)
-
312-78493 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
410-78495 SCREW, WASHER TO THUMB SCREWSCREW, WASHER TO THUMB SCREW
-
575043 CAP, THUMB SCREW (ELECTRIC)CAP, THUMB SCREW (ELECTRIC)
-
68M0041936 TILT TUBETILT TUBE
-
712-52864 WASHER, TILT TUBEWASHER, TILT TUBE
-
811-858869 NUT, (.875-14), TILT TUBENUT, (.875-14), TILT TUBE
-
953078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
1055-28416 PIN, UPPER SHOCK - WITH SHOCK ABSORBERPIN, UPPER SHOCK - WITH SHOCK ABSORBER
-
1123-73203 BUSHING, CLAMP BRACKETBUSHING, CLAMP BRACKET
-
1223-59623 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
1316-59625 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1413-26993 LOCKWASHER, (.312), CLAMP BRACKET STUDLOCKWASHER, (.312), CLAMP BRACKET STUD
-
1511-28770 NUT, (.312-24) Stainless Steel, CLAMP BRACKET STUDNUT, (.312-24) Stainless Steel, CLAMP BRACKET STUD
-
1617-8M0026068 PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
1732-28052 SLEEVE, RUBBER - TILT LOCK PINSLEEVE, RUBBER - TILT LOCK PIN
-
1810-68298 BOLT, (.375-16 x 3.250), CLAMP BRACKET TO TRANSOMBOLT, (.375-16 x 3.250), CLAMP BRACKET TO TRANSOM
-
1912-46765 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1810-89673 SCREW, (.375-16 x 5.00), CLAMP BRACKET TO TRANSOMSCREW, (.375-16 x 5.00), CLAMP BRACKET TO TRANSOM
-
1912-28420 WASHER, (1-1/ 4 x 25/64 x .125 SS), CLAMP BRACKET BOLTWASHER, (1-1/ 4 x 25/64 x .125 SS), CLAMP BRACKET BOLT
-
1912-68300 WASHER, (..88 x .39 x .06), CLAMP BRACKET BOLTWASHER, (..88 x .39 x .06), CLAMP BRACKET BOLT
-
2011-82671112 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
2155-58780A7 SHOCK ABSORBER MERCURYSHOCK ABSORBER MERCURY
-
2155-58780A4 SHOCK ABSORBERSHOCK ABSORBER
-
2255-696531 PIN, LOWER SHOCKPIN, LOWER SHOCK
-
2312-34937 WASHER, (.766 x 1.312 x .125), UPPER BUSHING RETAINER (INNER)WASHER, (.766 x 1.312 x .125), UPPER BUSHING RETAINER (INNER)
-
2412-59378 WASHER, LOWER BRUSHING RETAINER (INNER)WASHER, LOWER BRUSHING RETAINER (INNER)
-
2523-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
-
2623-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
-
2712-69374 WASHER, UPPER AND LOWER BUSHING (OUTER)WASHER, UPPER AND LOWER BUSHING (OUTER)
-
2810-69375A1 SCREW, (.500-20 x .625), UPPER AND LOWER SHOCK PINSCREW, (.500-20 x .625), UPPER AND LOWER SHOCK PIN
-
2998876 STRAP, TILT STOPSTRAP, TILT STOP
-
3098878 PIN, LOWER SHOCK MOUNTPIN, LOWER SHOCK MOUNT
-
3124-98875 SPRINGSPRING
-
3218-328571 COTTER PINCOTTER PIN
-
3398877 SHOCK MOUNT, UpperSHOCK MOUNT, Upper
