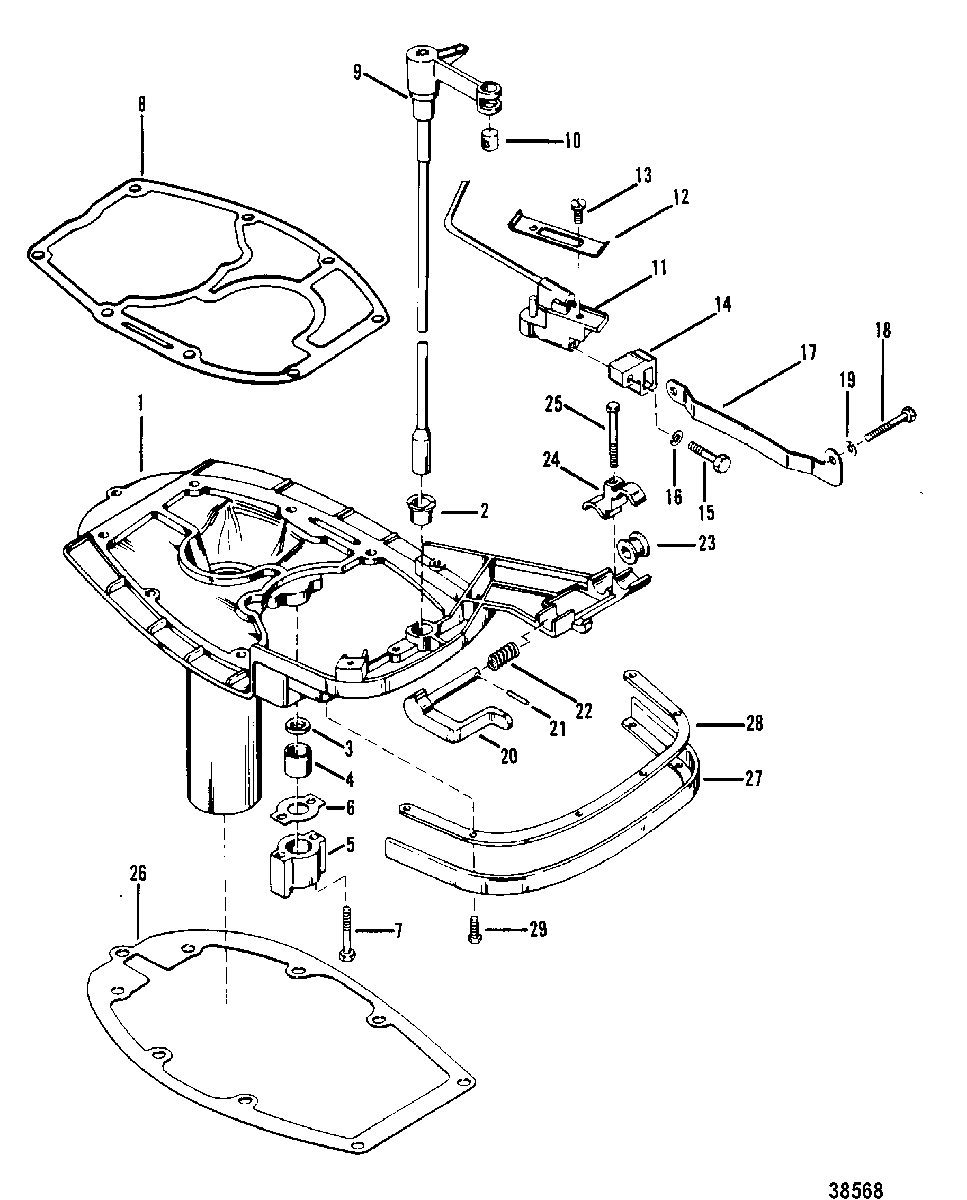

EXHAUST PLATE AND SHIFT LINKAGE для Mariner - 45 (4 CYL.) 7143688 THRU 0A719280
-
№АртикулНазвание
-
142819A2 PLATE ASSEMLBY, EXHAUST EXTENSIONPLATE ASSEMLBY, EXHAUST EXTENSION
-
223-27132 BUSHING, EXHAUST EXTENSION PLATEBUSHING, EXHAUST EXTENSION PLATE
-
312-38453 WASHER, NYLON - WATER INLET TUBEWASHER, NYLON - WATER INLET TUBE
-
426-38452 SEAL, RUBBER - WATER TUBESEAL, RUBBER - WATER TUBE
-
579799 HOUSING, WATER INLET TUBE SEALHOUSING, WATER INLET TUBE SEAL
-
627-797971 GASKET, HOUSINGGASKET, HOUSING
-
710-79798 SCREW, (#10-32 x 1.380), HOUSING TO EXHAUST PLATESCREW, (#10-32 x 1.380), HOUSING TO EXHAUST PLATE
-
827-796501 GASKET, POWERHEADGASKET, POWERHEAD
-
976632A3 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
-
976632A4 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
-
1060572 BARREL, NYLON - UPPER SHIFT SHAFTBARREL, NYLON - UPPER SHIFT SHAFT
-
1174739A3 ACTUATOR ASSEMBLY, SHIFT CONTROLACTUATOR ASSEMBLY, SHIFT CONTROL
-
1224-37934 SPRING, SHIFT CABLESPRING, SHIFT CABLE
-
1310-38069 SCREW, SPRING TO ACTUATORSCREW, SPRING TO ACTUATOR
-
1437932 BEARING, NYLON - SHIFT CONTROL ACTUATORBEARING, NYLON - SHIFT CONTROL ACTUATOR
-
1510-36137 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
1613-21272 LOCKWASHER, (.250), BEARING SCREWLOCKWASHER, (.250), BEARING SCREW
-
1737935 RAIL, SHIFT CONTROL BEARINGRAIL, SHIFT CONTROL BEARING
-
1810-69028 SCREW, (.250-28 x .750) Stainless Steel, RAIL TO EXHAUST MANIFOLD COVERSCREW, (.250-28 x .750) Stainless Steel, RAIL TO EXHAUST MANIFOLD COVER
-
1913-26992 LOCKWASHER, (.250) Stainless Steel, RAIL SCREWLOCKWASHER, (.250) Stainless Steel, RAIL SCREW
-
2059037A2 LEVER, THROTTLE AND SHIFT CABLESLEVER, THROTTLE AND SHIFT CABLES
-
2117-239281 PIN, ROLL - QUICK DISCONNECT LEVERPIN, ROLL - QUICK DISCONNECT LEVER
-
2224-38005 SPRING, QUICK DISCONNECT LEVERSPRING, QUICK DISCONNECT LEVER
-
2323-37927 BUSHING, Nylon, QUICK DISCONNECT LEVERBUSHING, Nylon, QUICK DISCONNECT LEVER
-
2437926 RETAINER, NYLON BEARINGRETAINER, NYLON BEARING
-
2510-37923 SCREW, (.250-28 x 1.250), BEARING RETAINERSCREW, (.250-28 x 1.250), BEARING RETAINER
-
2627-385011 GASKET, EXHAUST EXTENSION PLATEGASKET, EXHAUST EXTENSION PLATE
-
2738156 SEAL, RUBBER - EXHAUST EXTENSION PLATESEAL, RUBBER - EXHAUST EXTENSION PLATE
-
2899136 STRIP, RUBBER SEALSTRIP, RUBBER SEAL
-
2910-37571 SCREW, (.190-32 x .500), RETAINING STRIPSCREW, (.190-32 x .500), RETAINING STRIP
-
-27-72486A32 GASKET SETGASKET SET
