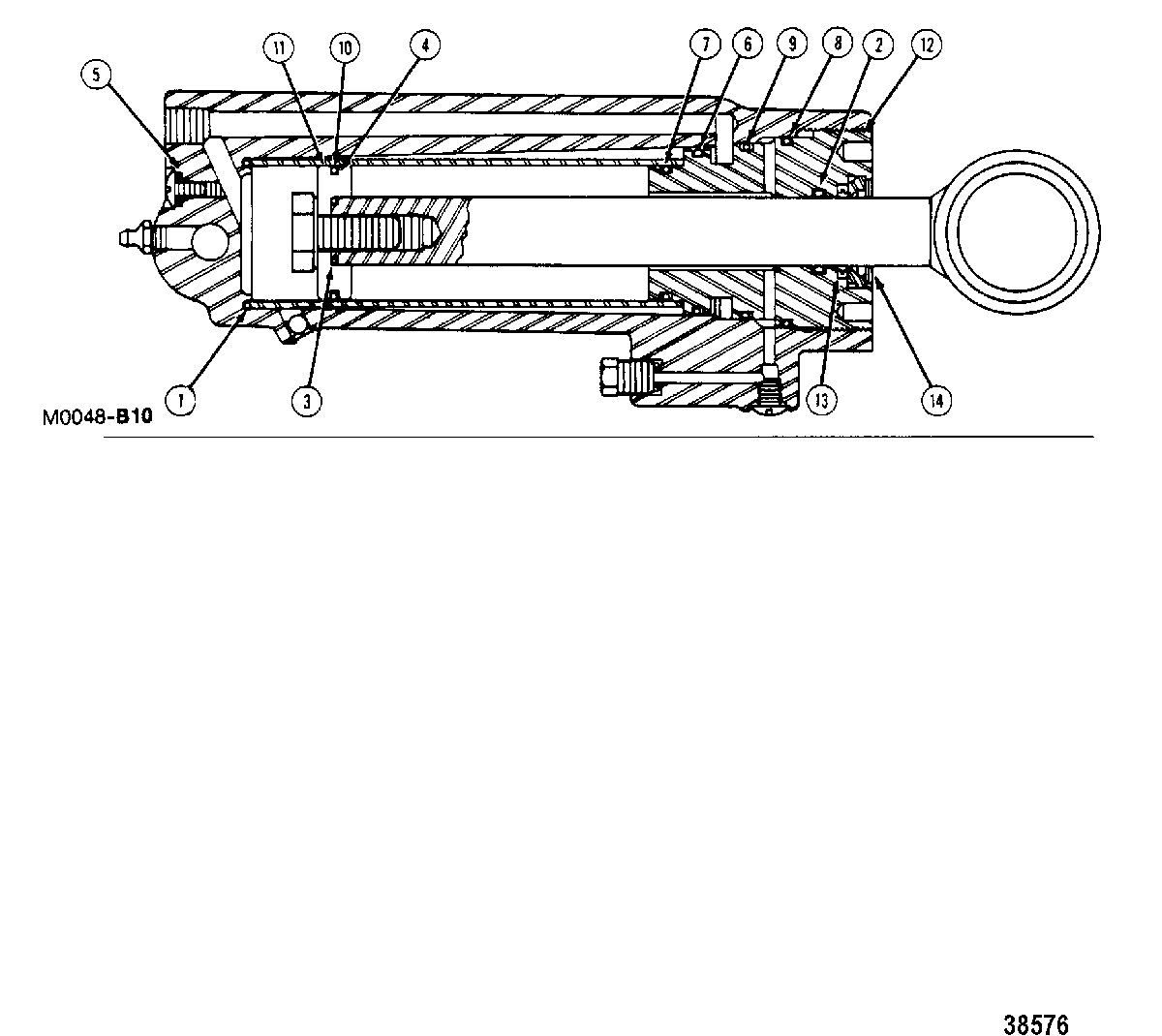

POWER TRIM CYLINDER REPAIR KITS(76509A3 AND 76509A23) для Mariner - 45 (4 CYL.) 7143688 THRU 0A719280
-
№АртикулНазвание
-
-64507A1 REPAIR KITREPAIR KIT
-
1N.S.S. Not Sold Separate, O-Ring (1-1/2" X 1-5/8" X 1/16")Not Sold Separate, O-Ring (1-1/2" X 1-5/8" X 1/16")
-
2N.S.S. Not Sold Separate, O-Ring (3/4" X 15/16" X 1/8")Not Sold Separate, O-Ring (3/4" X 15/16" X 1/8")
-
3N.S.S. Not Sold Separate, O-Ring (5/8" X 3/4" X 1/1")Not Sold Separate, O-Ring (5/8" X 3/4" X 1/1")
-
4N.S.S. Not Sold Separate, O-Ring (1-1/4" X 1-7/16" X 1/16")Not Sold Separate, O-Ring (1-1/4" X 1-7/16" X 1/16")
-
5N.S.S. Not Sold Separate, O-Ring (7/32" X 11/32" X 1/16")Not Sold Separate, O-Ring (7/32" X 11/32" X 1/16")
-
6N.S.S. Not Sold Separate, O-Ring (1-5/8" X 1-13/16" X 1/8")Not Sold Separate, O-Ring (1-5/8" X 1-13/16" X 1/8")
-
7N.S.S. Not Sold Separate, O-Ring (1-5/16" X 1-1/2" X 1/8")Not Sold Separate, O-Ring (1-5/16" X 1-1/2" X 1/8")
-
8N.S.S. Not Sold Separate, O-Ring (1-7/8" X 2" X 1/8")Not Sold Separate, O-Ring (1-7/8" X 2" X 1/8")
-
9N.S.S. Not Sold Separate, O-Ring (1-3/4" X 1-15/16" X 1/8")Not Sold Separate, O-Ring (1-3/4" X 1-15/16" X 1/8")
-
10N.S.S. Not Sold Separate, SEAL, SLIPPER - PISTONNot Sold Separate, SEAL, SLIPPER - PISTON
-
11N.S.S. Not Sold Separate, PISTON, ROD - HEAVY DUTYNot Sold Separate, PISTON, ROD - HEAVY DUTY
-
1264505A1 RETAINER ASSEMBLY, PISTONRETAINER ASSEMBLY, PISTON
-
13N.S.S. Not Sold Separate, ROD, SCRAPERNot Sold Separate, ROD, SCRAPER
-
14N.S.S. Not Sold Separate, RETAINER, SCRAPERNot Sold Separate, RETAINER, SCRAPER
-
-92194A14 TRIM CYLINDER
(IDENTIFIED BY CASTING #78439TRIM CYLINDER
(IDENTIFIED BY CASTING #78439 -
-92194A20 TRIM CYLINDER
(IDENTIFIED BY CASTING #78439TRIM CYLINDER
(IDENTIFIED BY CASTING #78439
