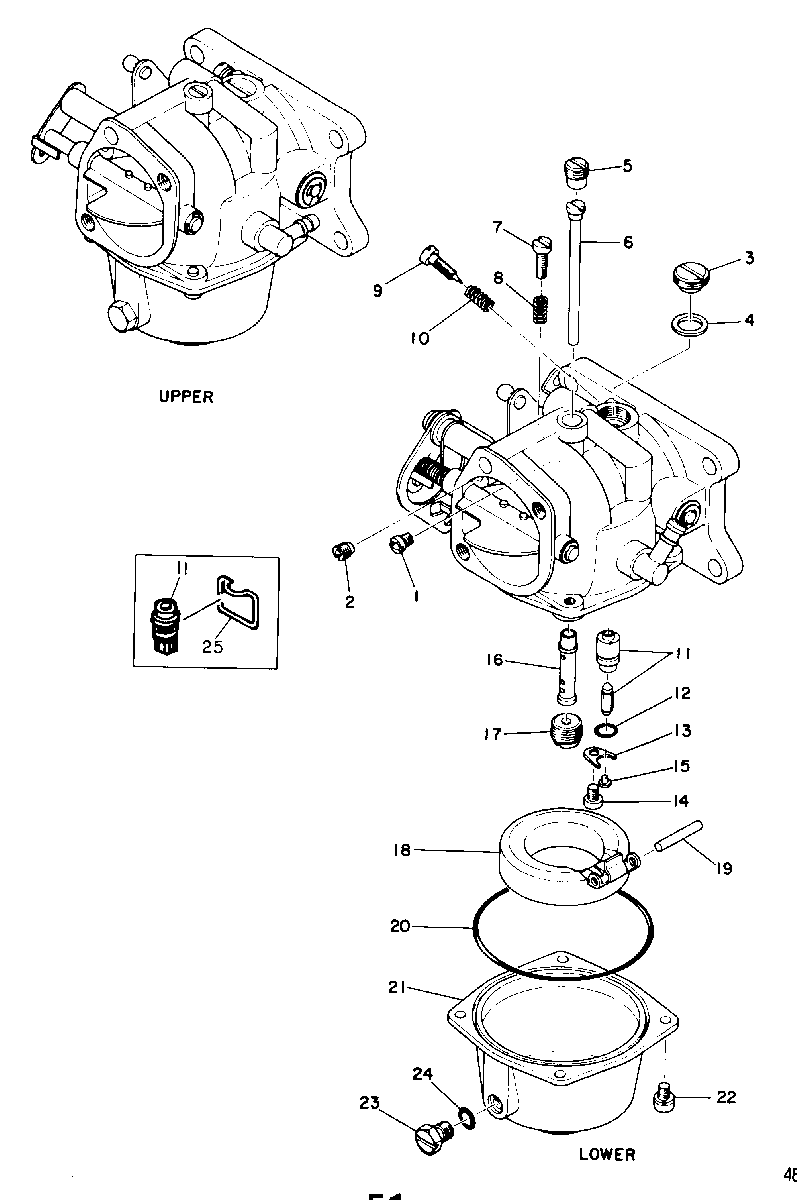

CARBURETOR для Mariner - 48 670-02640 AND BELOW
-
№АртикулНазвание
-
0-11383-6952M CARBURETOR ASS'Y (UPPER)CARBURETOR ASS'Y (UPPER)
-
0-21383-6938M CARBURETOR ASS'Y (LOWER)CARBURETOR ASS'Y (LOWER)
-
181289M JET, PILOT AIR (#105)JET, PILOT AIR (#105)
-
281286M JET, MAIN AIR (#150)JET, MAIN AIR (#150)
-
310-81292M SCREW, PLUG - VALVE SEATSCREW, PLUG - VALVE SEAT
-
412-81701M WASHER, PLUG SCREWWASHER, PLUG SCREW
-
510-81279M SCREW, PLUGSCREW, PLUG
-
681282M JET, PILOT (#92)JET, PILOT (#92)
-
710-81277M SCREW, THROTTLESCREW, THROTTLE
-
824-82080M SPRING, COMPRESSION - THROTTLE SCREWSPRING, COMPRESSION - THROTTLE SCREW
-
910-81281M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
1024-82073M SPRING, COMPRESSION - IDLE SPEED SCREWSPRING, COMPRESSION - IDLE SPEED SCREW
-
1182780M VALVE SEAT ASS'YVALVE SEAT ASS'Y
-
1225-82261M O-RING, VALVEO-RING, VALVE
-
1380026M RETAINER, VALVE SEATRETAINER, VALVE SEAT
-
1410-82499M SCREW, RETAINER ATTACHINGSCREW, RETAINER ATTACHING
-
1517-92639M PIN, VALVEPIN, VALVE
-
1681287M NOZZLE, MAINNOZZLE, MAIN
-
1781284M JET, MAIN (#185)JET, MAIN (#185)
-
1897848M FLOATFLOAT
-
1917-81278M PIN, FLOATPIN, FLOAT
-
2025-82288M O-RING, FLOAT BOWL.O-RING, FLOAT BOWL.
-
2181290M BOWL, FLOATBOWL, FLOAT
-
2210-81758M SCREW, BOWL ATTACHING - WITH WASHERSCREW, BOWL ATTACHING - WITH WASHER
-
2310-81293M SCREW, BOWL DRAINSCREW, BOWL DRAIN
-
2425-81695M O-RING, DRAIN SCREWO-RING, DRAIN SCREW
-
2554-8M0120624 CLIP
SERIAL 00002541-09999999CLIP
SERIAL 00002541-09999999
