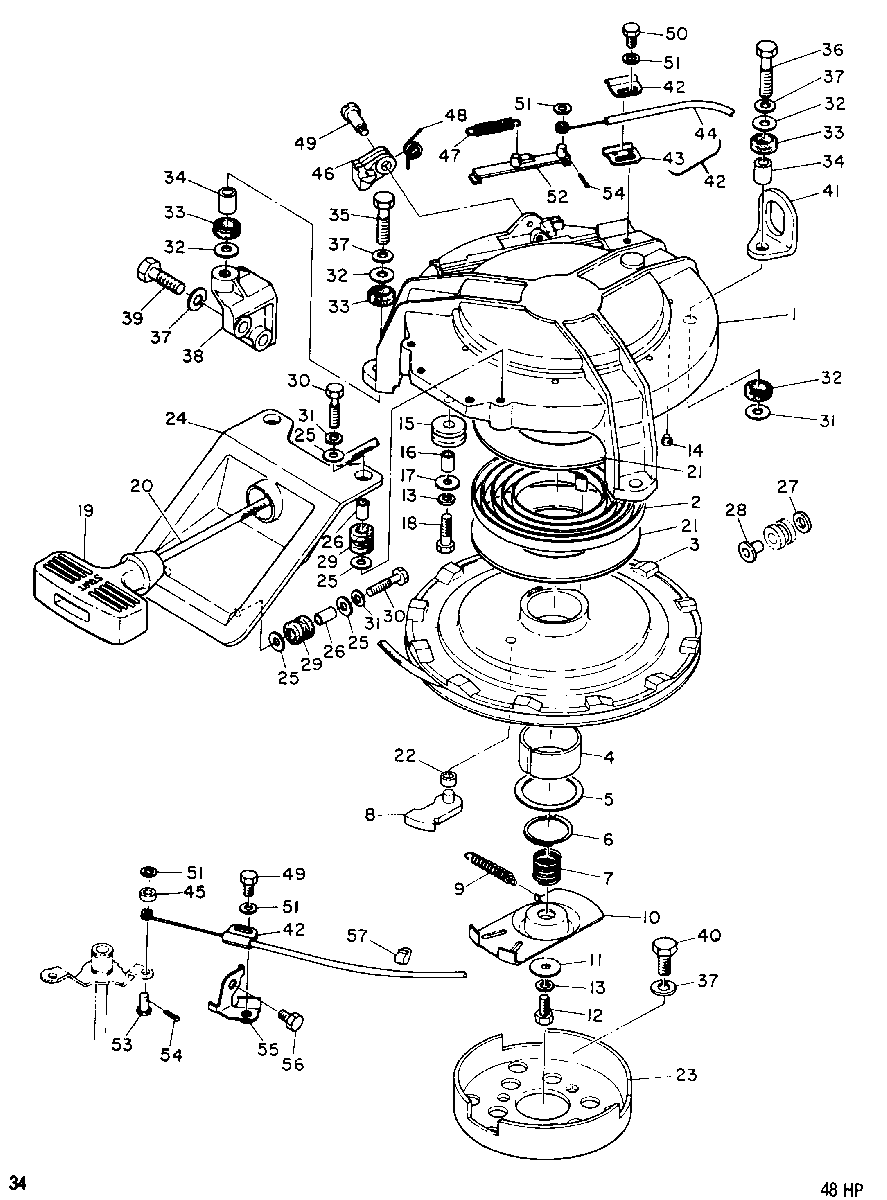

RECOIL STARTER (CONT) для Mariner - 48 670-02640 AND BELOW
-
№АртикулНазвание
-
0-292688M SAFETY STARTER KIT ASS'YSAFETY STARTER KIT ASS'Y
-
4292689M LOCKOUT CABLE COMPLOCKOUT CABLE COMP
-
4381315M CLAMP, LOCKOUT CABLECLAMP, LOCKOUT CABLE
-
4481316M CABLE, LOCKOUTCABLE, LOCKOUT
-
4583152M RING, RETAININGRING, RETAINING
-
4681317M CAM, LOCKOUTCAM, LOCKOUT
-
4724-82102M SPRING, LOCKOUT LEVERSPRING, LOCKOUT LEVER
-
4824-82106M SPRING, LOCKOUT CAM RETURNSPRING, LOCKOUT CAM RETURN
-
4910-81751M PIVOT, LOCKOUT CAMPIVOT, LOCKOUT CAM
-
5010-91772M BOLT, CLAMP ATTACHINGBOLT, CLAMP ATTACHING
-
5112-82213M WASHERWASHER
-
5281303M LEVER, LOCKOUTLEVER, LOCKOUT
-
5317-82136M PIN, CLEVIS - SHIFT LEVERPIN, CLEVIS - SHIFT LEVER
-
5418-43089M PINPIN
-
5581314M BRACKET, LOCKOUT CABLEBRACKET, LOCKOUT CABLE
-
5610-82436M BOLT, CABLE BRACKET ATTACHINGBOLT, CABLE BRACKET ATTACHING
-
5754-82041M CLAMPCLAMP
