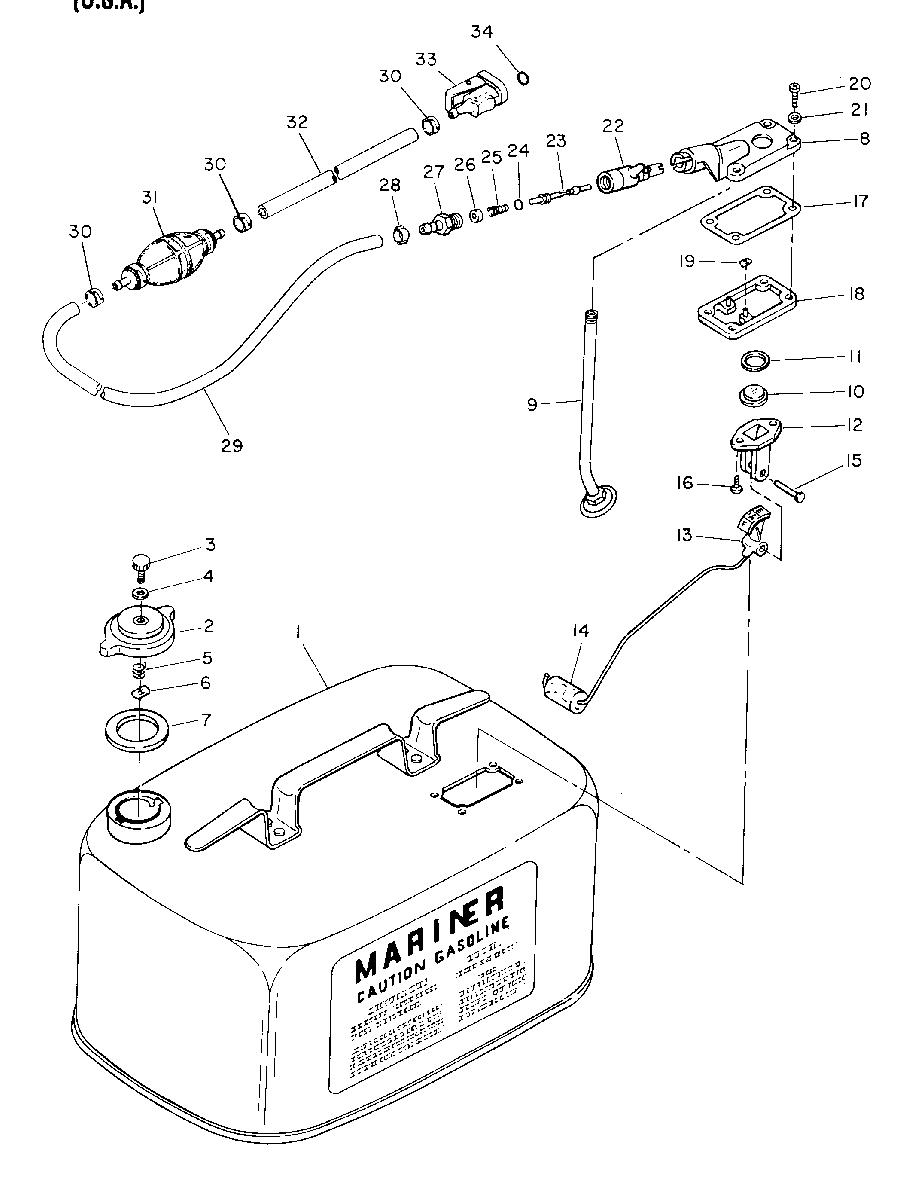

FUEL TANK (U.S.A.) для Mariner - 48 670-02640 AND BELOW

№

Артикул

Название
0-1

1259-812410A1 FUEL TANK COMPLETE

FUEL TANK COMPLETE

4 920 ₽
1

1259-812410A1 FUEL TANK, (6 GALLON)

FUEL TANK, (6 GALLON)

4 920 ₽
2

36-18962M FILLER CAP ASSEMBLY

FILLER CAP ASSEMBLY

3 650 ₽
3

10-25575 SCREW, VENT - FILLER CAP

SCREW, VENT - FILLER CAP

0 ₽
4

12-49221 WASHER, VENT SCREW

WASHER, VENT SCREW

90 ₽
5

24-22227 SPRING, TENSION - VENT SCREW

SPRING, TENSION - VENT SCREW

0 ₽
6

11-28587 NUT, SPEED - SPRING RETAINER

NUT, SPEED - SPRING RETAINER

0 ₽
7

27-41065 GASKET, FILLER CAP TO FUEL TANK

GASKET, FILLER CAP TO FUEL TANK

640 ₽
8

17792A1 COVER ASS'Y, FUEL TANK (1/4-18 TAPPED HOLE)

COVER ASS'Y, FUEL TANK (1/4-18 TAPPED HOLE)

0 ₽
9

32-75239 TUBE ASS'Y, (1/4-18 CONNECTOR - 1/2" TUBE) (#32-75239)

TUBE ASS'Y, (1/4-18 CONNECTOR - 1/2" TUBE) (#32-75239)

3 270 ₽
10

98542A1 LENS ASSEMBLY, FUEL GAUGE

LENS ASSEMBLY, FUEL GAUGE

0 ₽
11

98542A1 GASKET, FUEL GAUGE LENS

GASKET, FUEL GAUGE LENS

0 ₽
12

20430 RETAINER, FUEL GAUGE

RETAINER, FUEL GAUGE

0 ₽
13

28897A1 INDICATOR AND FLOAT ASSEMBLY

INDICATOR AND FLOAT ASSEMBLY

0 ₽
14

99274 FLOAT, FUEL GAUGE

FLOAT, FUEL GAUGE

0 ₽
15

17-20426 RIVET, INDICATOR TO RETAINER

RIVET, INDICATOR TO RETAINER

0 ₽
16

10-62568 SCREW, RETAINER TO FUEL TANK COVER (5/16")

SCREW, RETAINER TO FUEL TANK COVER (5/16")

70 ₽
17

27-28862 GASKET, COVER ASSEMBLY TO FRAME

GASKET, COVER ASSEMBLY TO FRAME

510 ₽
18

28860 FRAME, RETAINING - FUEL TANK COVER

FRAME, RETAINING - FUEL TANK COVER

0 ₽
19

11-28903 FASTENER, RETAINING FRAME TO FUEL TANK

FASTENER, RETAINING FRAME TO FUEL TANK

300 ₽
20

10-20411 SCREW, FUEL TANK COVER TO FUEL TANK

SCREW, FUEL TANK COVER TO FUEL TANK

0 ₽
21

12-29070 WASHER, FUEL TANK COVER FASTENING SCREW

WASHER, FUEL TANK COVER FASTENING SCREW

0 ₽
22

30185Q3 BODY, BAYONET ASS'Y

BODY, BAYONET ASS'Y

7 310 ₽
23

30185Q3 STEM, BAYONET BODY

STEM, BAYONET BODY

7 310 ₽
24

25-16524 O-RING, BAYONET BODY STEM

O-RING, BAYONET BODY STEM

120 ₽
25

24-30189 SPRING, BAYONET BODY STEM

SPRING, BAYONET BODY STEM

220 ₽
26

30188 WASHER, CAP BAYONET BODY SPRING

WASHER, CAP BAYONET BODY SPRING

120 ₽
27

22-63187 FITTING, FUEL LINE (TANK END)

FITTING, FUEL LINE (TANK END)

1 040 ₽
28

54-55206 CLAMP, HOSE TO BAYONET BODY ASS'Y

CLAMP, HOSE TO BAYONET BODY ASS'Y

320 ₽
29

32-94727M HOSE, FUEL TANK TO PRIMER BULB

HOSE, FUEL TANK TO PRIMER BULB

2 200 ₽
30

54-16725M CLAMP, HOSE

CLAMP, HOSE

190 ₽
31

89396Q01 PRIMER BULB, FUEL LINE

PRIMER BULB, FUEL LINE

1 650 ₽
32

32-94727M HOSE, PRIMER BULB TO FUEL CONNECTOR

HOSE, PRIMER BULB TO FUEL CONNECTOR

2 200 ₽
33

22-14213Q HOUSING ASS'Y, FUEL CONNECTOR

HOUSING ASS'Y, FUEL CONNECTOR

2 450 ₽
34

25-82789M O-RING

O-RING

350 ₽
