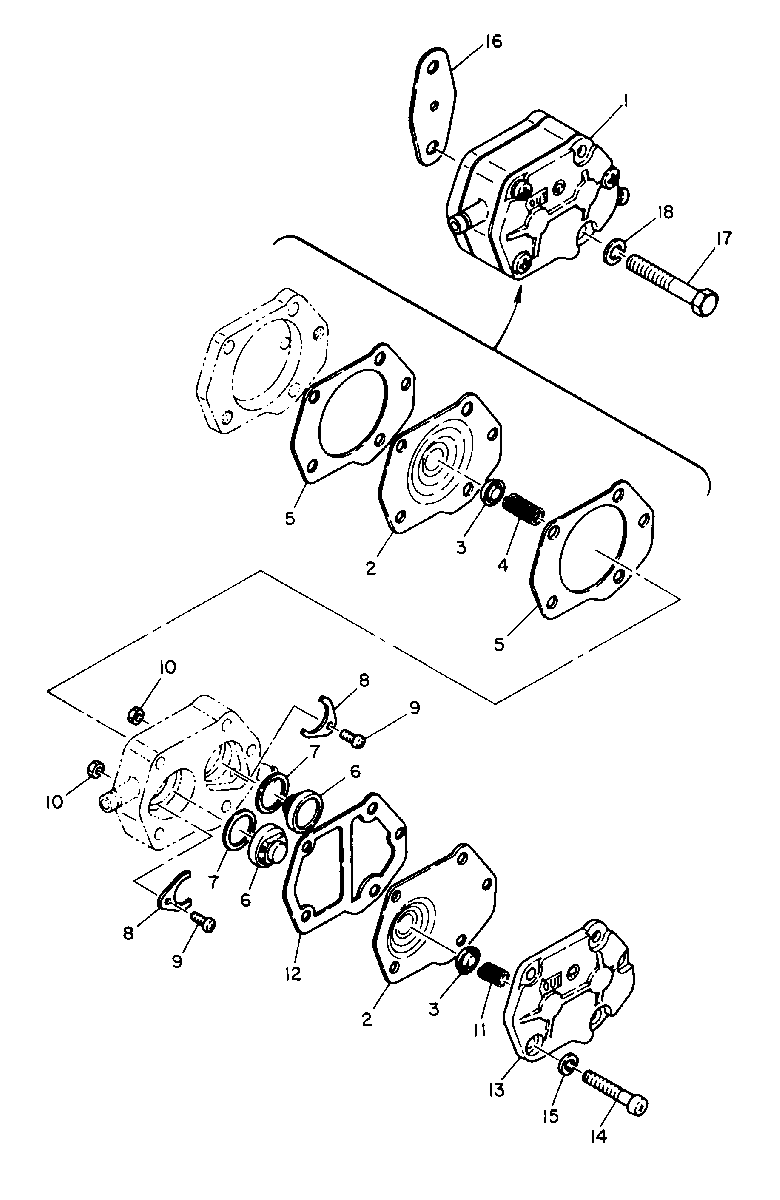

FUEL PUMP для Mariner - 48 670-34580 AND BELOW
-
№АртикулНазвание
-
143113T FUEL PUMP ASS'YFUEL PUMP ASS'Y
-
280606M DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
380611M PLATE, SPRING GUIDEPLATE, SPRING GUIDE
-
424-80610M SPRING, FUEL PUMP DIAHRAGMSPRING, FUEL PUMP DIAHRAGM
-
527-80613 GASKET, BODY TO BASEGASKET, BODY TO BASE
-
621-80608M CHECK VALVE, FUEL PUMPCHECK VALVE, FUEL PUMP
-
727-80612M GASKET, CHECK VALVEGASKET, CHECK VALVE
-
880609M RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
910-82511M SCREW, RETAINER ATTACHINGSCREW, RETAINER ATTACHING
-
1011-82537M NUT, RETAINER SCREWNUT, RETAINER SCREW
-
111587-8615M SPRING, FUEL PUMP DIAPHRAGMSPRING, FUEL PUMP DIAPHRAGM
-
1227-80614 GASKET, BODY TO COVERGASKET, BODY TO COVER
-
1380607M COVER, FUEL PUMPCOVER, FUEL PUMP
-
1410-82522M SCREW, COVER ATTACHINGSCREW, COVER ATTACHING
-
1513-82186M LOCWASHER, COVER SCREWLOCWASHER, COVER SCREW
-
1627-80757 GASKET, FUEL TO CRANKCASEGASKET, FUEL TO CRANKCASE
-
1710-827043M BOLT, FUEL PUMP ATTACHINGBOLT, FUEL PUMP ATTACHING
-
1812-82213M WASHER, FUEL - PUMP BOLTWASHER, FUEL - PUMP BOLT
